Cisco Video Surveillance 8620/8630 IP
Camera Reference Guide
Chapter
1 Getting
Started

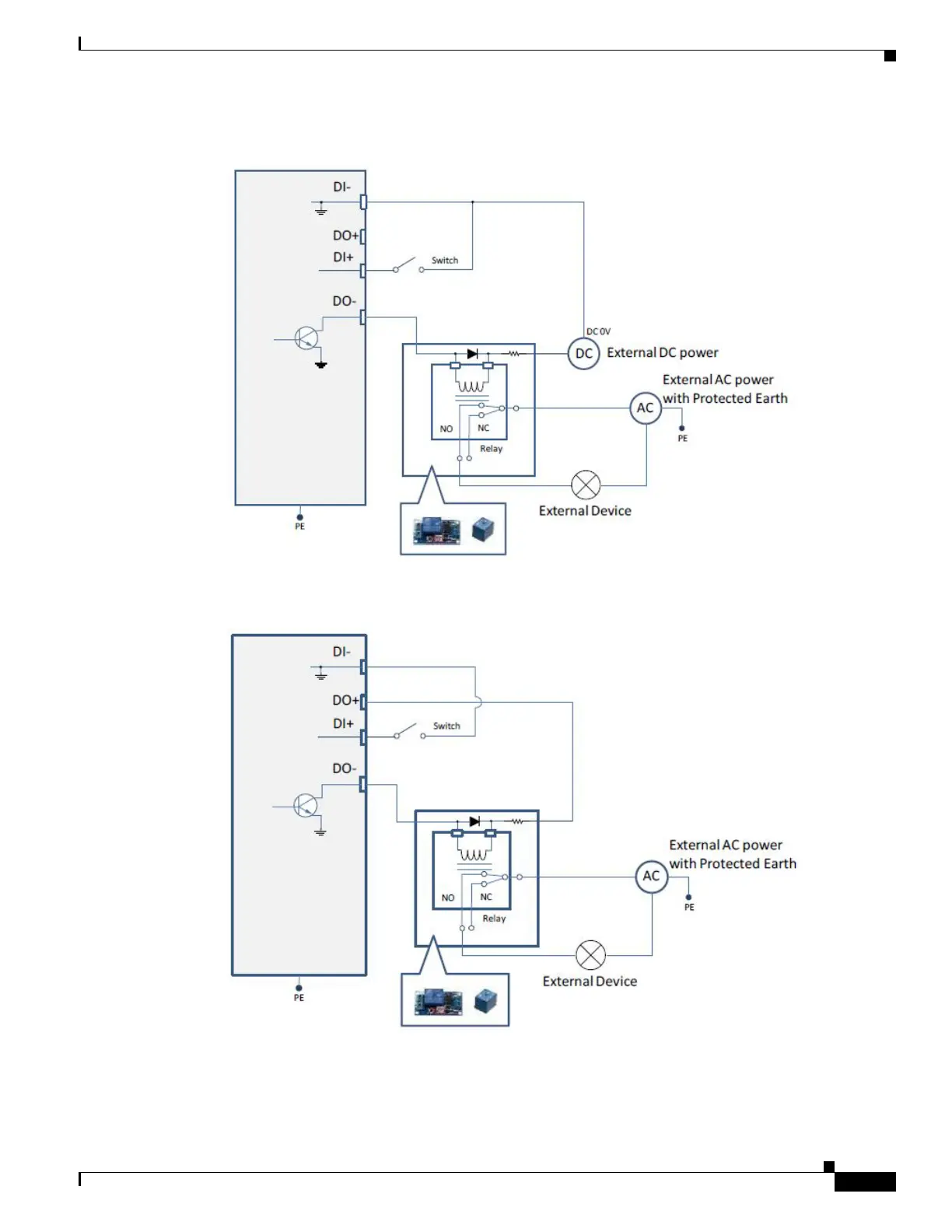

DI/DO Diagram
The following figu
re shows wet contact wit
h external DC power source to supply
a relay
The following figu
re shows dry Contact a
nd Using Camera DO+ t
o Supply a Relay
26
28
