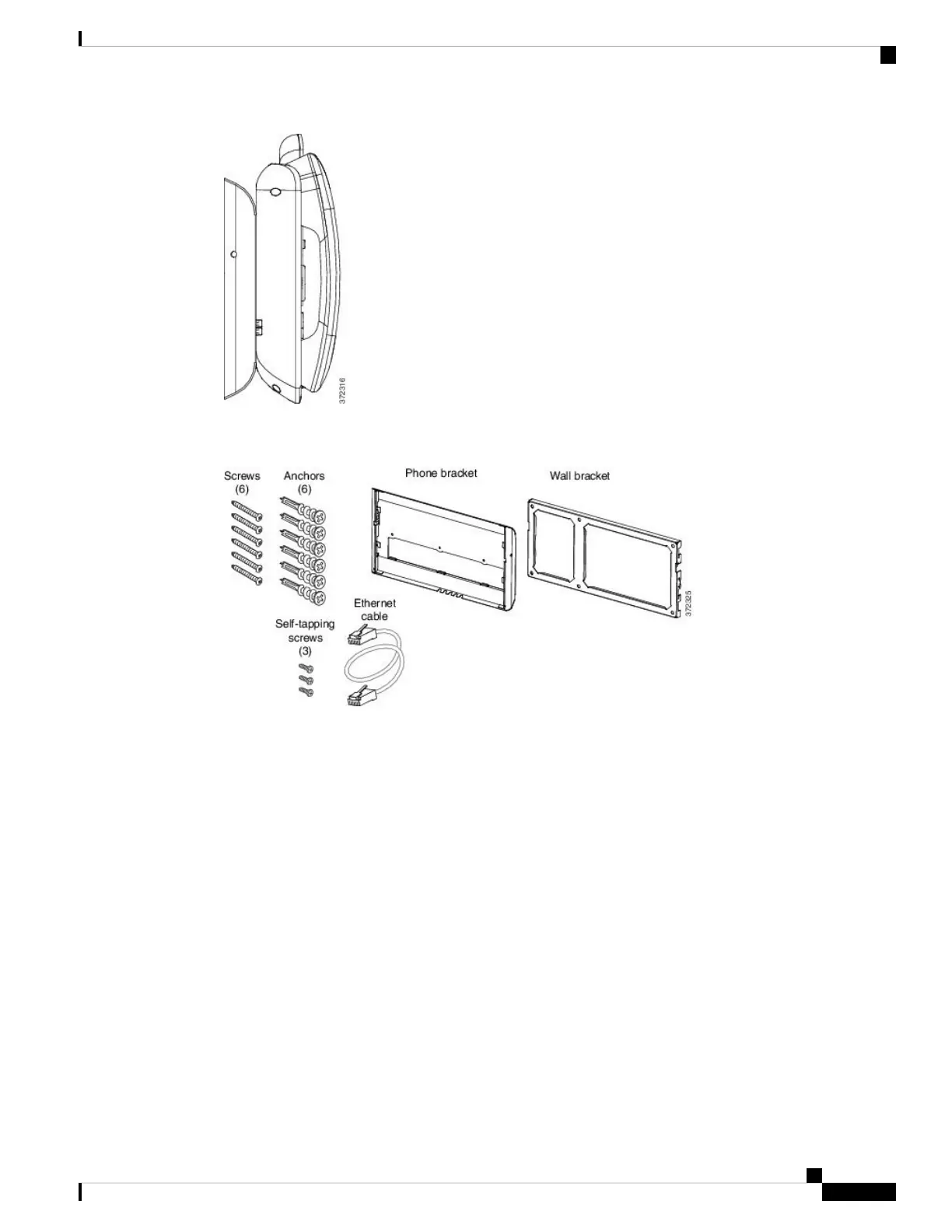

The following figure shows the components of the Cisco IP Phone 8800 Series Wall Mount Kit with Single
KEM.
The package contains the following items:
• One phone bracket
• One wall bracket
• Six #8-18 x 1.25-inch Phillips-head screws with six anchors
• Three K30x8mm self-tapping screws
• One 6-inch Ethernet cable
Install Non-Lockable Wall Mount Kit for Phone with Key Expansion Module
The wall mount kit can be mounted on most surfaces, including concrete, brick, and similar hard surfaces.
To mount the kit on concrete, brick, or similar hard surfaces, you must provide the appropriate screws and
anchors for your wall surface.
Before you begin
You need these tools to install the bracket:
Cisco IP Phone 8800 Series Multiplatform Phones Administration Guide
131
Hardware and Accessory Installation
Install Non-Lockable Wall Mount Kit for Phone with Key Expansion Module
