Cisco 8845 Administration Guide

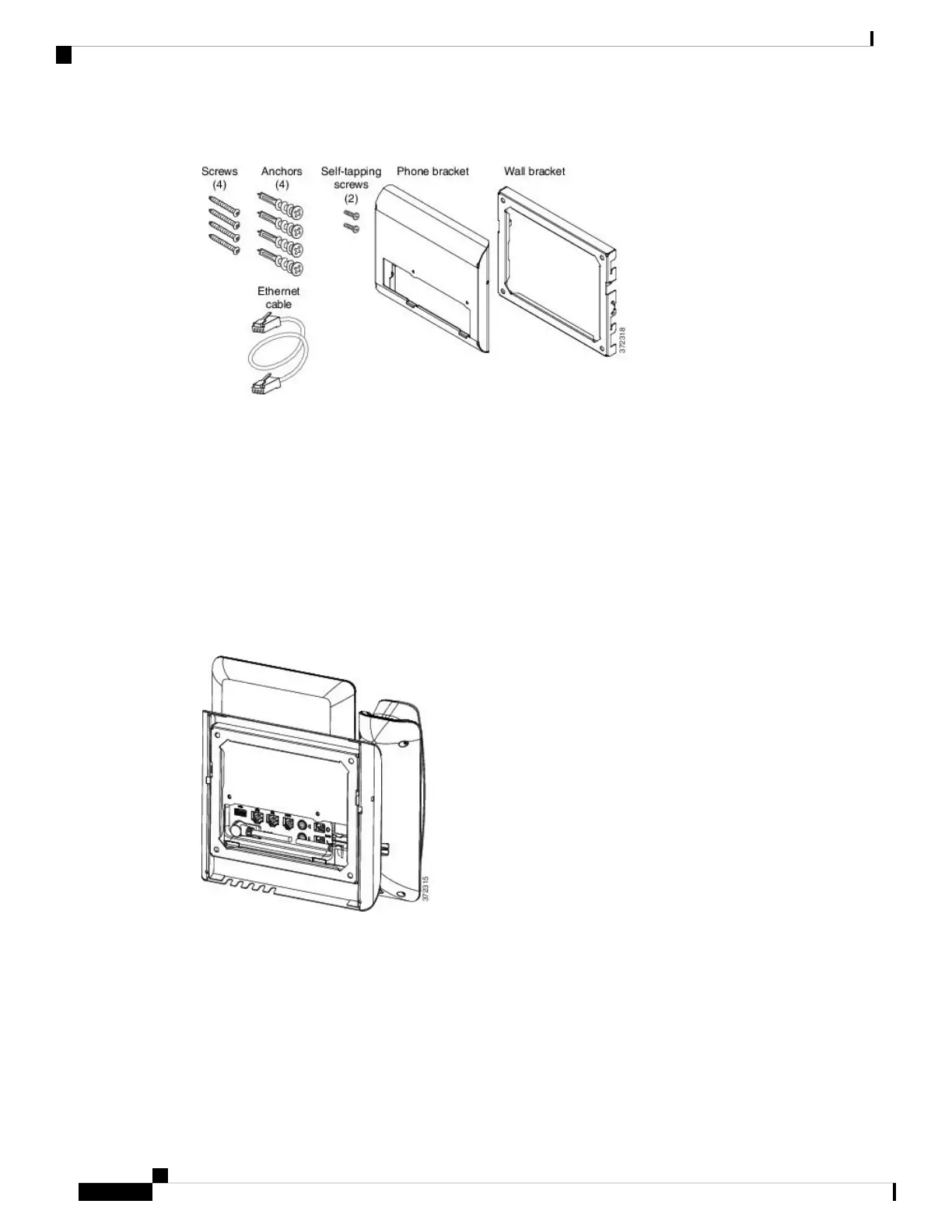

Figure 7: Components
The package contains the following items:
• One phone bracket
• One wall bracket
• Four #8-18 x 1.25-inch Phillips-head screws with four anchors
• Two K30x8mm self-tapping screws
• One 6-inch Ethernet cable
The following figure shows the wall mount kit installed on the phone.
Figure 8: Back view of Wall Mount Kit Installed on Phone
The following figure shows the phone with the wall mount kit from the side.
Cisco IP Phone 8800 Series Multiplatform Phones Administration Guide
124
Hardware and Accessory Installation
Non-Lockable Wall Mount Components

Cisco 8845 Specifications

General

Camera	No
Audio	Wideband audio
Speakerphone	Yes
Wi-Fi	No
Display	5-inch color display
Resolution	480 x 272 pixels
Ethernet	10/100/1000 Mbps
PoE	IEEE 802.3af/at
Protocols	SIP
Codecs	G.711, G.722, G.729a, iLBC
USB Ports	2 x USB 2.0
