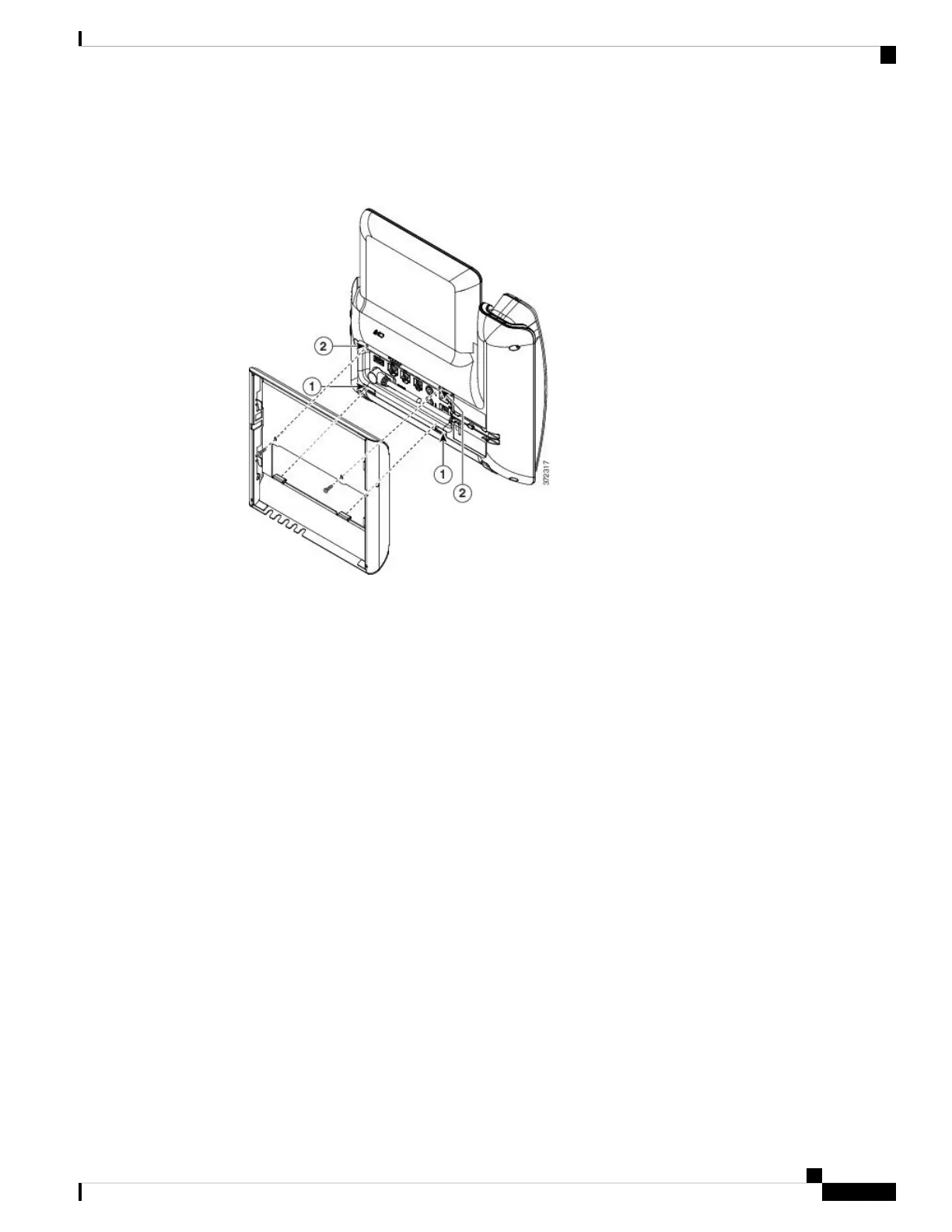

Figure 11: Attach Phone Bracket
The following figure shows how the bracket attaches to the phone.
Step 3 Attach the cables to the phone:
a) Attach the Ethernet cable to the 10/100/1000 SW network port and wall jack.
b) (Optional) If you are connecting a network device (such as a computer) to the phone, attach the cable to
the 10/100/1000 Computer (PC access) port.
c) (Optional) If you are using an external power supply, plug the power cord into the phone and dress the
cord by clipping it into the clips that are incorporated into the phone body next to the PC port.
d) (Optional) If the cables terminate inside the wall bracket, connect the cables to the jacks.
Cisco IP Phone 8800 Series Multiplatform Phones Administration Guide
127
Hardware and Accessory Installation
Install the Non-Lockable Wall Mount Kit for Phone
