Cisco Integrated Services Router Hardware Installation Guide
Chapter 1 Product Overview
Cisco 860, 880, 890 Series

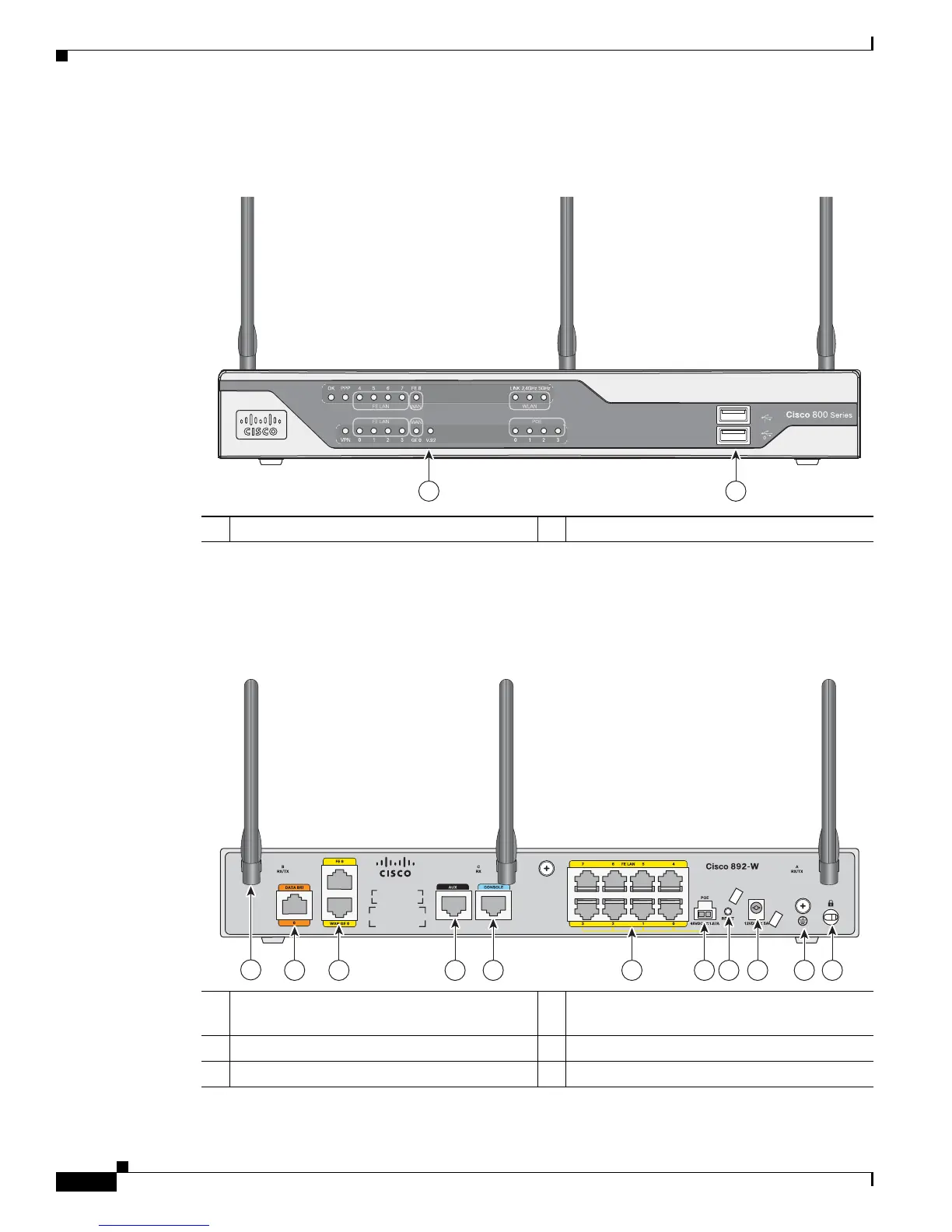

Figure 1-56 shows the front panel details of the Cisco 890 Series router.
Figure 1-56 Front Panel of the Cisco 890 Series ISR

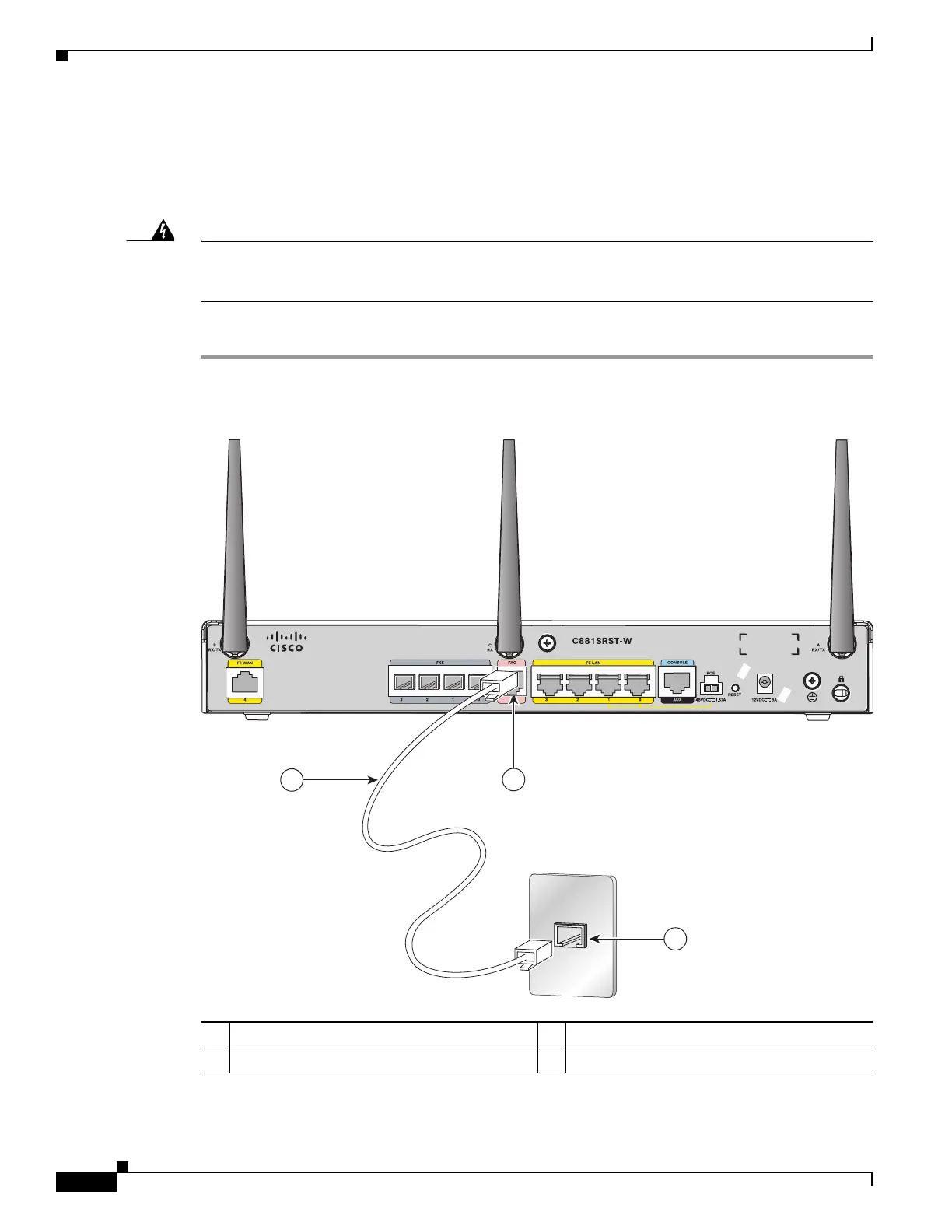

Figure 1-57 shows the back panel details of the Cisco 892W router. Non wireless routers do not have
RP-TNC antennas or connectors on the back panel. Some of the features that are shown may not be
available on your router. However, the feature locations are similar across all Cisco 890 series routers.
Figure 1-57 Back Panel of the Cisco 892W Router
1 LEDs 2 USB ports
272367
1 2
1 Antenna—Dipole swivel antenna attached to
RP-TNC connectors (wireless models only)
7 PoE power connector for optional PoE
module
1
2 Backup—Data BRI
2
or V.92
3
port 8 Reset button
3 Primary WAN port—FE and GE 9 Power connector
272369
1
4 5 6 8 9 10 1172 3

Cisco 890 Series Specifications

General

Brand	Cisco
Model	890 Series
Category	Network Router
Language	English
