Chapter 1 Product Overview
Cisco 880 Series ISRs

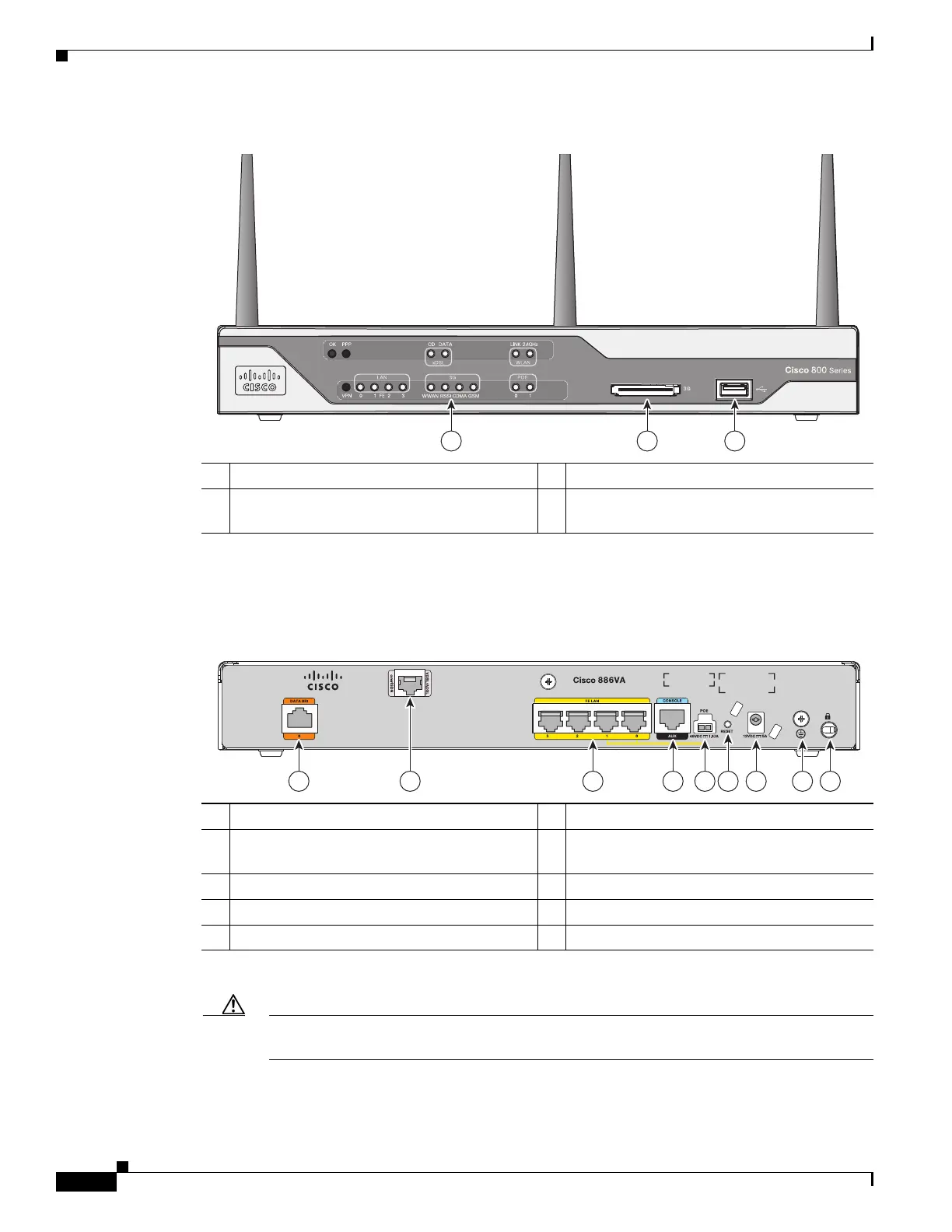

Figure 1-8 Front Panel of the Cisco 880 Series Wireless Data Router
Figure 1-9 shows the back panel details of the Cisco 886VA data router.
Figure 1-9 Back Panel of the Cisco 886VA Router
1 LEDs 3 USB port
2 3G express card slot—Supports third-party
1
3G card (Cisco 880G models only)
1. See the Cisco 880 Series Integrated Services Routers data sheet for supported vendors.
1 Data BRI
1
0 6 Reset button
2 Primary WAN port—VDSL/ADSL over
ISDN
7 Power connector
3 4-port 10/100 Ethernet switch
2
8 Earth ground connection
4 Serial port—console or auxiliary 9 Kensington security slot
5 PoE power connector—optional
1. BRI = Basic rate interface.
2. Ports 0 and 1 provide PoE with the optional PoE module installed.
Caution The primary WAN port is designed for an RJ-45 connector only. Damage to the primary WAN
port may occur if a non-RJ-45 connector is inserted.
