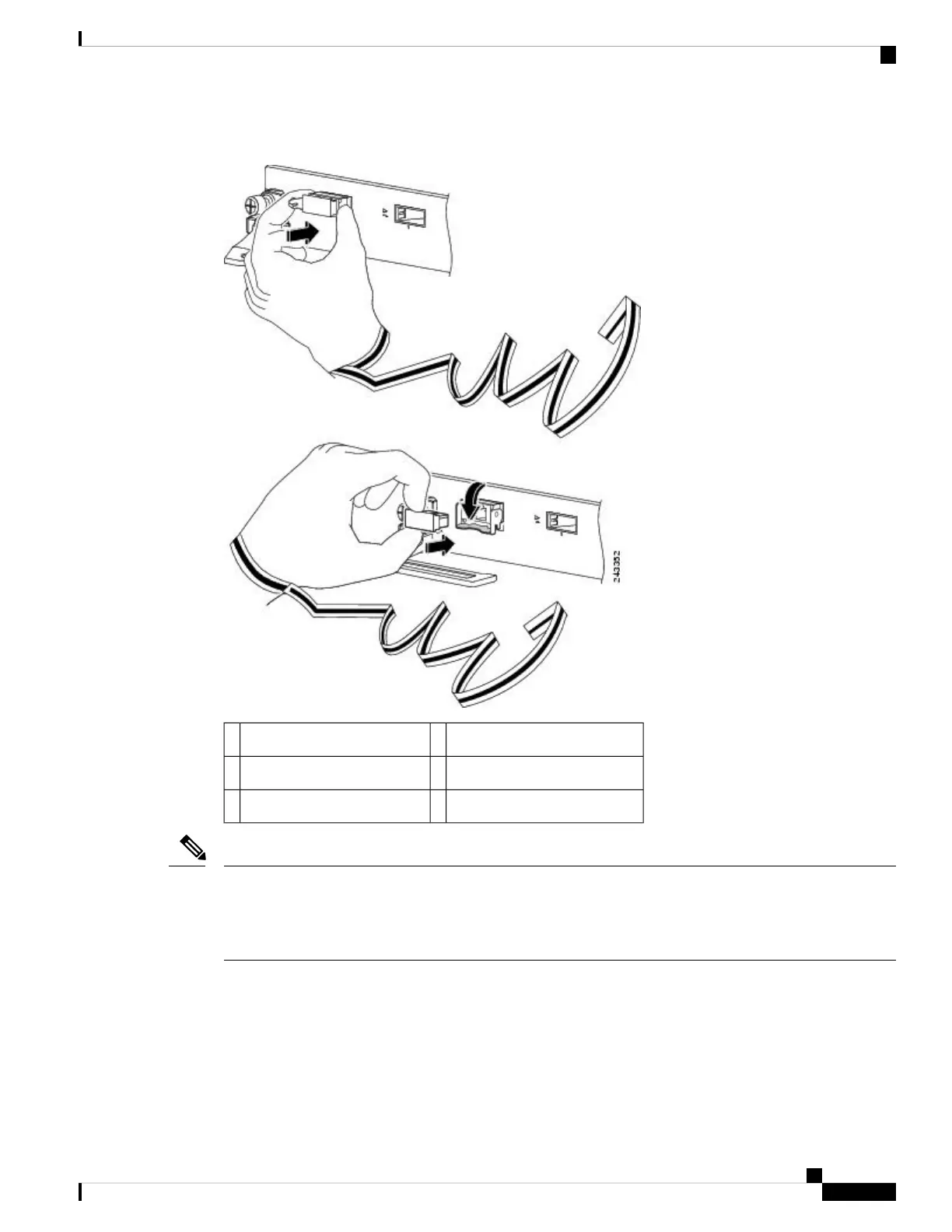

Figure 61: 10-Gigabit Ethernet XFP Transceiver Module
Bale clasp (locked position)4Transmit optical bore1
Dust plug5Receive optical bore2
Bale clasp (unlocked position)6Transceiver socket connector3
The dual LC connector on the XFP transceiver modules supports network interface cables with either Physical
Contact (PC) or Ultra-Physical Contact (UPC) polished face types. The dual LC connector on the XFP
transceiver modules does not support network interface cables with an Angle Polished Connector (APC)
polished face type.
Note
Cisco ASR 9000 Series Aggregation Services Router Ethernet Line Card Installation Guide
107
Installing and Removing Line Cards and Transceiver Modules
Installing and Removing XFP Modules
