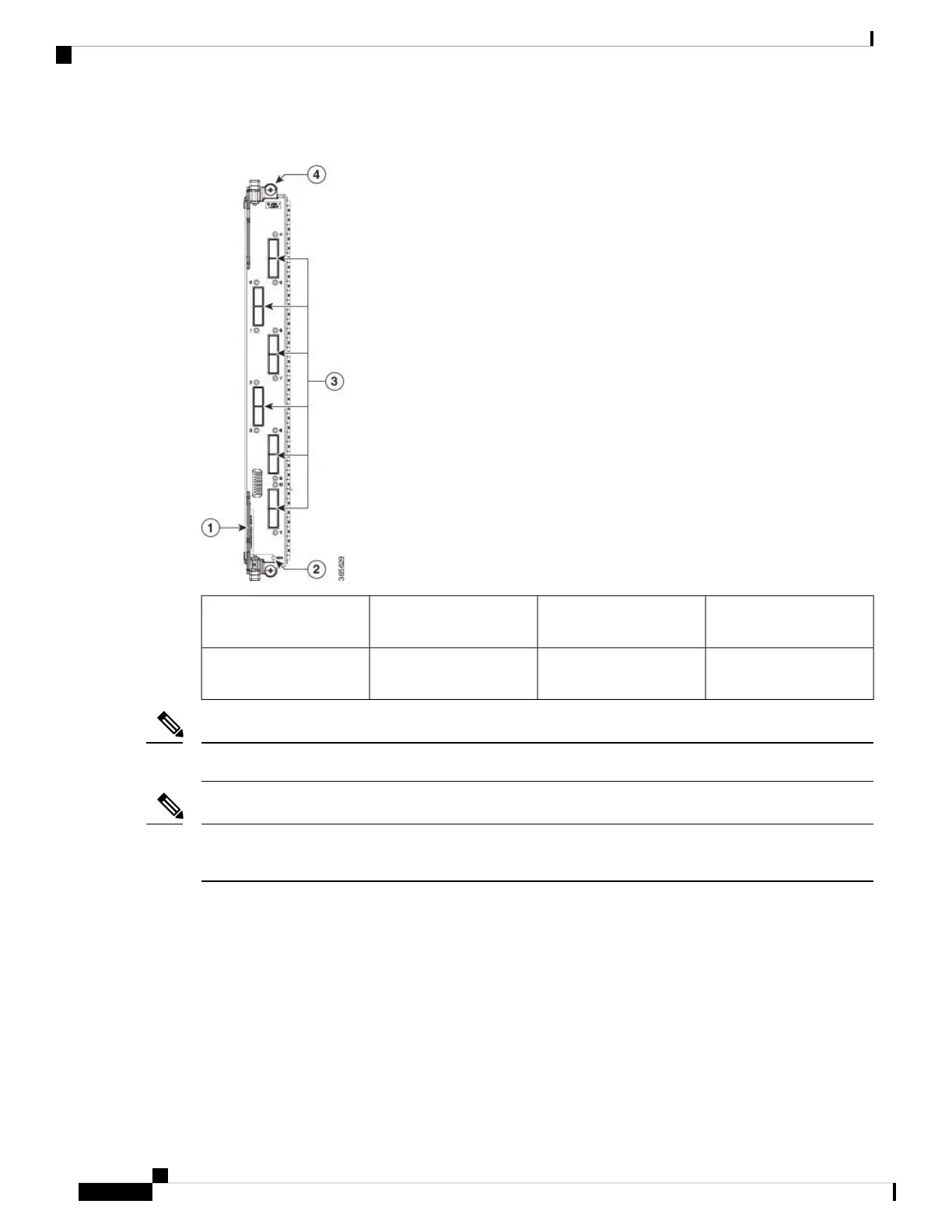

Figure 19: 12-Port 100-Gigabit Ethernet Line Card with QSFP28
Twelve 100GE QSFP28
connectors
3Ejector lever (one of two)1
Captive installation screw
(one of two)
4Status LED2
The 12-port 100-Gigabit Ethernet Line card with QSFP28 is also supported on IOS XR 64-bit environment.
Note
If the 12-port 100GE line card is inserted in a chassis, it is important to use filler panels that have two screens
[A9K-LC-FILR-V2]. This ensures optimal cooling and EMI.
Note
IPoDWDM Ethernet Line Cards
2-Port 100G + 20-Port 10-Gigabit Ethernet Combination IPoDWDM Line Card
with CFP2 and SFP+
The 2-Port 100G + 20-Port 10-Gigabit Ethernet Combination IPodWDM Line Card with CFP2 and SFP+
provides two double stacked 2x5 cage assemblies (total 20 ports) for SFP+ Ethernet optical interface modules
