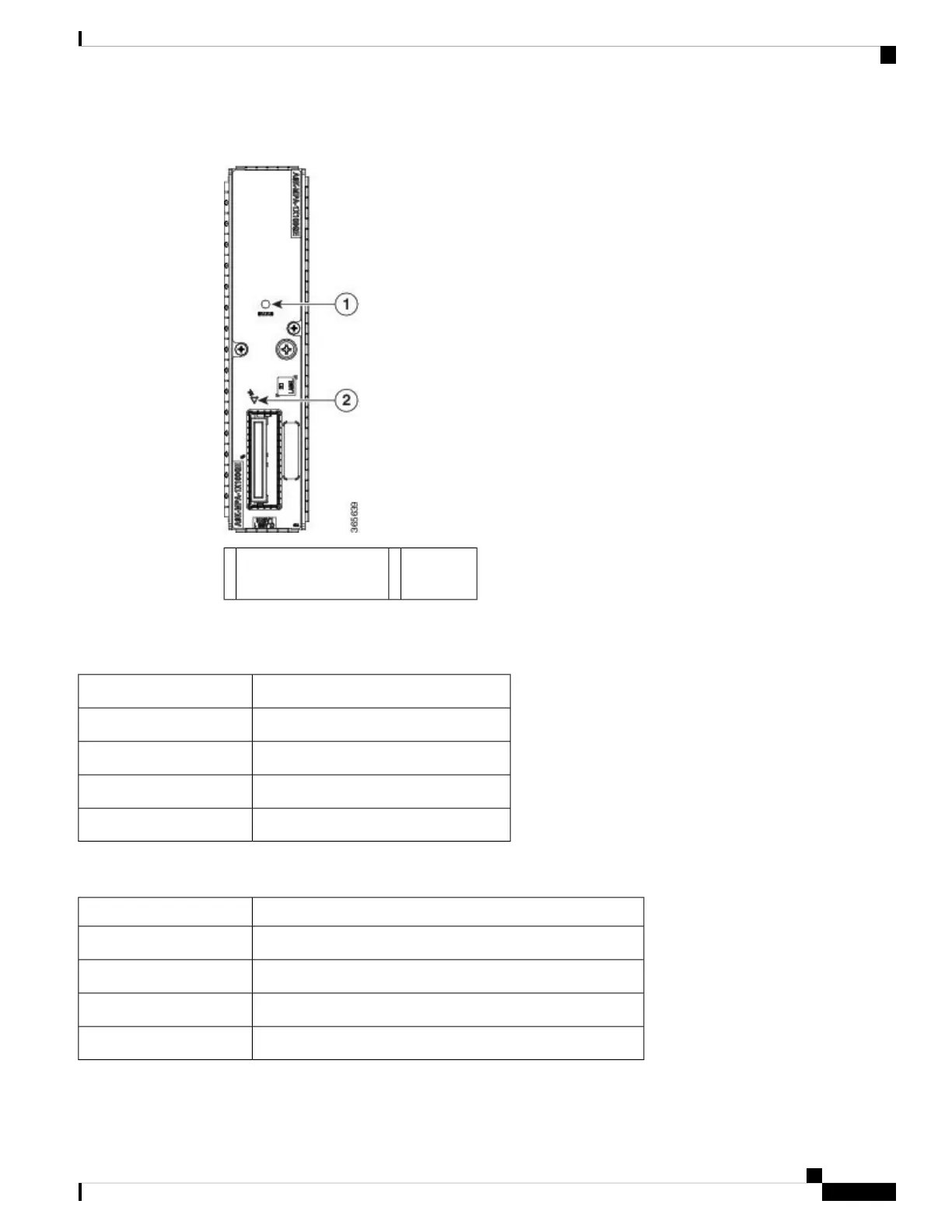

Figure 22: 1-Port 100-Gigabit Ethernet Modular Port Adapter with CFP2
Status
LED
2A/L (Active/Link) LED1
The following table shows the LED behavior when interface type is 100G breakout is configured:
Table 12: LED Behavior When Interface Type is 100G
StatusPort LED State
Port is shutdown.Off
100G interface is in down state.Red
100G interface is in up state.Green
100G interface is up and carrying traffic.Blinking Green and Amber
Table 13: LED Behavior When Breakout is Configured
StatusPort LED State
Ports are shutdown.Off
Link is down for at least one of the enabled ports.Red
At least one port is enabled and link is up on all enabled ports.Green
At least one port is enabled and link is up on all enabled ports.Blinking Green and Amber
Cisco ASR 9000 Series Aggregation Services Router Ethernet Line Card Installation Guide
47
Overview
1-Port 100-Gigabit Ethernet Modular Port Adapter with CFP2

Cisco A9K-MOD400-TR Specifications

General

Brand	Cisco
Model	A9K-MOD400-TR
