The MPA provides one port of CFP2-DCO transceiver that can operate at 100GE (included) or 200GE with
the CFP2-LIC-UPG-200G upgrade license. The 200GE rate is supported by combining two 100G Interfaces
at the back end requiring two separate MAC/IP addresses to be assigned.
The CFP2 Digital Coherent Optics (DCO) are supported with the following hardware versions (VID):
MPA Hardware Version
(VID)
MPA PIDLine Card PID
V00A9K-MPA-1x200GEA9K-MOD200-TR
A9K-MOD200-SE
A9K-MOD400-TR
A9K-MOD400-SE
Note
The CFP2 cage on the MPA has two adjacent A/L (Active/Link) LEDs visible on the front panel. The A/L
LEDs indicates the status of the associated CFP2 port and the Status LED indicates the status of the MPA.

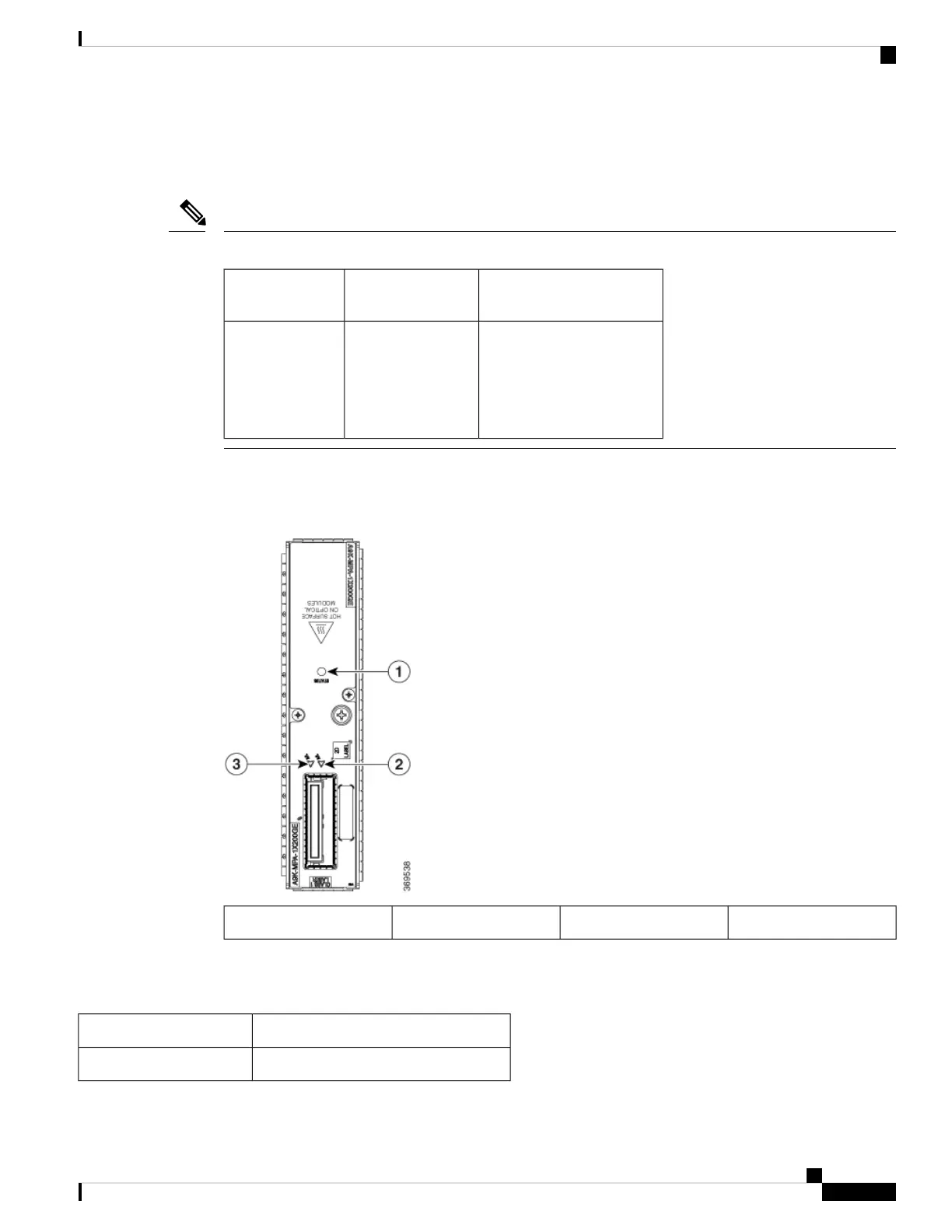

Figure 23: 1-Port 200-Gigabit Ethernet Modular Port Adapter with CFP2-DCO
A/L (Active/Link) LED2 and 3Status LED1
The following table shows the LED behavior when interface type is 100G:
Table 14: LED Behavior When Interface Type is 100G
StatusPort LED State
Port is shutdown.Off
Cisco ASR 9000 Series Aggregation Services Router Ethernet Line Card Installation Guide
49
Overview
1-Port 200-Gigabit Ethernet Modular Port Adapter with CFP2-DCO
