• V02 version of the CFP2-DCO module is introduced. V02 version of the optical module supports Staircase
FEC. Staircase FEC is an industry standard that enables high-speed optical communications. Version ID
information of the optical module can be obtained from the show inventory command output.
• This MPA does not support 1X40 breakout configuration.
• The CFP2 Digital Coherent Optics (DCO) are supported with the following hardware versions (VID):
MPA Hardware Version
(VID)
MPA PIDLine Card PID
V04A9K-MPA-2x100GEA9K-MOD200-TR
A9K-MOD200-SE
A9K-MOD400-TR
A9K-MOD400-SE
V02A9K-MPA-2x100GE-CMA9K-MOD400-CM
Note
Each CFP2 cage on the MPA has an adjacent A/L (Active/Link) LED visible on the front panel. The A/L
LED indicates the status of the associated CFP2 port and the Status LED indicates the status for the MPA.

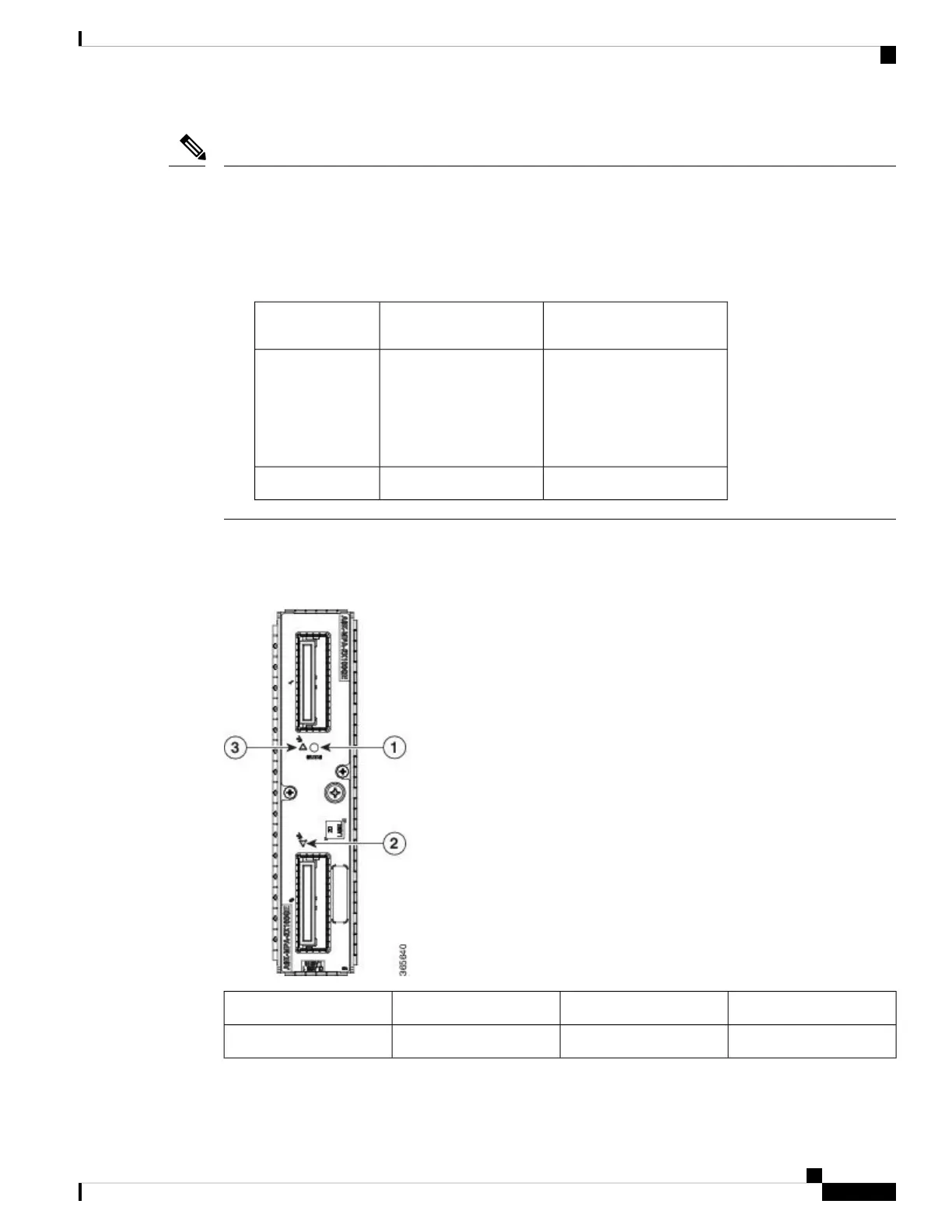

Figure 24: 2-Port 100-Gigabit Ethernet Modular Port Adapter with CFP2
A/L (Active/Link) LED3Status LED1
A/L (Active/Link) LED2
The following table shows the LED behavior when interface type is 100G:
Cisco ASR 9000 Series Aggregation Services Router Ethernet Line Card Installation Guide
51
Overview
2-Port 100-Gigabit Ethernet Modular Port Adapter with CFP2
