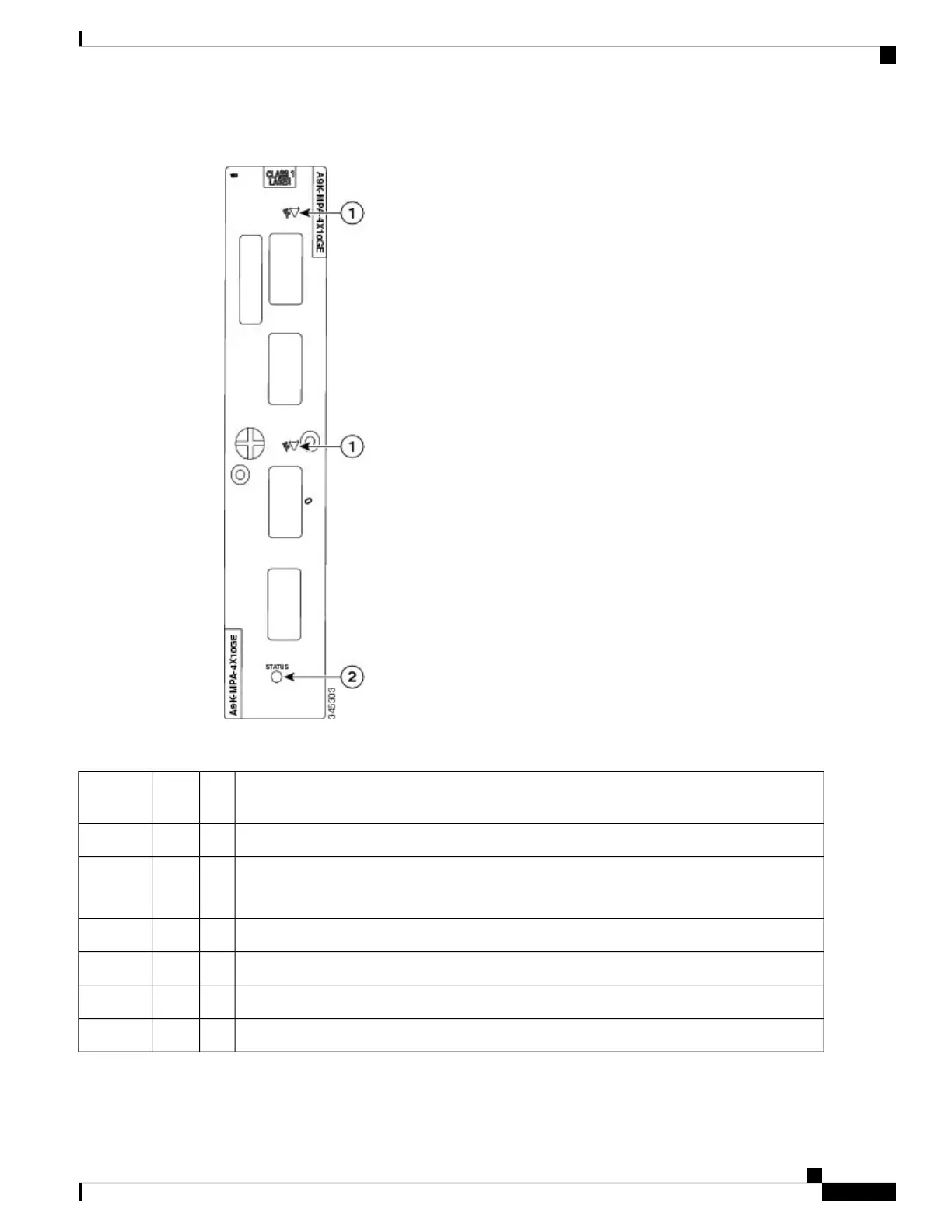

Figure 27: 4-Port 10-Gigabit Ethernet Modular Port Adapter
Table 19: 4-Port 10-Gigabit Ethernet MPA LEDs
MeaningStateColorLED
Label
Port is not enabled.OffOffA/L
Port is enabled and the link is up.
The MPA A/L (Active/Link) LED will blink green and amber when there is traffic activity.
OnGreen
Port is enabled and the link is down.OnAmber
Modular port adapter power is off.OffOffSTATUS
Modular port adapter is ready and operational.OnGreen
Modular port adapter power is on and good, and the modular port adapter is being configured.OnAmber
