Cisco ASR 1002 Quick Start Guide

15

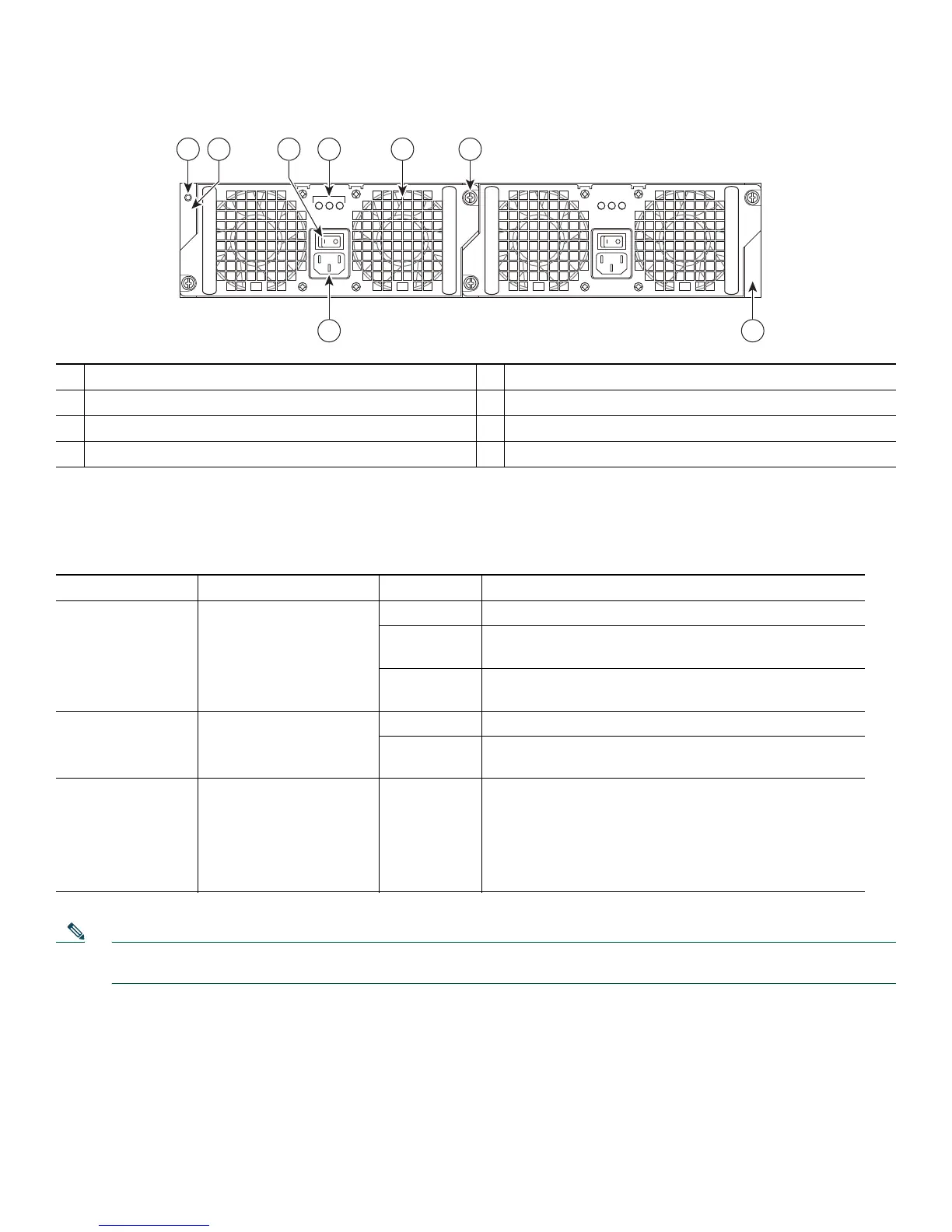

Figure 11 AC Power Supply for the Cisco ASR 1002 Router
Table 1 describes the AC power supply LEDs on the Cisco ASR 1002 Router.
Table 1 Cisco ASR 1002 Router AC Power Supply LEDs
Note To connect an AC power supply to the Cisco ASR 1002 Router, follow the steps in Installing the AC Power Supply,
page 31.
Connect DC Power to the Cisco ASR 1002 Router
The DC power supply input connector is a euro-style terminal block. A means to provide strain relief to the input wires is
provided on the power supply. The connection order is negative (–), positive (+), and GND.
1
Chassis ESD socket
5
AC power supply fan
2
AC power supply slot number 0
6
AC power supply captive installation screw
3
AC power supply On (I) /Off (O) switch
7
AC power supply slot number 1
4
AC power supply LEDs
8
AC power inlet
LED Label LED Color Description
INPUT OK Power supply activity Green The AC power supply input voltage is greater than 85V.
None The AC input voltage is less than 70V or the power
supply is turned off.
Flashing For an AC input voltage between 70V and 85V the
INPUT OK LED can be either on, off, or flashing
FAN OK Power supply fan activity
A bi-color LED indicates
fan status.
Green When all fans are operational.
Red When a fan failure is detected.
OUTPUT FAIL Power supply activity Red LED is off to signal that the DC output voltages are
within the normal operating range. Output voltage
between the minimum and maximum limits will not
create an output fail alarm and output voltages below
the minimum or above the maximum will create an
output fail alarm.
OUTPUT INPUT
FAIL
OK OK
FAN OUTPUT INPUT
FAIL
OK OK
FAN
This unit might have more than
one power supply connection.
All connections must be removed
to de-energize the unit.
This unit might have more than
one power supply connection.
All connections must be removed
to de-energize the unit.
0
1
8 7
280288
41 5 63
2

Cisco ASR 1002 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
DHCP client	-
Supported network protocols	BGP, GRE, OSPF, DVMRP, EIGRP, IS-IS, IGMPv3, PIM-SM, PIM-SSM
Ethernet LAN (RJ-45) ports	4
Security algorithms	SSH
VPN tunnels quantity	8000
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	4096 MB
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	560 W
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %
Product color	Gray
Rack capacity	2U

Weight and Dimensions

Depth	461 mm
Width	437.4 mm
Height	89 mm
Weight	- g
