SUMMARY STEPS
1.
Locate the threaded holes on the side of the chassis. Make certain that you hold the front rack-mount
bracket with the ear and holes facing outward and towards the front of the chassis (see the following
image).
2.
Position the front rack-mount bracket top hole with the chassis first top hole behind the side vent holes
(see Figure 8: Attaching the Front Rack-Mount Brackets to the Cisco ASR 1006 Router, on page 12).
3.
Insert and tighten the black screws on one side.
4.
Repeat Step 1 through Step 3 on the other side of the chassis. Use black screws to secure the rack-mount
brackets to the chassis.
5.
Install the chassis in the rack. To install the Cisco ASR 1006 Router in a rack, go to the Installing the
Cisco ASR 1006 Router in a Rack, on page 15.
DETAILED STEPS
Step 1
Locate the threaded holes on the side of the chassis. Make certain that you hold the front rack-mount bracket with the
ear and holes facing outward and towards the front of the chassis (see the following image).

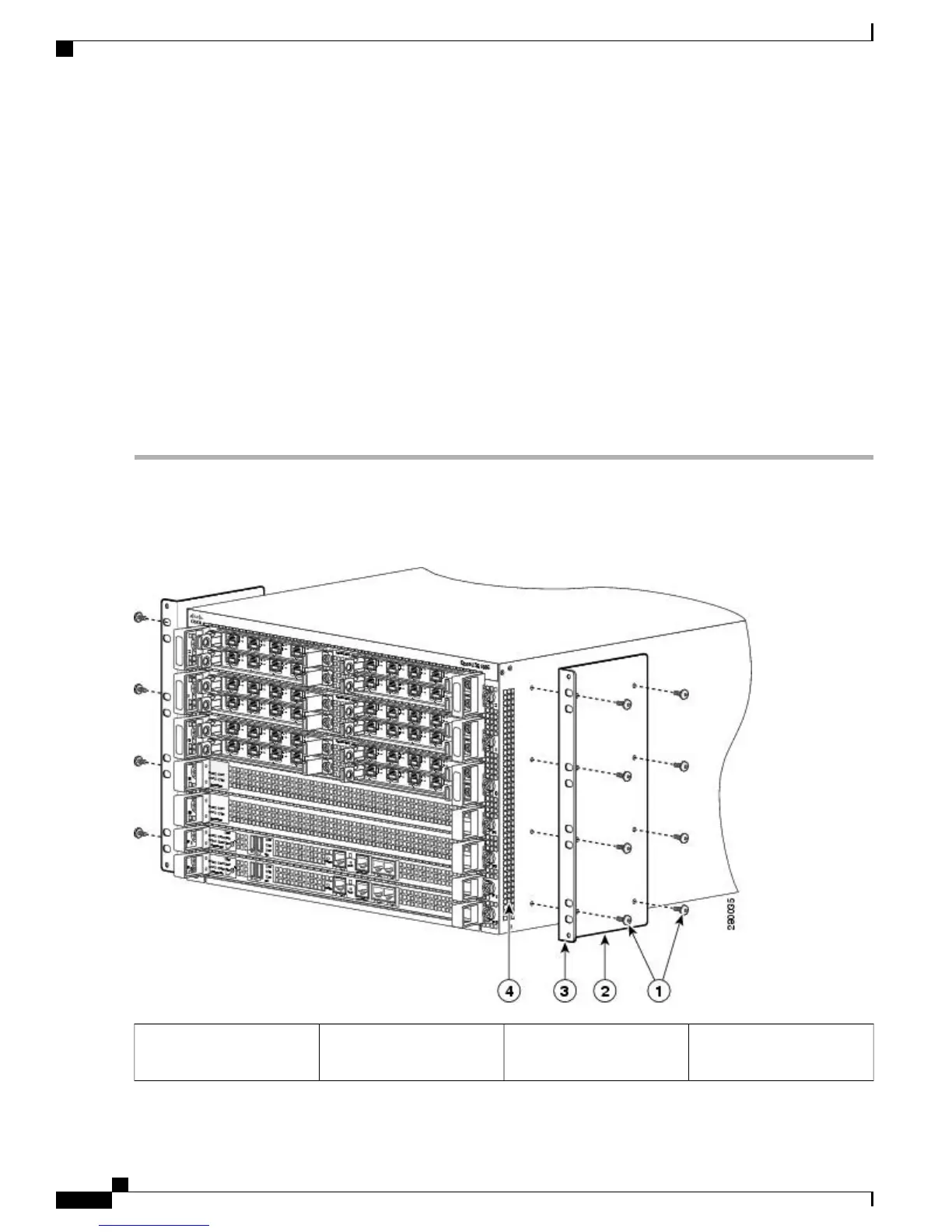

Figure 8: Attaching the Front Rack-Mount Brackets to the Cisco ASR 1006 Router
Front rack-mount bracket ear
and holes
3Front rack-mount bracket
screws
1
Cisco ASR 1000 Series Router Hardware Installation Guide
12
Cisco ASR 1006 Router Overview and Installation
Chassis Front Rack-Mount Brackets
