Connecting the System Cables
Keep the following guidelines in mind when connecting external cables to the Cisco ASR 1006 Router:
•
To reduce the chance of interference, avoid crossing high-power lines with any interface cables.
•
Verify all cabling limitations (particularly distance) before powering on the system.
Attaching Cable Retention Bracket on AC Power Supply
This section explains how to attach the cable retention bracket on AC power supply of the chassis.
The following shows the cable retention bracket attaching to the AC power supply.

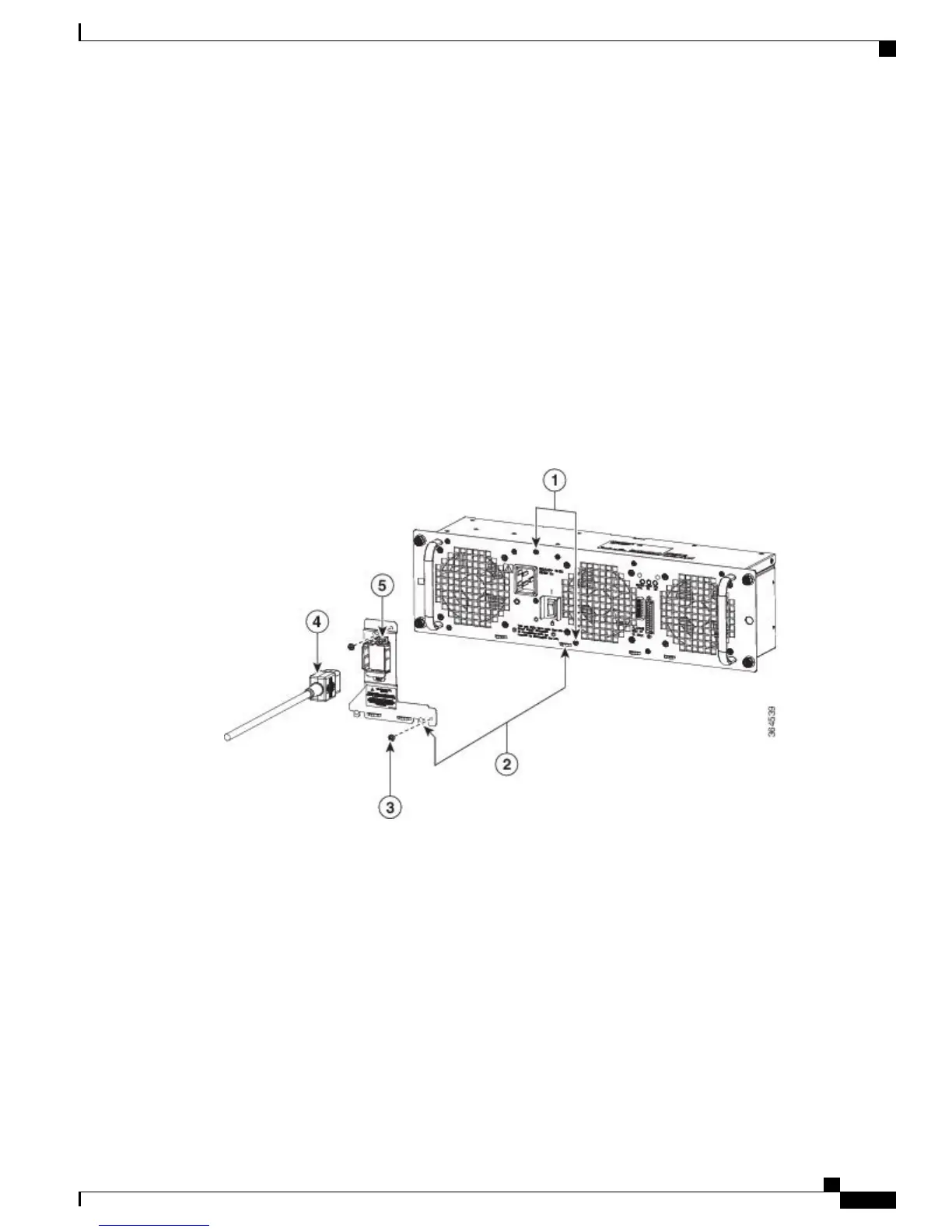

Figure 24: Cable Retention Bracket Attaching to the AC Power Supply
SUMMARY STEPS
1.
Remove the two M3X5mm screws and discard.
2.
Install AC cord retainer by inserting tabs into lance features on panel.
3.
Secure AC cord retainer with two M3X8mm screws included in kit.
4.
Connect AC power cord.
5.
Secure AC cord by tightening retainer screw.
