Cisco ASR 1006 User Manual

•
Three Cisco ASR 1000 Series SPA Interface Processors (SIPs)
•
Twelve SPA slots
•
Two embedded services processors (Cisco ASR1000-ESP10, Cisco ASR1000-ESP20, Cisco
ASR1000-ESP40, or Cisco ASR1000-ESP100)
Cisco ASR1000-ESP40 and Cisco ASR1000-ESP100 are supported on Cisco ASR 1006 Router only if
Cisco ASR1000-RP2 is installed on the router.
Note
•
Two Cisco ASR 1000 Series Route Processors (Cisco ASR1000-RP1 or Cisco ASR1000-RP2
)
•
Dual (redundant) AC and DC power supplies
This section contains the following topics:
Front View
The following image shows the Cisco ASR 1006 Router with modules and filler plates installed.

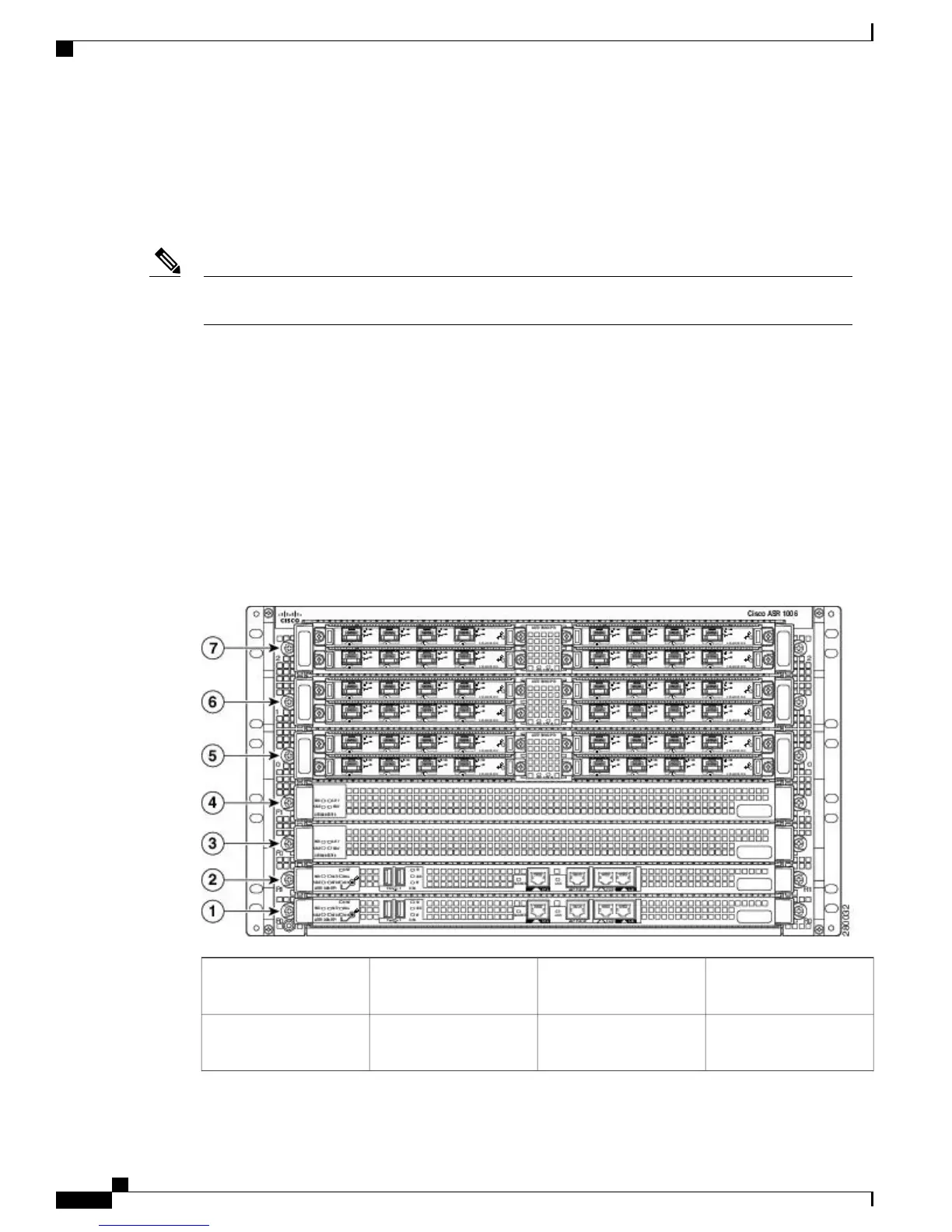

Figure 1: Cisco ASR 1006 Router — Front View
ASR 1000 Series SIP slot
0
5Slot R0 with ASR 1000
Series RP
1
ASR 1000 Series SIP slot
1
6Slot R1 with ASR 1000
Series RP
2
Cisco ASR 1000 Series Router Hardware Installation Guide
2
Cisco ASR 1006 Router Overview and Installation
Front View

Cisco ASR 1006 Specifications

General

Form Factor	Rack-mountable
Slots	6
Redundancy	Yes
Power Supply	Dual, hot-swappable
Product Type	Router
Memory	Up to 16 GB
Redundant Route Processor	Yes
Product Series	ASR 1000 Series
Model	ASR 1006
Power Supply Options	AC or DC
Operating System	Cisco IOS XE
Rack Units	6U
Rack Height	6U
Interfaces/Ports	Varies by configuration
Flash Memory	8 GB
ESP	Embedded Services Processor
Storage	Internal SSD
