Cisco ASR 1006 User Manual

Two-Post Rack Installation
The Cisco ASR 1006 Router can be installed in a two-post rack, either 19 inch or 23 inch. The following
image shows the router installed on a two-post rack.

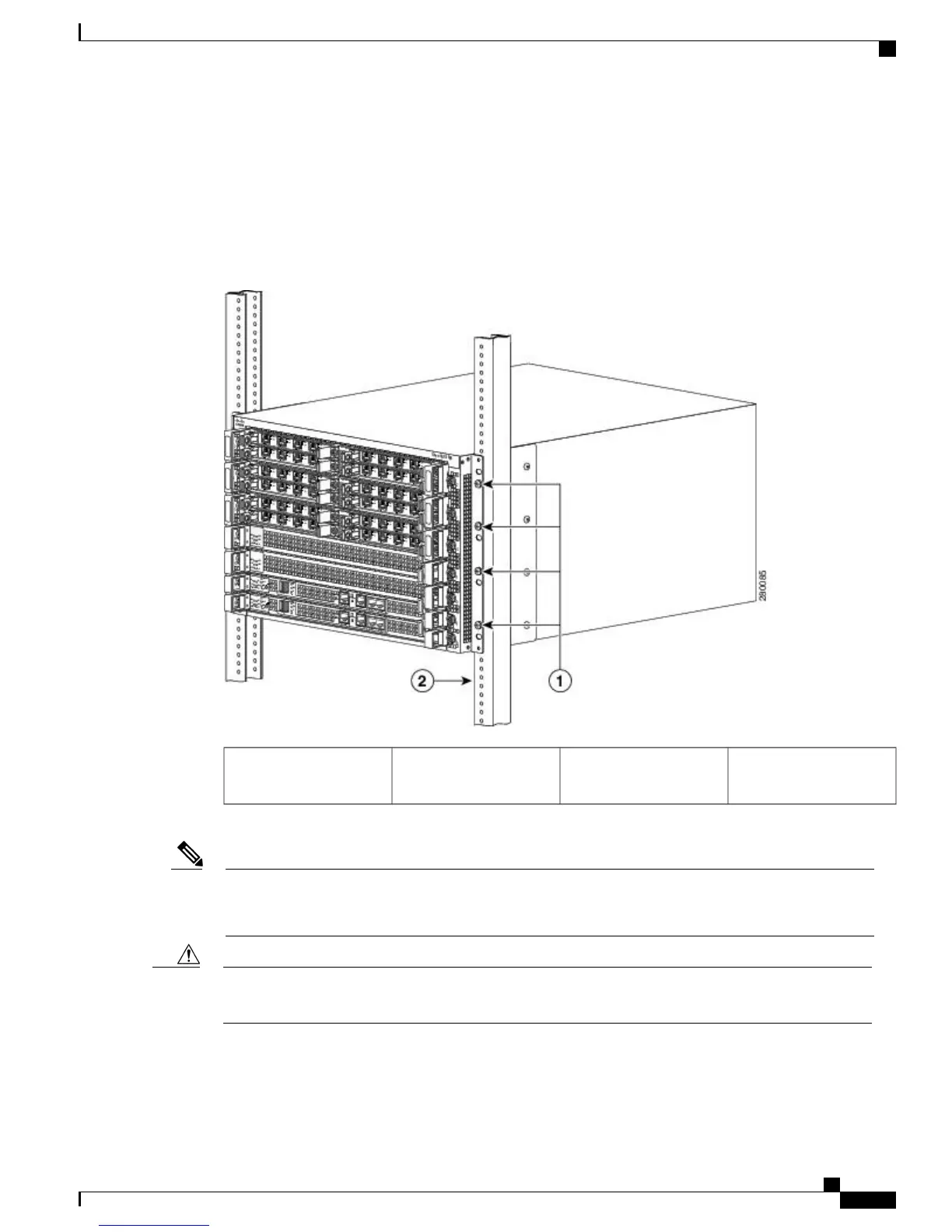

Figure 10: Installing the Cisco ASR 1006 Router in a Two-Post Equipment Rack
Two-post equipment rack
rail
2Cisco ASR 1006 Router
front rack-mount bracket
1
Inner clearance (the width between the inner sides of the two posts or rails) must be at least 19 inches
(48.26 cm). The height of the chassis is 10.45 inches (26.543 cm). Airflow through the chassis is from
front to back.
Note
If you are using a two-post rack secure the rack to the floor surface to prevent tipping and avoid bodily
injury and component damage.
Caution
Cisco ASR 1000 Series Router Hardware Installation Guide
17
Cisco ASR 1006 Router Overview and Installation
Two-Post Rack Installation

Cisco ASR 1006 Specifications

General

Form Factor	Rack-mountable
Slots	6
Redundancy	Yes
Power Supply	Dual, hot-swappable
Product Type	Router
Memory	Up to 16 GB
Redundant Route Processor	Yes
Product Series	ASR 1000 Series
Model	ASR 1006
Power Supply Options	AC or DC
Operating System	Cisco IOS XE
Rack Units	6U
Rack Height	6U
Interfaces/Ports	Varies by configuration
Flash Memory	8 GB
ESP	Embedded Services Processor
Storage	Internal SSD
