The following image shows the router installed on a four-post rack.

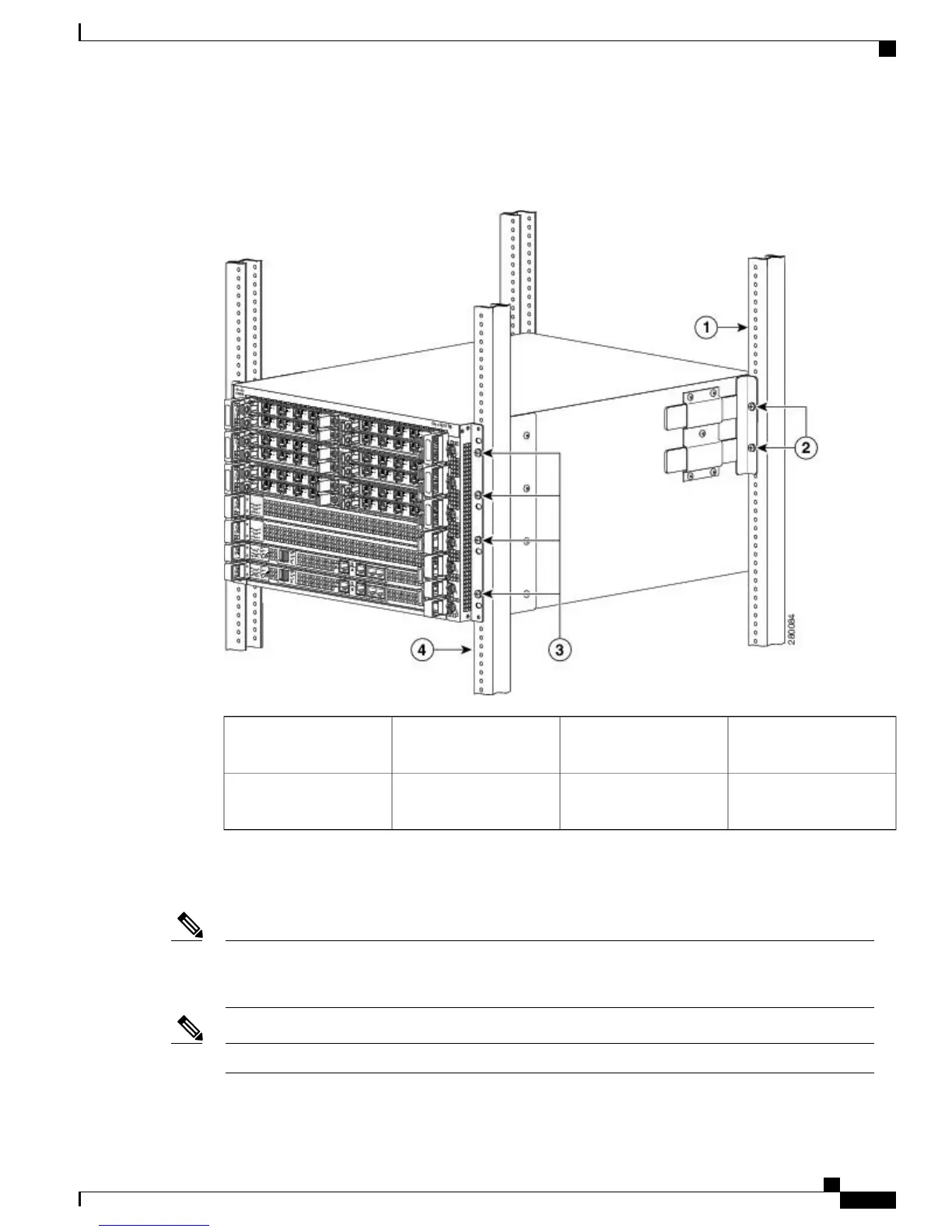

Figure 11: Installing the Cisco ASR 1006 Router in a Four-Post Equipment Rack
Cisco ASR 1006 front
rack-mount brackets
3Four-post equipment rack
rear rail
1
Four-post equipment rack
front rail
4Cisco ASR 1006 rear
rack-mount brackets
2
When handling the chassis, always follow proper lifting practices. See the “Chassis-Lifting Guidelines” section
on page 5-23 .
Inner clearance (the width between the inner sides of the two posts or rails) must be at least 19 inches
(48.26cm). The height of the chassis is 10.45 inches (26.543 cm). Airflow through the chassis is from
front to back.
Note
Make sure the rack is stabilized.Note
Cisco ASR 1000 Series Router Hardware Installation Guide
19
Cisco ASR 1006 Router Overview and Installation
Four-Post Rack Installation

Cisco ASR 1006 Specifications

General

Form Factor	Rack-mountable
Slots	6
Redundancy	Yes
Power Supply	Dual, hot-swappable
Product Type	Router
Memory	Up to 16 GB
Redundant Route Processor	Yes
Product Series	ASR 1000 Series
Model	ASR 1006
Power Supply Options	AC or DC
Operating System	Cisco IOS XE
Rack Units	6U
Rack Height	6U
Interfaces/Ports	Varies by configuration
Flash Memory	8 GB
ESP	Embedded Services Processor
Storage	Internal SSD
