SUMMARY STEPS
1.
At the rear of the chassis, check whether the power switch on the power supply is in the Standby position.
2.
Plug the power cable into the inlet.
DETAILED STEPS
Step 1
At the rear of the chassis, check whether the power switch on the power supply is in the Standby position.
Step 2
Plug the power cable into the inlet.
For additional AC power cable strain relief, secure the cable to the power supply handle by inserting a nylon
cable tie through the hole in the handle and around the cable.
Note
The following image shows the ASR1006-PWR-AC power supply of the Cisco ASR 1006 Router.

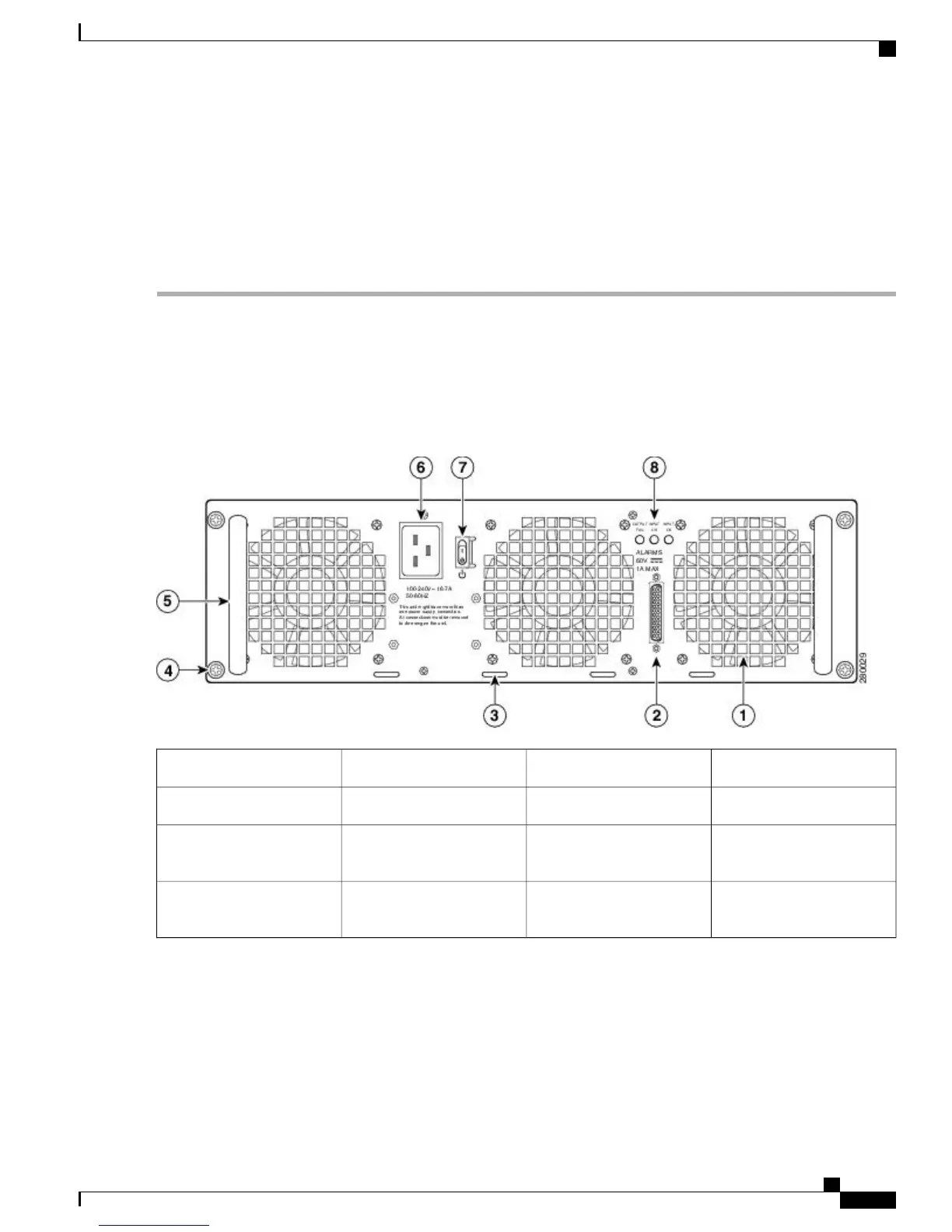

Figure 14: Cisco ASR 1006 Router AC Power Supply (ASR1006-PWR-AC)
AC power supply handle5AC power supply fan1
AC power inlet6DB-25 alarm connector2
AC power supply Standby
switch
7Tie-wrap tab3
AC power supply LEDs8AC power supply captive
screw
4
The following image shows the ASR1013/06-PWR-AC power supply of the Cisco ASR 1006 Router.
Cisco ASR 1000 Series Router Hardware Installation Guide
29
Cisco ASR 1006 Router Overview and Installation
Connecting AC Input Power to Cisco ASR 1006 Router

Cisco ASR 1006 Specifications
