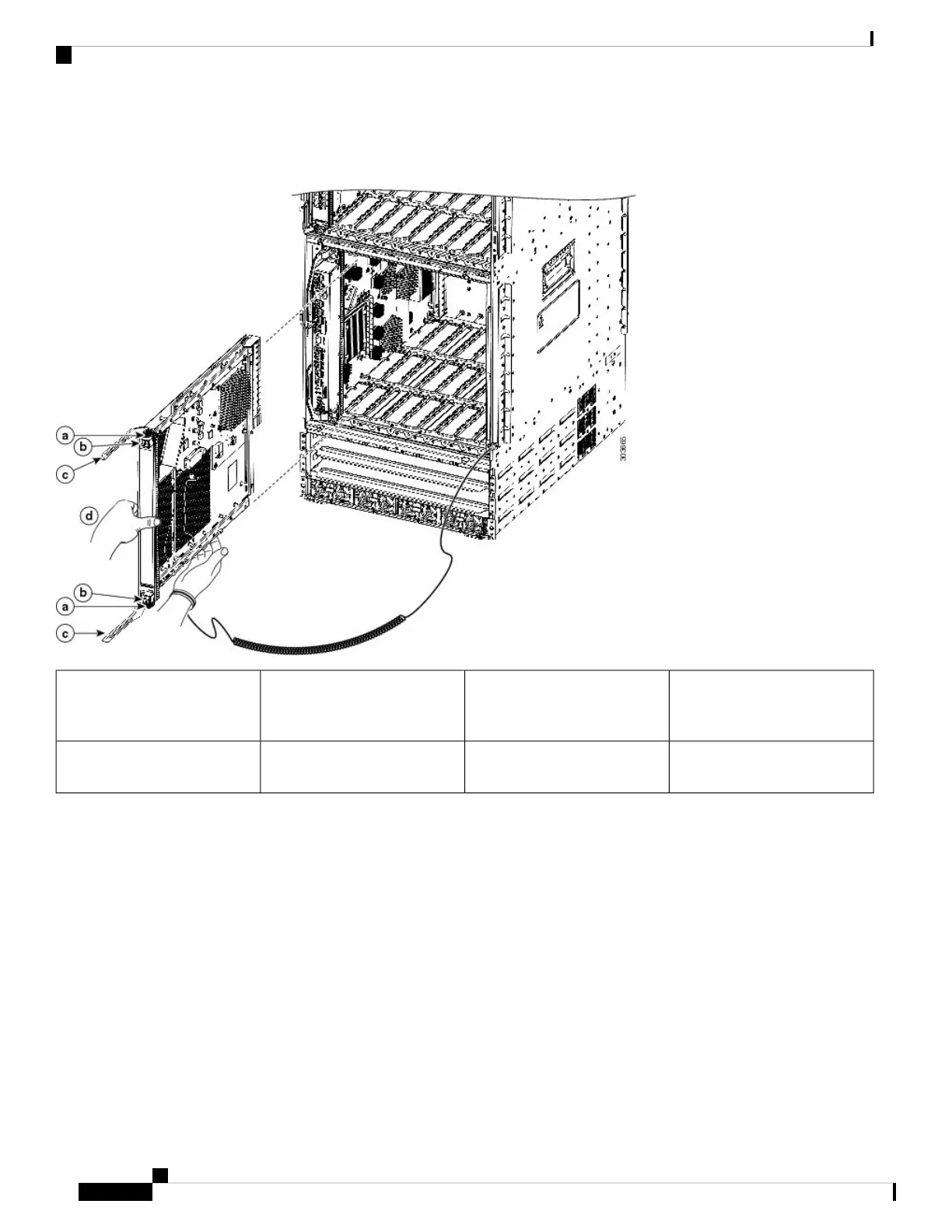

Figure 107: Removing a Switch Fabric Card from the Cisco ASR 9912 Router Chassis
Pivot the ejector levers outward
to unseat the card from the
backplane connector.
cLoosen the captive screws.a
Slide the card out of the chassis.dPush in both ejector lever
release buttons.
b
Step 3 To remove a RP or line card (see the figure below or Figure 109: Removing a Line Card from the Cisco ASR
9912 Router Top Card Cage , on page 102), starting at the lowest numbered slot:
a) Use a screwdriver to loosen the captive screws at the ends of the line card front panel.
b) Pivot the ejector levers to unseat the card from the backplane connector.
c) Slide the card out of the slot and place it directly into an antistatic bag or other ESD-preventive container.
Cisco ASR 9000 Series Aggregation Services Router Hardware Installation Guide
100
Unpacking and Installing the Chassis
Removing RP Cards, Fabric Cards, and Line Cards from the Cisco ASR 9922 Router and Cisco ASR 9912 Router
