Cisco ASR 9000 Series Installation Guide

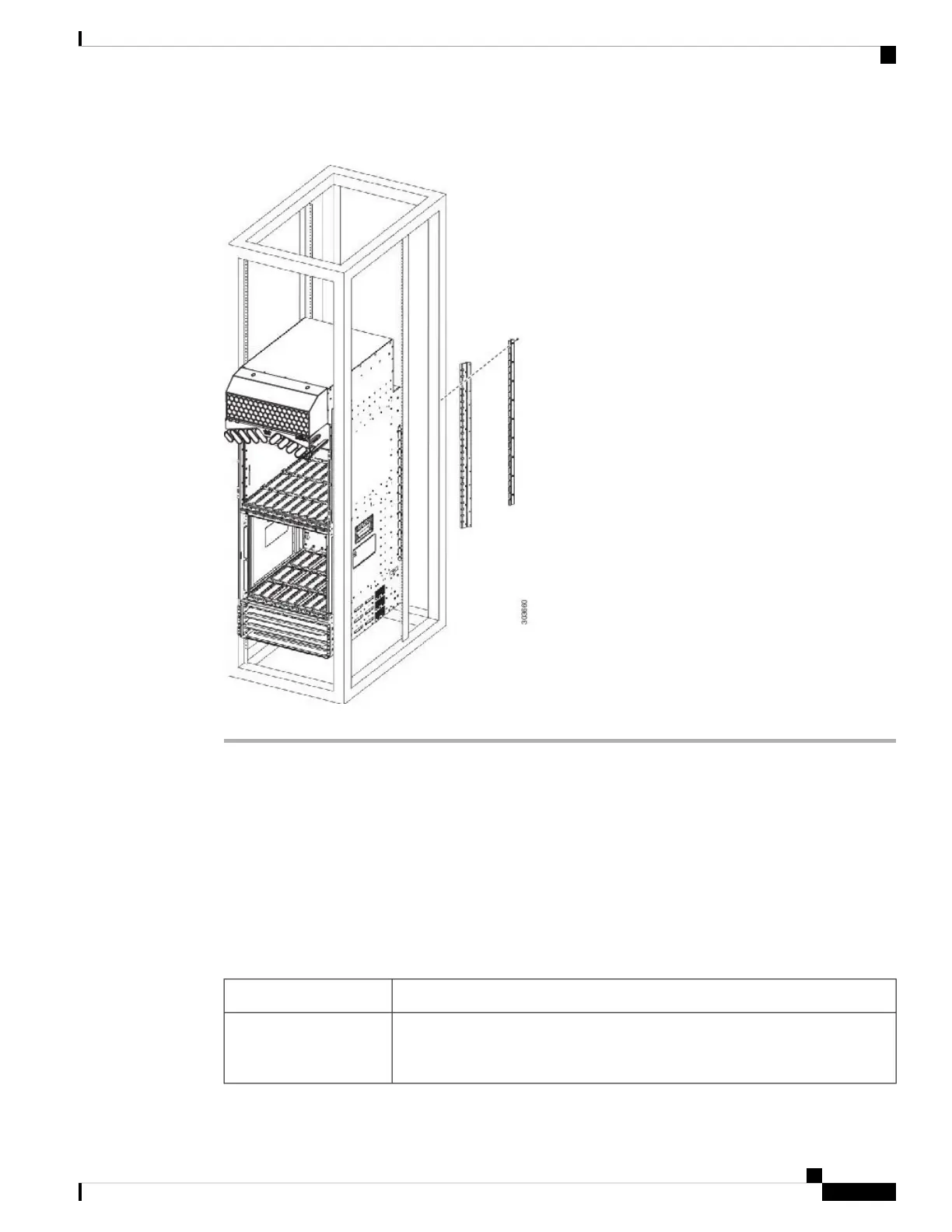

Figure 128: Installing the Cisco ASR 9922 Router Chassis in a 4-Post Rack
Supplemental Bonding and Grounding Connections
Before you connect power to the router, or power on the router for the first time, we recommend that you
connect the central office ground system or Network Equipment Building System (NEBS) to the threaded
supplemental bonding and grounding receptacles on the router. For more information on supplemental bonding
and grounding cable requirements, see NEBS Supplemental Unit Bonding and Grounding Guidelines.
The table below references the grounding receptacle locations for the Cisco ASR 9000 Series Routers.
Table 12: Grounding Receptacle Locations
Grounding Receptacle LocationModel Number
Bottom rear right side of the chassis (Figure 129: NEBS Bonding and Grounding
for the Cisco ASR 9010 Router, on page 122).
Cisco ASR 9010 Router
and Cisco ASR 9910
Router
Cisco ASR 9000 Series Aggregation Services Router Hardware Installation Guide
121
Unpacking and Installing the Chassis
Supplemental Bonding and Grounding Connections

Cisco ASR 9000 Series Specifications

General

Series	ASR 9000
Category	Network Router
Modular Design	Yes
Redundancy	Yes (Hardware and Software)
Operating System	Cisco IOS XR
Interfaces/Ports	10G, 40G, 100G, 400G Ethernet
Expansion Slots	Varies by model
Routing Protocol	BGP, OSPF, IS-IS, EIGRP
Management	CLI, SNMP, NETCONF
Power Supply	Redundant
Port Density	Varies by model
Power Supply Options	AC, DC
Memory	Varies by model
Storage	Varies by model
Dimensions	Varies by model
Weight	Varies by model
