Cisco ASR 9000 Series Installation Guide

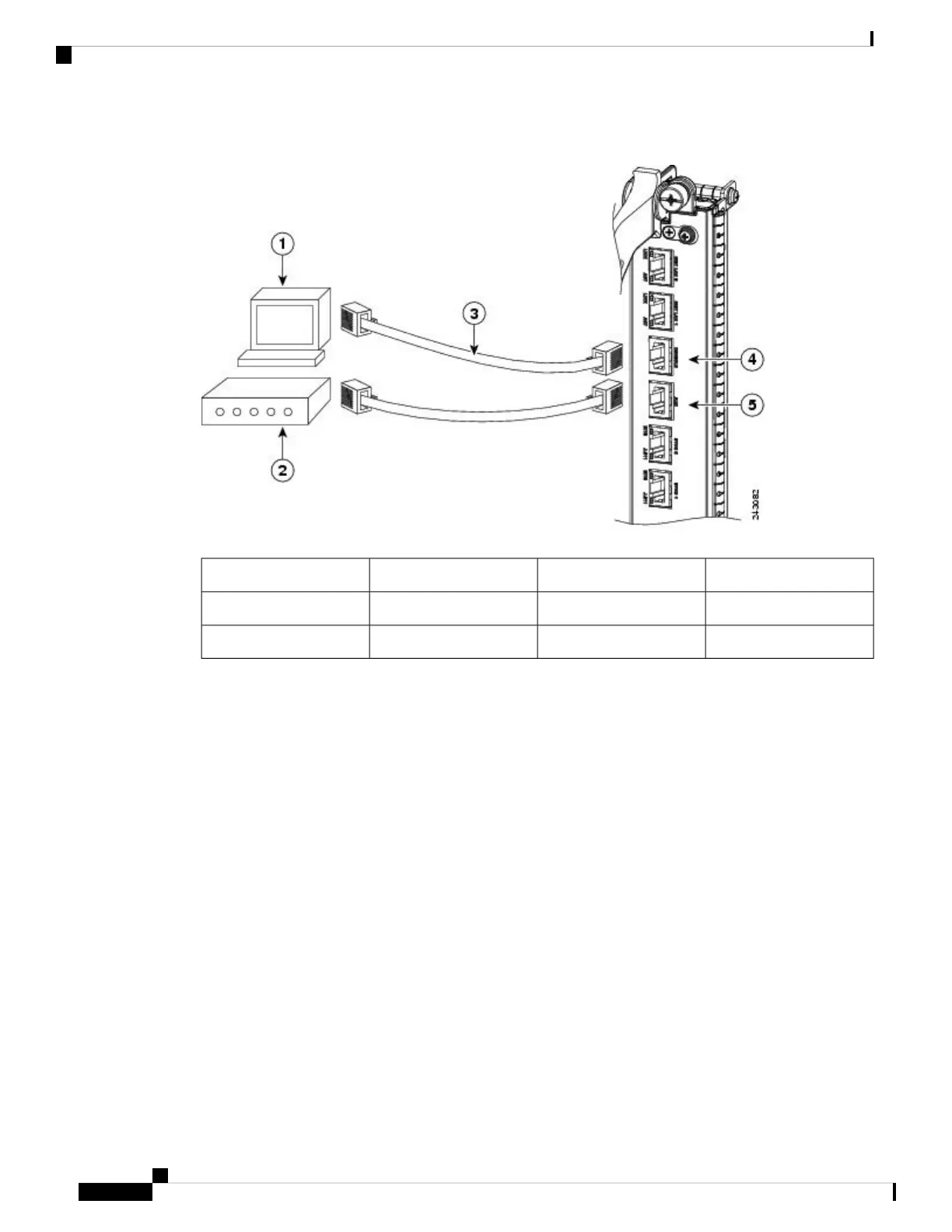

Figure 189: RSP Console and Auxiliary Port Connections
Console port4Console terminal1
Auxiliary (AUX) port5Modem2
RJ-45 Ethernet cables3
The figure below shows an example of an RP with data terminal and modem connections called out.
Cisco ASR 9000 Series Aggregation Services Router Hardware Installation Guide
186
Installing Cards and Modules in the Chassis
Connecting Cables to the RSP or RP

Cisco ASR 9000 Series Specifications

General

Series	ASR 9000
Category	Network Router
Modular Design	Yes
Redundancy	Yes (Hardware and Software)
Operating System	Cisco IOS XR
Interfaces/Ports	10G, 40G, 100G, 400G Ethernet
Expansion Slots	Varies by model
Routing Protocol	BGP, OSPF, IS-IS, EIGRP
Management	CLI, SNMP, NETCONF
Power Supply	Redundant
Port Density	Varies by model
Power Supply Options	AC, DC
Memory	Varies by model
Storage	Varies by model
Dimensions	Varies by model
Weight	Varies by model
