Chapter 2 Functional Description
Modular Line Cards
Figure 2-38 2-Port 10-Gigabit Ethernet MPA
2-Port 40-Gigabit Ethernet Modular Port Adapter
The 2-Port 40-Gigabit Ethernet MPA provides two cages for QSFP+ Ethernet optical interface modules
that operate at a rate of 40 Gbps. The two QSFP+ modules can be 40-Gigabit Ethernet multimode or
single mode connections.
Each QSFP+ cage on the 2-Port 40-Gigabit Ethernet MPA has an adjacent A/L LED visible on the front
panel. The A/L LED indicates the status of the associated QSFP+ port.

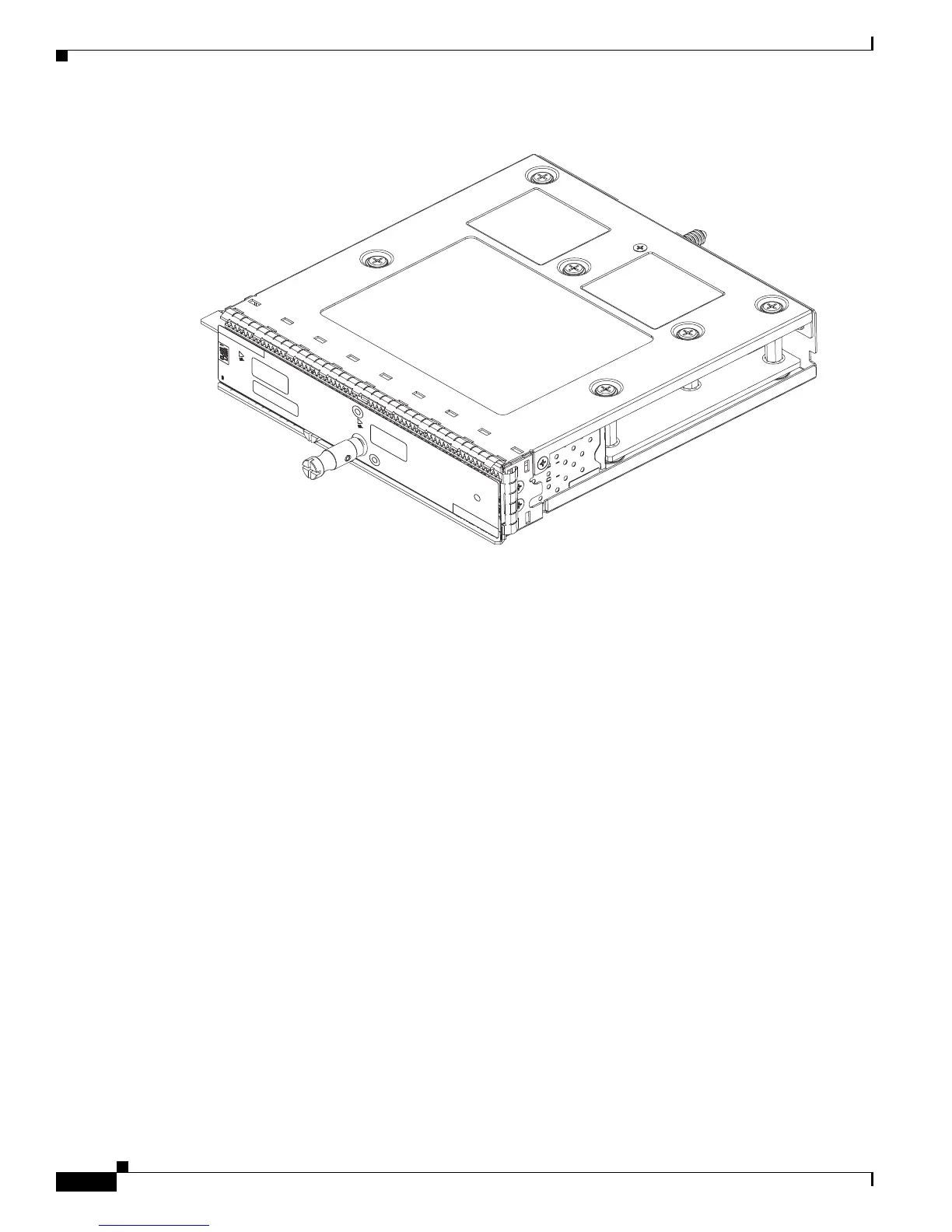

Figure 2-39 shows an example of the 2-Port 40-Gigabit Ethernet MPA.
330782
STATUS
A9K-MPA-2X10GE
A9K-MPA-2X10GE
0

Cisco ASR 9001 Specifications

General

Router Series	ASR 9000 Series
Rack Units	2 RU
Operating System	Cisco IOS XR
Form Factor	Rack-mountable
Power Supply	AC or DC
Memory	8 GB
Forwarding Capacity	Up to 80 Gbps
Switching Capacity	160 Gbps
Operating Temperature	0 to 40°C
Weight	24 lb
Redundancy	Power supply
