Chapter 2 Functional Description
Cooling System Functional Description

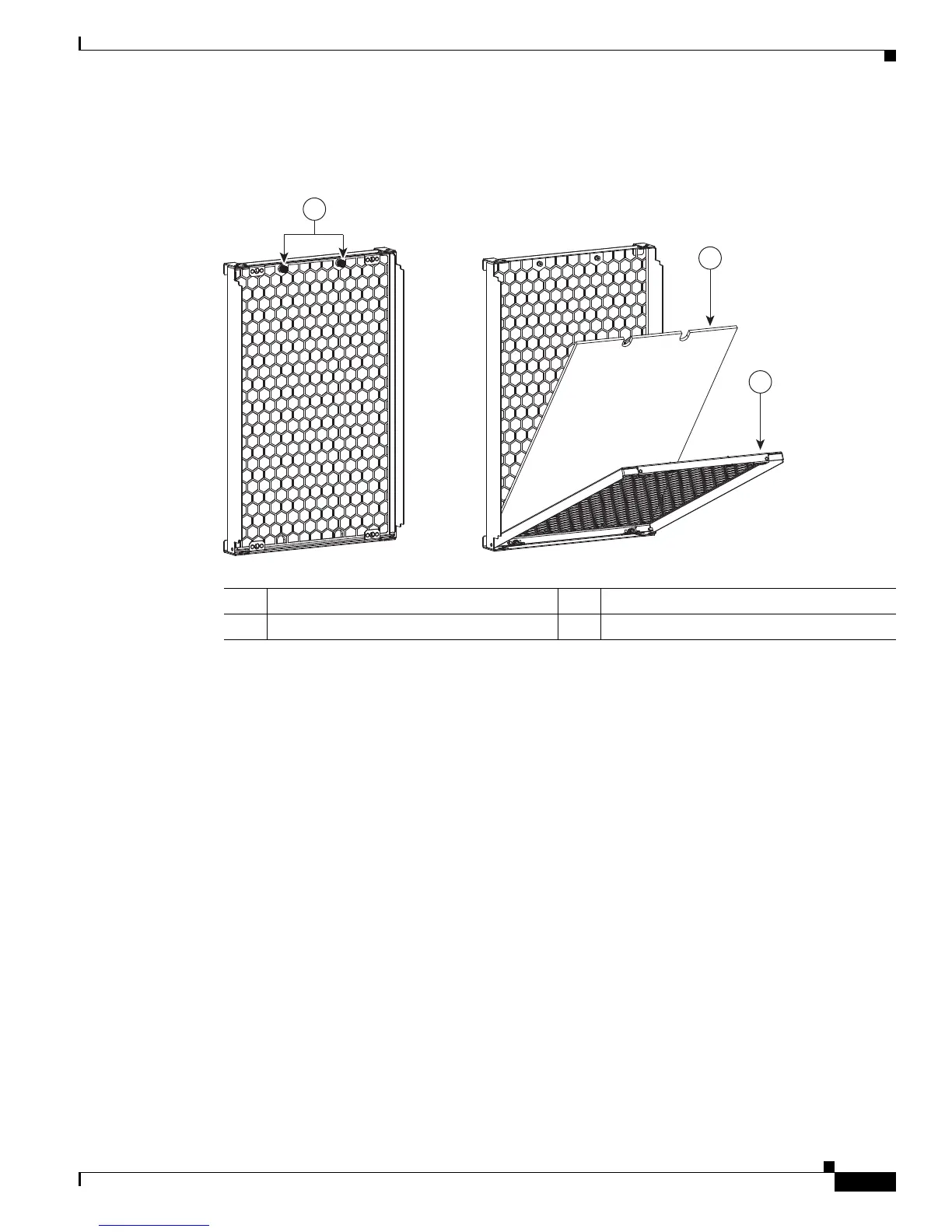

Figure 2-78 shows how to replace the foam media inside the center air filter.
Figure 2-78 Cisco ASR 9922 Router Chassis Center Air Filter
1 Loosen thumb screws. 3 Remove foam filter media.
2 Rotate and lower inner frame.
302420
1
2
3

Cisco ASR 9001 Specifications

General

Router Series	ASR 9000 Series
Rack Units	2 RU
Operating System	Cisco IOS XR
Form Factor	Rack-mountable
Power Supply	AC or DC
Memory	8 GB
Forwarding Capacity	Up to 80 Gbps
Switching Capacity	160 Gbps
Operating Temperature	0 to 40°C
Weight	24 lb
Redundancy	Power supply
