Cisco ASR 9000 Series Aggregation Services Router Overview and Reference Guide
OL-17501-09
Chapter 1 Overview and Physical Description
Power System
AC and DC Power Modules
Each AC or DC power tray houses up to four power modules.
• The AC and DC power trays in the Cisco ASR 9006 Router and Cisco ASR 9904 Router provide
N+1 redundancy.
• The AC power trays in the Cisco ASR 9010 Router, Cisco ASR 9922 Router, and Cisco ASR 9912
Router provide N+N redundancy. The DC power trays provide N+1 redundancy.
The power trays drive a single output bus that delivers –54 V to all cards and fan trays that are plugged
into the backplane.

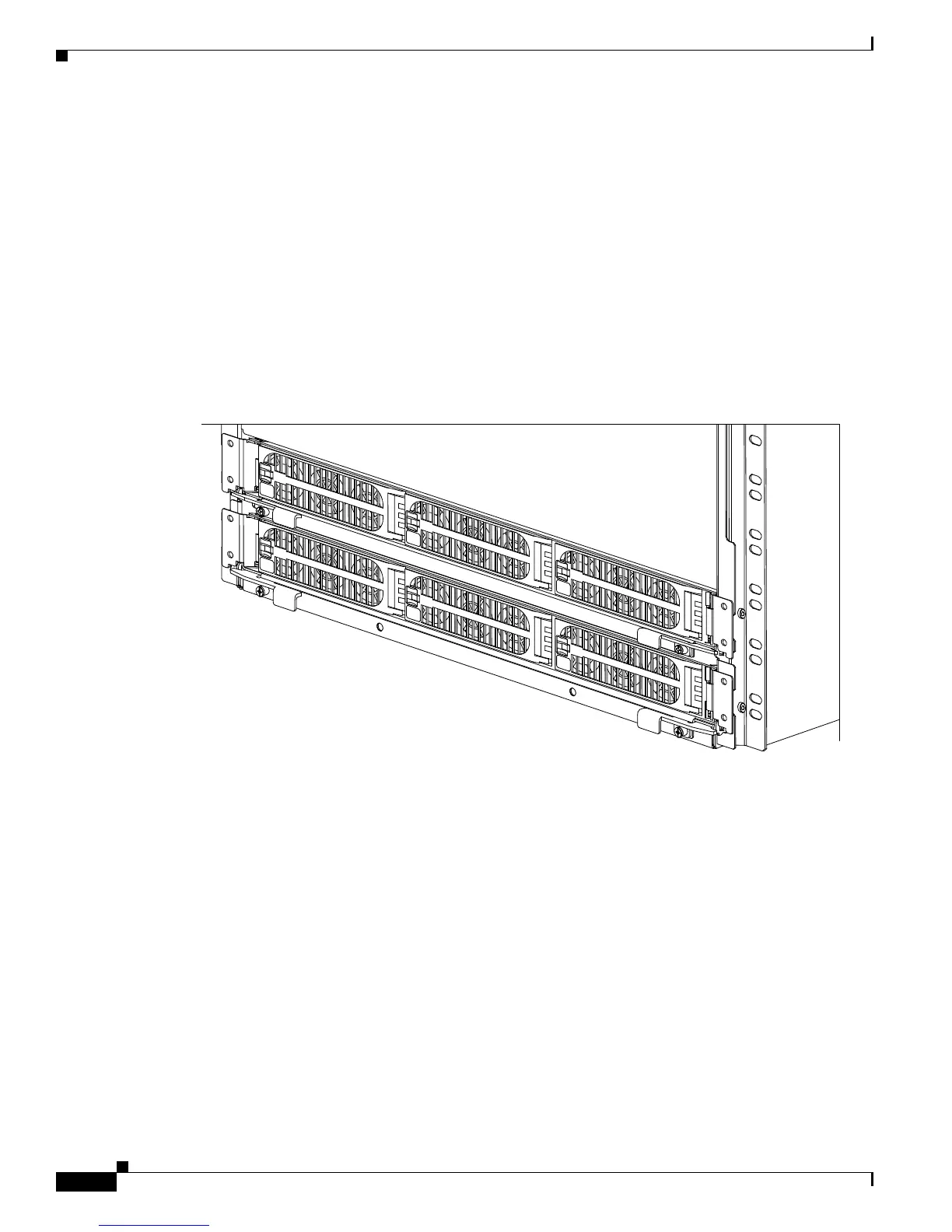

Figure 1-29 shows a front view of six version 1 power modules in the Cisco ASR 9010 Router.
Figure 1-29 Front System View of Power Trays—Cisco ASR 9010 Router with Version 1 Power
Tr a y s
242900

Cisco ASR 9001 Specifications

General

Router Series	ASR 9000 Series
Rack Units	2 RU
Operating System	Cisco IOS XR
Form Factor	Rack-mountable
Power Supply	AC or DC
Memory	8 GB
Forwarding Capacity	Up to 80 Gbps
Switching Capacity	160 Gbps
Operating Temperature	0 to 40°C
Weight	24 lb
Redundancy	Power supply
