Cisco ASR 9001 Overview And Reference Guide

2-33
Cisco ASR 9000 Series Aggregation Services Router Overview and Reference Guide
OL-17501-09
Chapter 2 Functional Description
Ethernet Line Cards

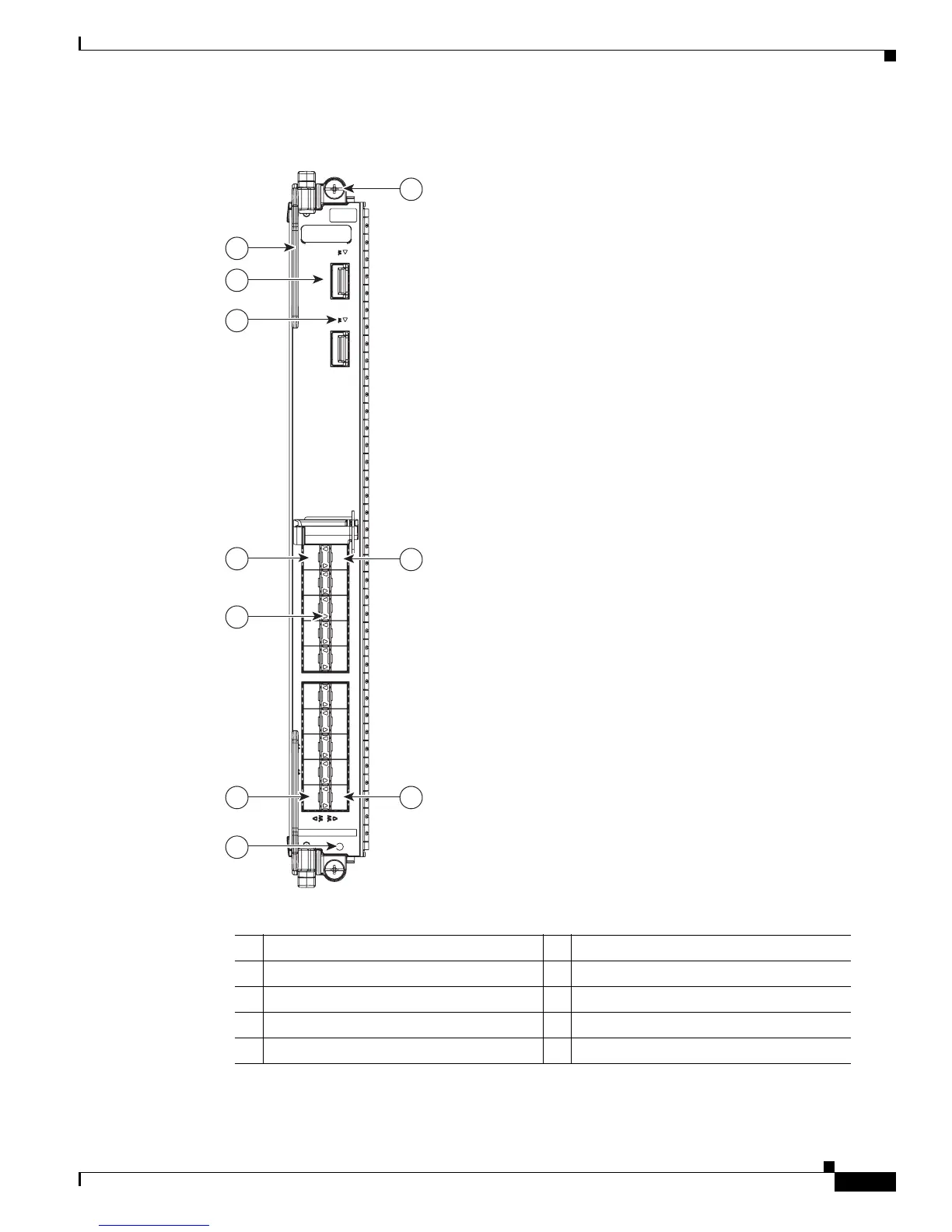

Figure 2-26 2-port 10-Gigabit Ethernet + 20-Port 1-Gigabit Ethernet (2x10GE + 20x1GE)
Combination Line Card Front Panel
1 Ejector lever (one of two) 6 1GE Port 18 SFP cage
2 10GE Port 0 XFP cage 7 Line Card Status LED
3 XFP Port Status LED (one per XFP port) 8 1GE Port 19 SFP cage
4 1GE Port 0 SFP cage 9 1GE Port 1 SFP cage
5 SFP Port Status LED (one per SFP port) 10 Captive installation screw (one of two)
A9K-2T2-GE-E
STAT US
CLASS 1
LASER
1
02468 1 3 579 1113
10 12
15 17 19
0
194911
1
5
4
6
2
3
7
10
9
8

Cisco ASR 9001 Specifications

General

Router Series	ASR 9000 Series
Rack Units	2 RU
Operating System	Cisco IOS XR
Form Factor	Rack-mountable
Power Supply	AC or DC
Memory	8 GB
Forwarding Capacity	Up to 80 Gbps
Switching Capacity	160 Gbps
Operating Temperature	0 to 40°C
Weight	24 lb
Redundancy	Power supply
