Chapter 2 Functional Description
Route Processor Card
Route Processor Card
The RP card is the main control element in the Cisco ASR 9922 Router and Cisco ASR 9912 Router
chassis. The switch fabric element has been moved to the FC cards. The RP card provides system control,
packet switching, and timing control for the system. To provide redundancy, there are two RP cards in
the system, one as the active control RP and the other as the standby RP. The standby RP takes over all
control functions should the active RP fail.

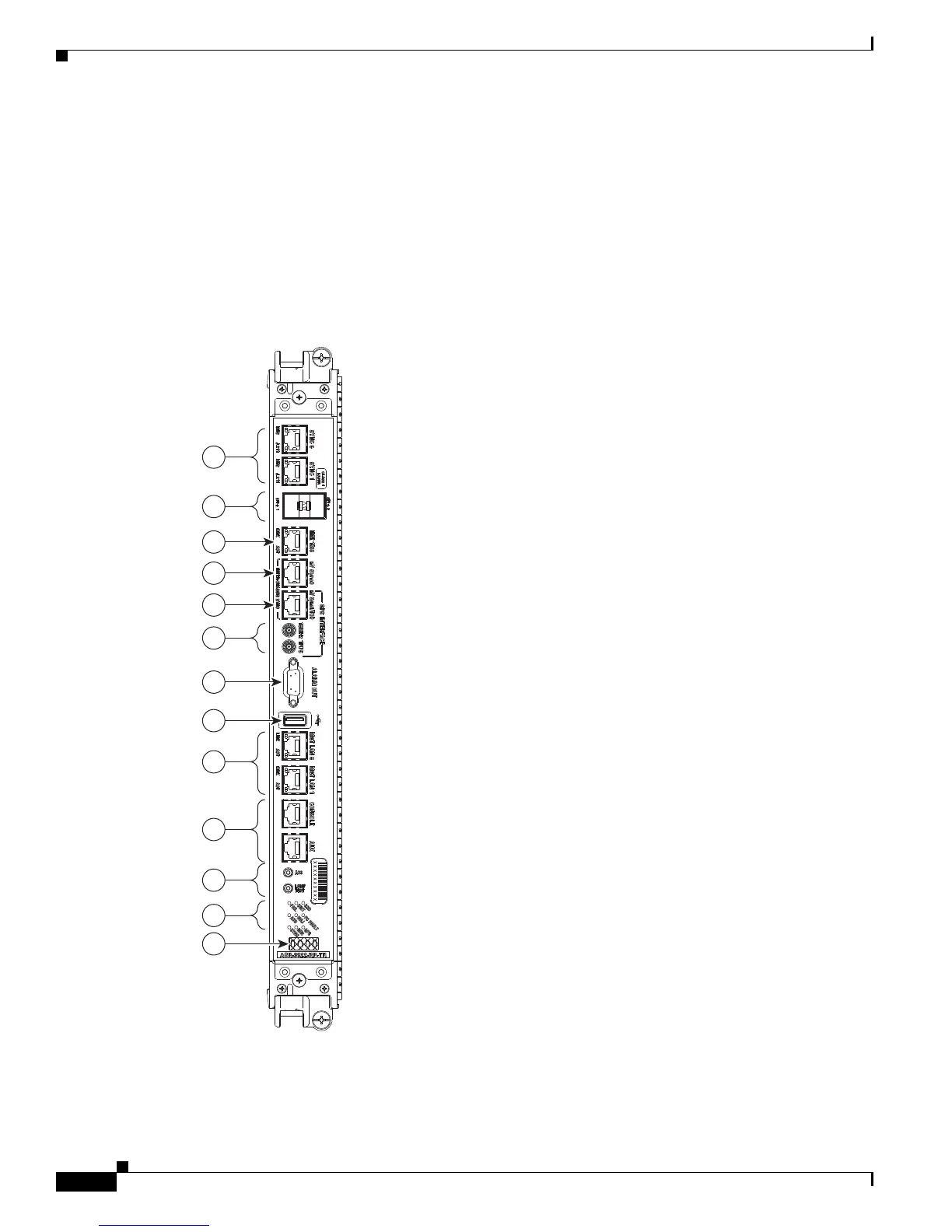

Figure 2-8 shows the front panel connectors and indicators of the RP card.
Figure 2-8 RP Card Front Panel Connectors and Indicators
7
3
4
5
8
13
1
9
10
12
11
2
6
344073

Cisco ASR 9001 Specifications

General

Router Series	ASR 9000 Series
Rack Units	2 RU
Operating System	Cisco IOS XR
Form Factor	Rack-mountable
Power Supply	AC or DC
Memory	8 GB
Forwarding Capacity	Up to 80 Gbps
Switching Capacity	160 Gbps
Operating Temperature	0 to 40°C
Weight	24 lb
Redundancy	Power supply
