Chapter 2 Functional Description
Ethernet Line Cards
4-Port 10-Gigabit Ethernet (4x10GE) Line Card
The 4-port 10-Gigabit Ethernet (4x10GE) line card has four 10-Gigabit Ethernet XFP module ports. One
10-Gigabit Ethernet port connects to an XAUI interface on each of the four NPUs.
The 4x10GE line card is available in base, extended, and low-queue versions. All versions are
functionally equivalent, with the extended version of the line card providing typically twice the service
scale of the base line card.
Figure 2-21 shows the block diagram for the 4x10GE Line card, and Figure 2-22 shows the front panel
connectors and indicators.

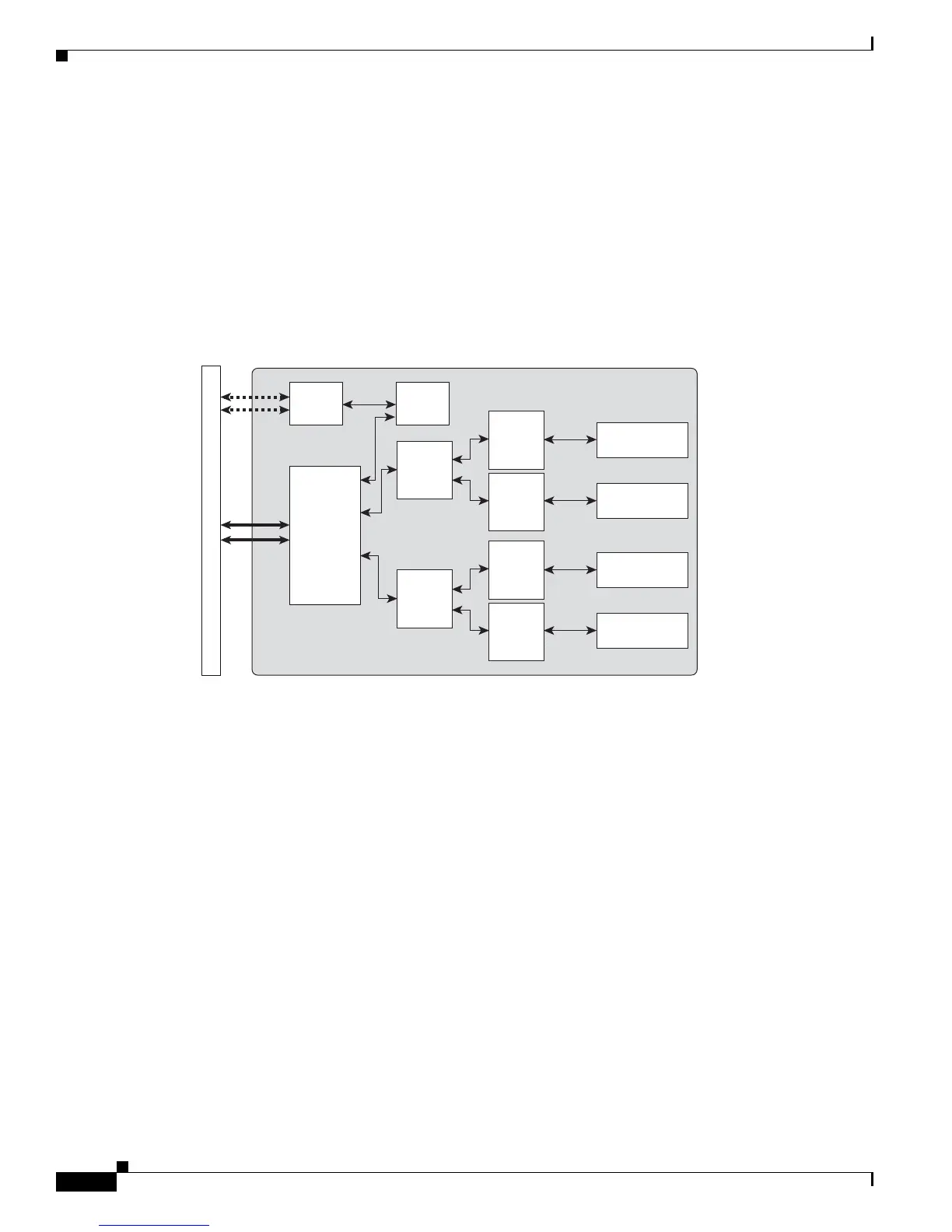

Figure 2-21 4-Port 10-Gigabit Ethernet (4x10GE) Line Card Block Diagram
4x10GE
Line Card
243064
B
a
c
k
p
l
a
n
e
Fabric
Interface
Chip
GE
PHY
CPU
FPGA
NPU
NPU
FPGA
10GE XFP
10GE XFP
NPU
NPU
10GE XFP
10GE XFP

Cisco ASR 9001 Specifications

General

Router Series	ASR 9000 Series
Rack Units	2 RU
Operating System	Cisco IOS XR
Form Factor	Rack-mountable
Power Supply	AC or DC
Memory	8 GB
Forwarding Capacity	Up to 80 Gbps
Switching Capacity	160 Gbps
Operating Temperature	0 to 40°C
Weight	24 lb
Redundancy	Power supply
