Chapter 2 Functional Description
Route Switch Processor Card

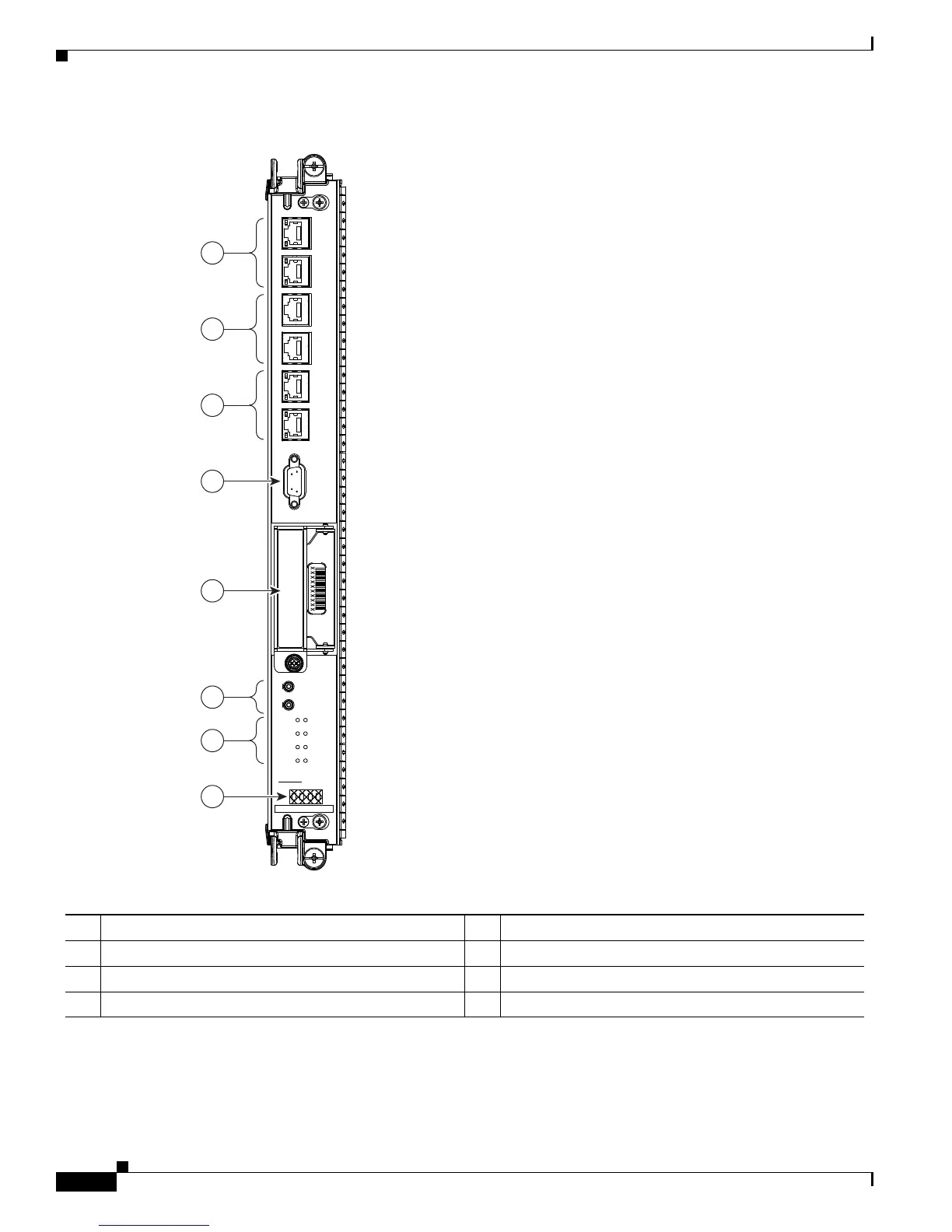

Figure 2-6 RSP Card Front Panel Indicators and Connectors
1 Management LAN ports 5 Compact Flash type I/II
2 CONSOLE and AUX ports 6 Alarm Cutoff (ACO) and LAMP TEST push buttons
3 SYNC (BITS/J.211) ports 7 Eight discrete LED indicators
4 Alarm Out DB9 connector 8 LED matrix display
243091
MGT LAN 0 MGT LAN 1 CONSOLE AUX SYNC 0 SYNC 1
ALARM OUT
KEEP CLOSED
COMPACT FLASH ACCESS
ACO
ACO
LAMP
TEST
SYNC
HDD
CF
FAIL
CRIT
MAJ
MIN
A9K-RSP-4G
LINK ACT LINK ACT
BITS J.211 BITS J.211
4
5
8
1
2
3
7
6

Cisco ASR 9001 Specifications

General

Router Series	ASR 9000 Series
Rack Units	2 RU
Operating System	Cisco IOS XR
Form Factor	Rack-mountable
Power Supply	AC or DC
Memory	8 GB
Forwarding Capacity	Up to 80 Gbps
Switching Capacity	160 Gbps
Operating Temperature	0 to 40°C
Weight	24 lb
Redundancy	Power supply
