Cisco Catalyst 2960-X Series User Manual

PS OK LED4FlexStack-Plus module slot and cover1
AC power connector on the power supply module5Power supply slot (with blank module)2
AC OK LED3
FlexStack-Plus Ports and LEDs
The stacking-capable switch models support stacking with the optional stack kit. It has the FlexStack-Plus
module (hot-swappable) that inserts in the slot located in the switch rear panel, and a 0.5-meter FlexStack
cable to connect the FlexStack-Plus module ports.

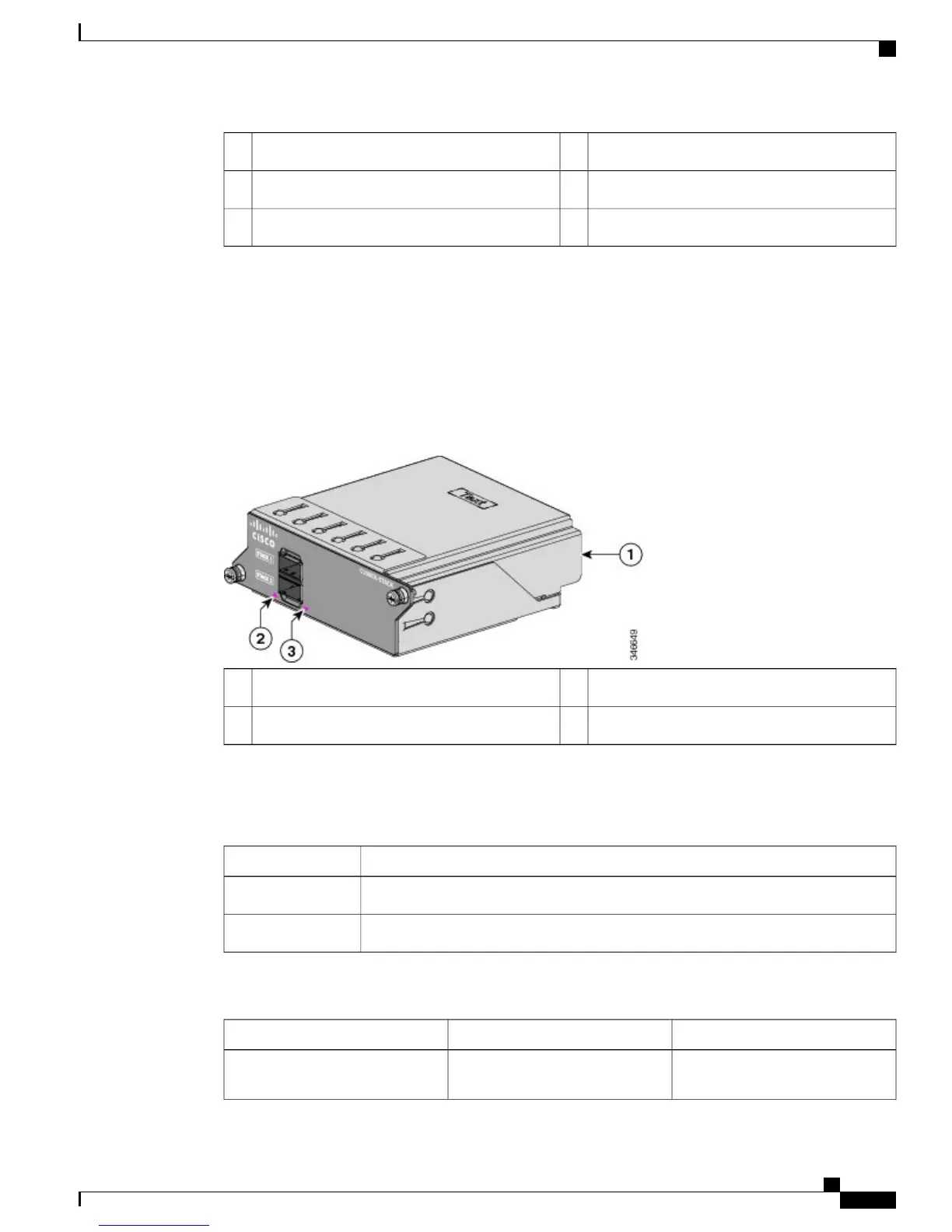

Figure 9: FlexStack-Plus Module
LED for Stack port 23FlexStack-Plus module1
LED for Stack port 12
This table lists the FlexStack-Plus module LED colors and their meanings.
Table 11: FlexStack-Plus Module LEDs
DescriptionColor
Port is active, cable is attached.Green
The port is not active, no cable is attached.Off
Table 12: Stack Configurations
BandwidthNumber of Switches in the StackSwitch
80 G8Stack with Catalyst 2960-X
stack-capable switches
Catalyst 2960-X and 2960-XR Switch Hardware Installation Guide
OL-28309-02 17
Product Overview
FlexStack-Plus Ports and LEDs

Cisco Catalyst 2960-X Series Specifications

General

Operating System	Cisco IOS
Form Factor	Rack-mountable
RAM	512 MB
Model	2960-X Series
Ports	48 x Gigabit Ethernet
Uplink Interfaces	Optional 1G or 10G uplinks
Switching Capacity	Up to 160 Gbps
Stacking	Yes, up to 8 switches
Power over Ethernet	PoE+ (IEEE 802.3at) available on selected models
Dimensions	4.4 x 45 x 28.2 cm (1.73 x 17.7 x 11.1 in)
Weight	5.4 kg
VLANs	4096
Jumbo Frame Support	9198 bytes
Power Supply	100-240VAC, 50-60 Hz
Features	Layer 2 and Layer 3 features, QoS, IPv6 support
Software	LAN Base
Operating Temperature	0 to 45°C (32 to 113°F)
