If no power supply is installed in a power supply slot, install a power supply slot cover.

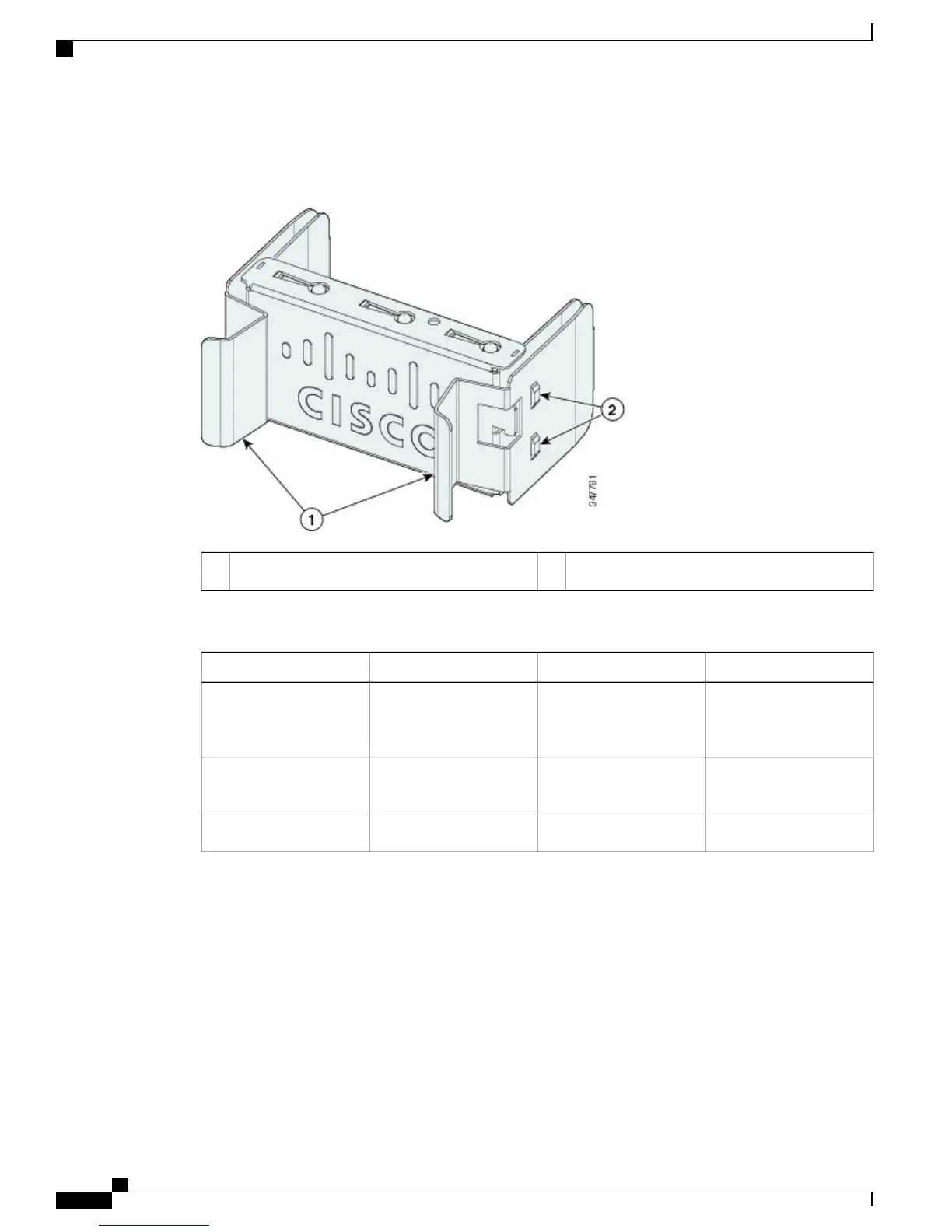

Figure 33: Power Supply Slot Cover
Retainer clips2Release handles1
The power supply modules have two status LEDs.
DescriptionPS OKDescriptionAC OK
Output is disabled, or
input is outside operating
range.
OffNo AC input power.Off (AC LED is off)
Power output to switch.GreenAC input power is
present.
Green
Output has failed.Red
Installation Guidelines
Observe these guidelines when removing or installing a power supply module:
•
Do not force the power supply module into the slot. This can damage the pins on the switch if they are
not aligned with the module.
•
A power supply that is only partially connected to the switch can disrupt the system operation.
•
Remove power from the power-supply module before removing or installing the module.
Catalyst 2960-X and 2960-XR Switch Hardware Installation Guide
56 OL-28309-02
Power Supply Installation
Installation Guidelines

Cisco Catalyst 2960-X Series Specifications

General

Operating System	Cisco IOS
Form Factor	Rack-mountable
RAM	512 MB
Model	2960-X Series
Ports	48 x Gigabit Ethernet
Uplink Interfaces	Optional 1G or 10G uplinks
Switching Capacity	Up to 160 Gbps
Stacking	Yes, up to 8 switches
Power over Ethernet	PoE+ (IEEE 802.3at) available on selected models
Dimensions	4.4 x 45 x 28.2 cm (1.73 x 17.7 x 11.1 in)
Weight	5.4 kg
VLANs	4096
Jumbo Frame Support	9198 bytes
Power Supply	100-240VAC, 50-60 Hz
Features	Layer 2 and Layer 3 features, QoS, IPv6 support
Software	LAN Base
Operating Temperature	0 to 45°C (32 to 113°F)
