Step 3
If the module has a bale-clasp latch, move it to the open, unlocked position.
Step 4
Align the module in front of the slot opening, and push until you feel the connector snap into place.
Step 5
If the module has a bale-clasp latch, close it.
Step 6
For fiber-optic SFP or SFP+ modules, remove the dust plugs and save.
Step 7
Connect the SFP cables.

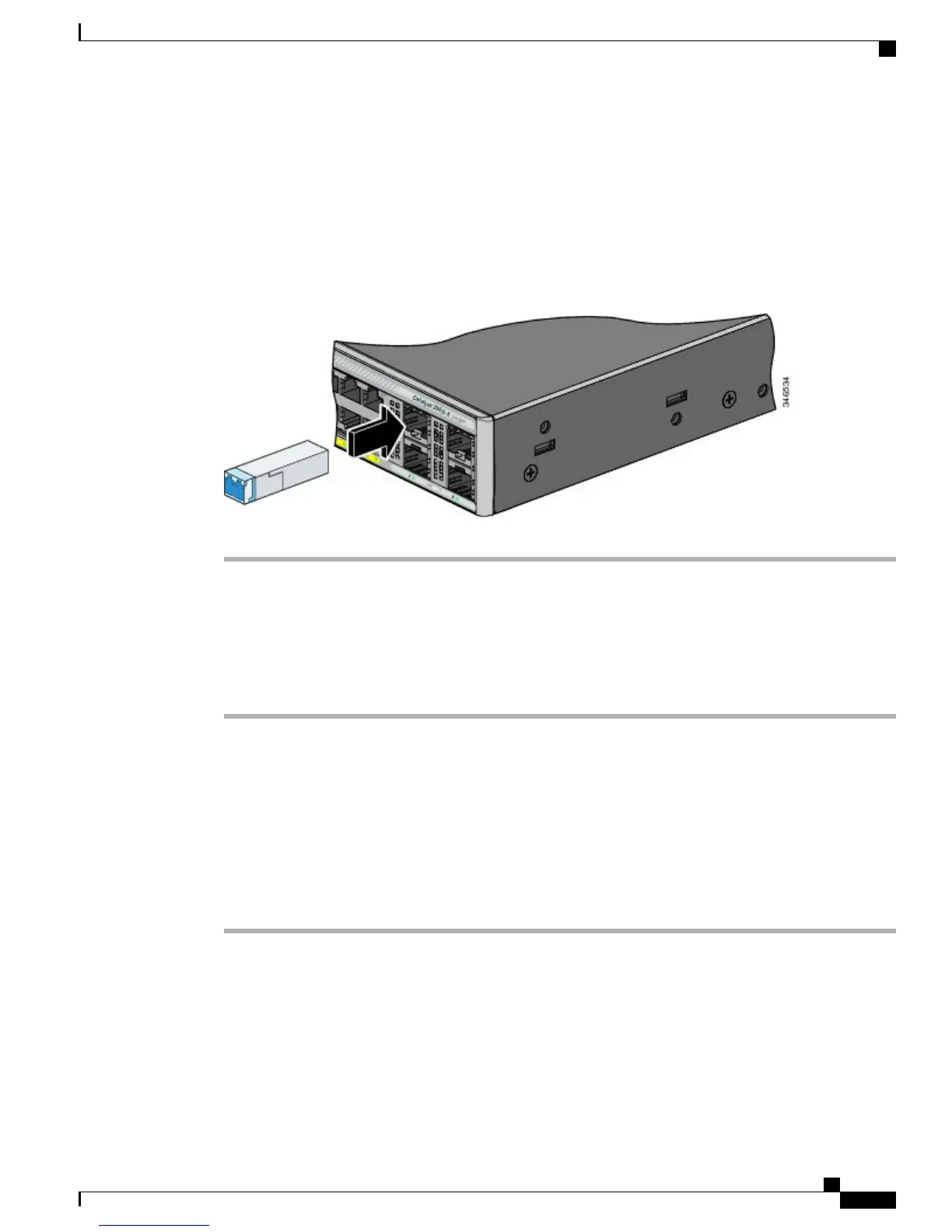

Figure 27: Installing an SFP Module
Removing an SFP or SFP+ Module
Procedure
Step 1
Attach an ESD-preventive wrist strap to your wrist and to a bare metal surface.
Step 2
Disconnect the cable from the SFP module. For reattachment, note which cable connector plug is send (TX)
and which is receive (RX).
Step 3
Insert a dust plug into the optical ports of the SFP or SFP+ module to keep the optical interfaces clean.
Step 4
If the module has a bale-clasp latch, pull the bale out and down to eject the module. If the latch is obstructed
and you cannot use your finger, use a small, flat-blade screwdriver or other long, narrow instrument to open
the latch.
Step 5
Grasp the SFP or SFP+ module, and carefully remove it from the module slot.
Step 6
Place the module in an antistatic bag or other protective environment.
Connecting to SFP and SFP+ Modules
Related Topics
SFP and SFP+ Module Slots, on page 7
Catalyst 2960-X and 2960-XR Switch Hardware Installation Guide
OL-28309-02 47
Switch Installation
Removing an SFP or SFP+ Module

Cisco Catalyst 2960-X Series Specifications

General

Operating System	Cisco IOS
Form Factor	Rack-mountable
RAM	512 MB
Model	2960-X Series
Ports	48 x Gigabit Ethernet
Uplink Interfaces	Optional 1G or 10G uplinks
Switching Capacity	Up to 160 Gbps
Stacking	Yes, up to 8 switches
Power over Ethernet	PoE+ (IEEE 802.3at) available on selected models
Dimensions	4.4 x 45 x 28.2 cm (1.73 x 17.7 x 11.1 in)
Weight	5.4 kg
VLANs	4096
Jumbo Frame Support	9198 bytes
Power Supply	100-240VAC, 50-60 Hz
Features	Layer 2 and Layer 3 features, QoS, IPv6 support
Software	LAN Base
Operating Temperature	0 to 45°C (32 to 113°F)
