Cisco Catalyst 2960-X Series User Manual

Stack Cabling
These figures show the switches stacked in a vertical rack or on a table. The connections are redundant. A
Catalyst 2960-X switch is shown in the examples, the Catalyst 2960-XR switch can be stacked in the same
way.

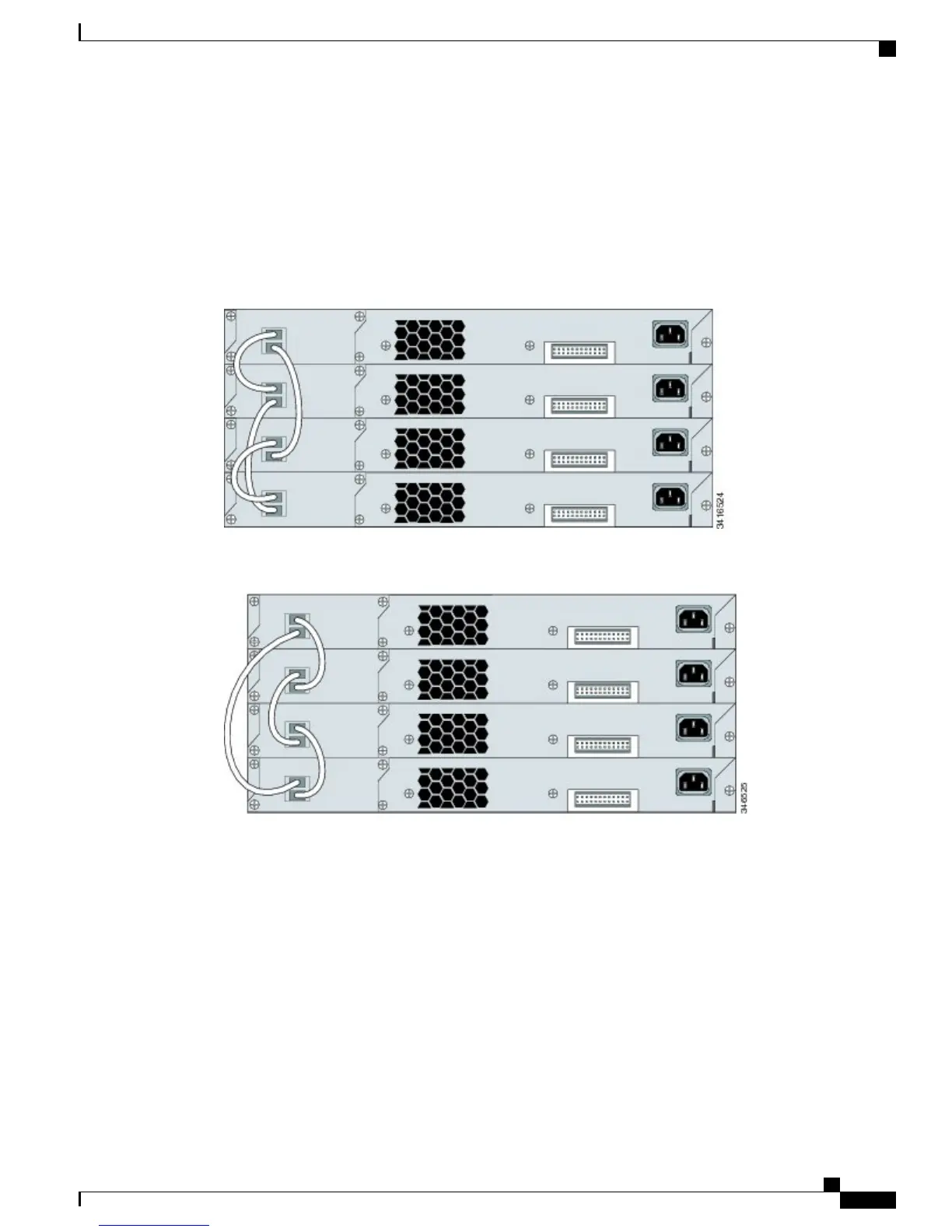

Figure 10: Stacking Switches with the 0.5-meter FlexStack Cable
Figure 11: Stacking Switches with 0.5-meter and 3-meter FlexStack Cables
Catalyst 2960-X and 2960-XR Switch Hardware Installation Guide
OL-28309-02 31
Switch Installation
Stack Cabling

Cisco Catalyst 2960-X Series Specifications

General

Operating System	Cisco IOS
Form Factor	Rack-mountable
RAM	512 MB
Model	2960-X Series
Ports	48 x Gigabit Ethernet
Uplink Interfaces	Optional 1G or 10G uplinks
Switching Capacity	Up to 160 Gbps
Stacking	Yes, up to 8 switches
Power over Ethernet	PoE+ (IEEE 802.3at) available on selected models
Dimensions	4.4 x 45 x 28.2 cm (1.73 x 17.7 x 11.1 in)
Weight	5.4 kg
VLANs	4096
Jumbo Frame Support	9198 bytes
Power Supply	100-240VAC, 50-60 Hz
Features	Layer 2 and Layer 3 features, QoS, IPv6 support
Software	LAN Base
Operating Temperature	0 to 45°C (32 to 113°F)
