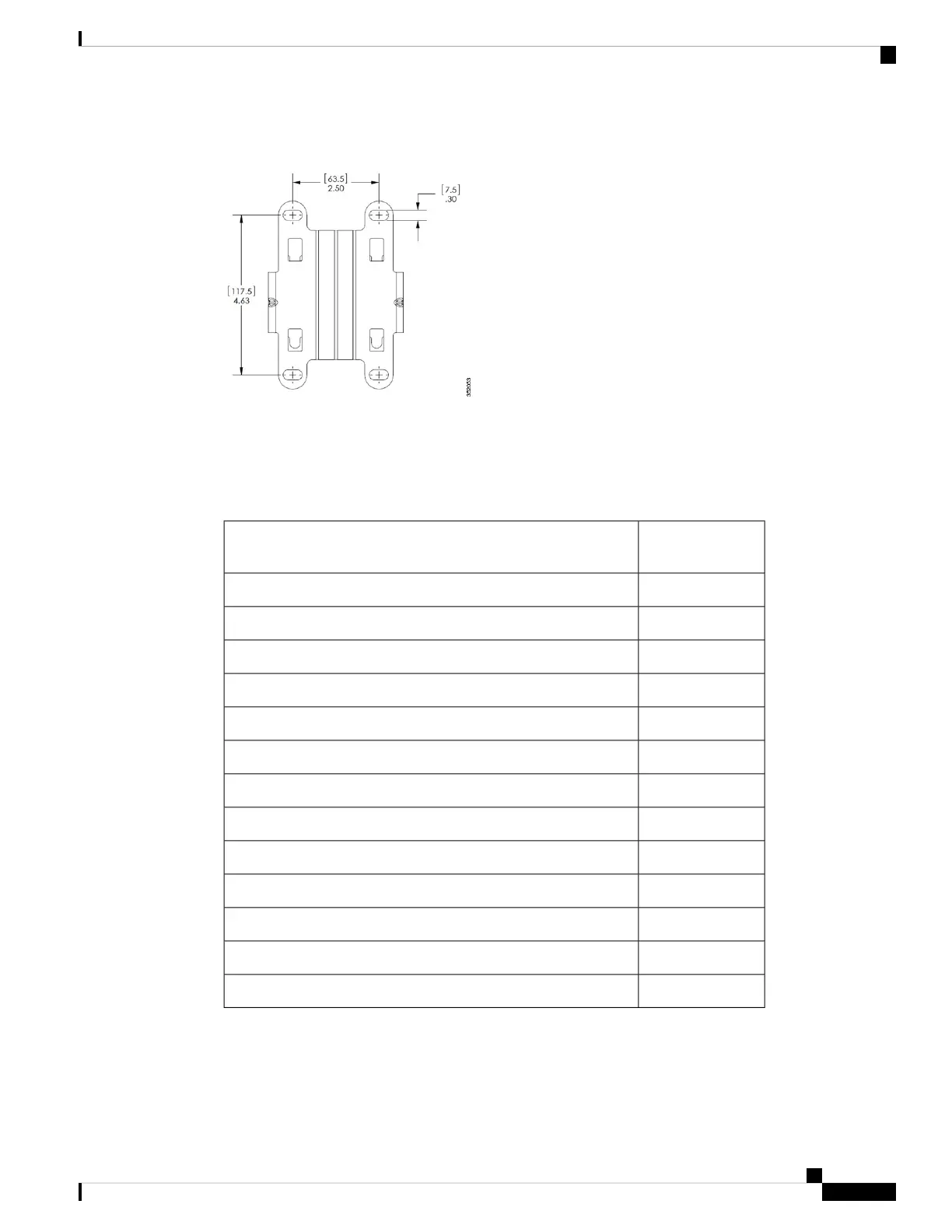

Figure 54: Mounting Bracket Dimensions
Before you begin
Ensure that you have the following materials before beginning to mount the AP to a wall:
Table 3: Material Required to Mount Access Point to a Wall using AIR-MNT-VERT1= Kit
Supplied in the
Kit?
Materials Required
YesGround lug and screws (provided with the access point)
YesWall Mount Bracket
YesFour M6 x 12–mm Hex-head Bolts
NoCrimping tool for ground lug, Panduit CT-720 with CD-720-1 die
NoFour wall mounting screws
NoFour wall anchors (specified for all material)
NoDrill bit for wall anchors
NoElectric drill and standard screwdriver
No#6 AWG ground wire
NoShielded outdoor-rated Ethernet (CAT5e or better) cable
NoGrounding block
NoGrounding rod
No10–mm box-end wrench or socket set
Cisco Catalyst 9124AX Series Outdoor Access Point Hardware Installation Guide
41
Installation Overview
Vertically Mounting the AP to a Wall

Cisco Catalyst 9124AX Series Specifications

General

Wi-Fi Standard	Wi-Fi 6 (802.11ax)
Frequency Bands	2.4 GHz, 5 GHz
MIMO	4x4
IP Rating	IP67
Spatial Streams	4
Power Options	802.3at PoE+, DC power adapter
Radios	Dual Radio (2.4 GHz and 5 GHz)
Antenna	Internal
Power over Ethernet	Yes
Mounting	Wall, ceiling, pole
Weight	1.2 kg
Security	WPA3, WPA2, WPA
Management	Cisco DNA Center, CLI, WebUI
Ethernet Ports	1 x 10/100/1000/2500 Multigigabit Ethernet (RJ-45)
Dimensions	220 x 220 x 66 mm
