Pole Mounting the AP with Horizontal Kit

The AIR-MNT-HORZ1= mounting kit contains a mounting L-bracket and components for both pole mounting

and wall mounting. Using this kit, you can install the AP on a pole or mast. It supports metal, wood, or

fiberglass poles from 2 to 5 inches (51 to 127 mm) in diameter.

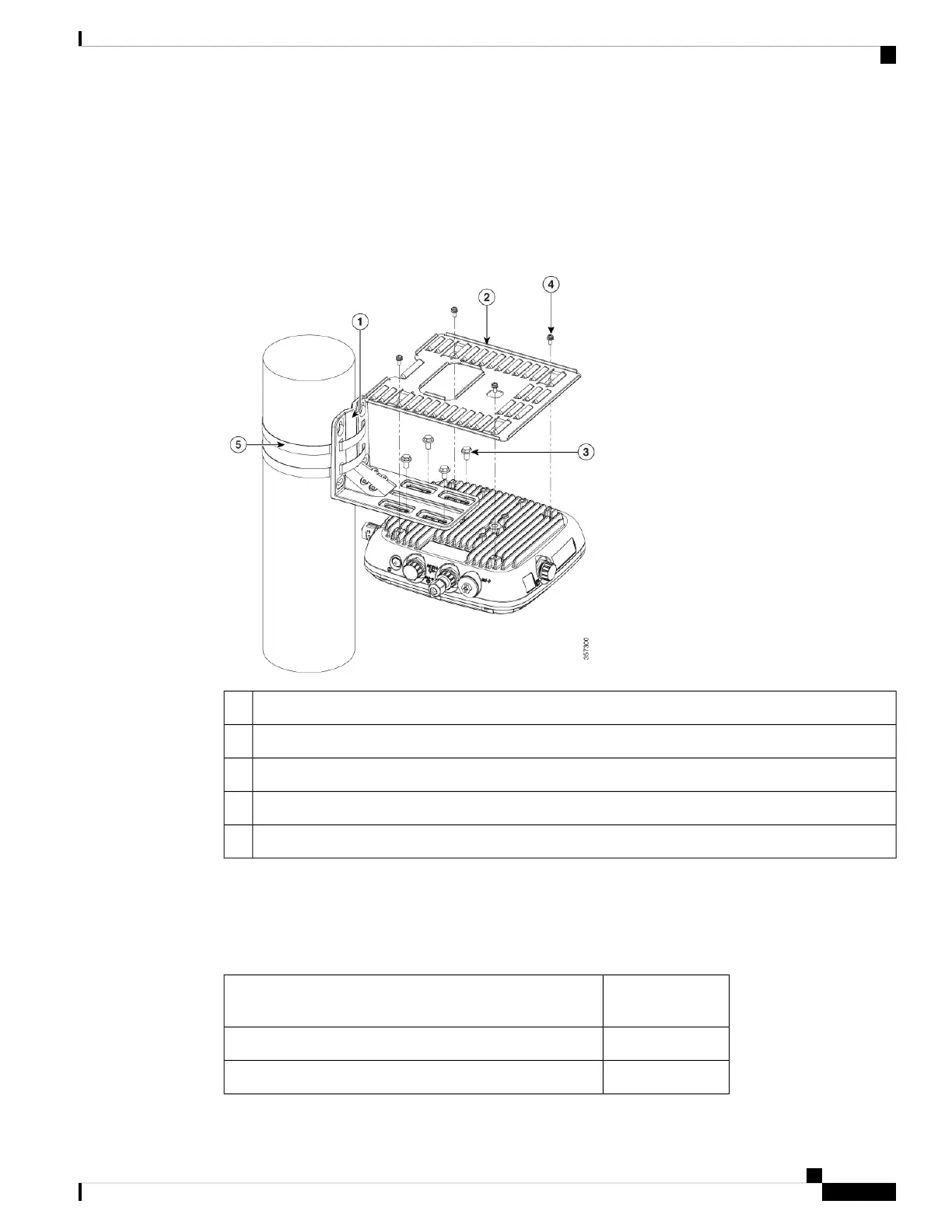

Figure 65: Pole Mounted Horizontal Kit (AIR-MNT-HORZ1=)

L-Bracket1

Solar Shield2

(4) M6 x 12–mm Hex-head Bolts3

(4) 8-32 x 0.62” Phillips Pan Head Screw4

(2) Adjustable Band Clamps 2 to 5 inch (51 to 127 mm) Dia. passing through the bracket slots5

Before you begin

Ensure that you have the following materials before beginning to mount the AP horizontally to a pole:

Table 10: Materials Needed for Mounting the AP using AIR-MNT-HORZ1= Kit

Supplied in the

Kit?

Materials Required

YesWall/Pole Mount L-Bracket

YesSolar Shield

Cisco Catalyst 9124AX Series Outdoor Access Point Hardware Installation Guide

Installation Overview

Pole Mounting the AP with Horizontal Kit
