Cisco Catalyst 9124AX Series User Manual

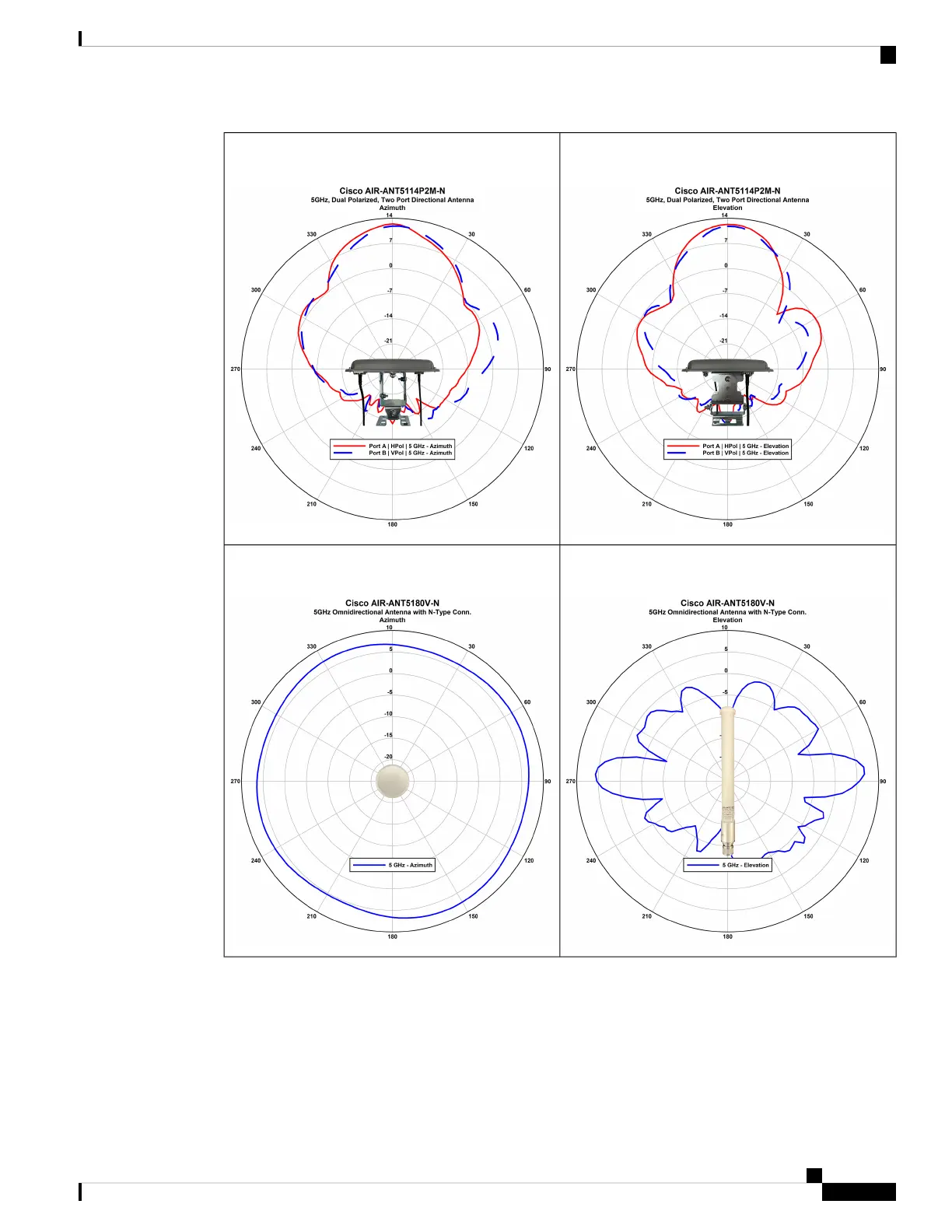

Figure 48: AIR-ANT5114P2M-N: 2-Port 5-GHz Dual Polarized
Directional Antenna Radiation Pattern (Elevation)
Figure 47: AIR-ANT5114P2M-N: 2-Port 5-GHz Dual Polarized
Directional Antenna Radiation Pattern (Azimuth)
Figure 50: AIR-ANT5180V-N: 5–GHz Omnidirectional Antenna
Radiation Pattern (Elevation)
Figure 49: AIR-ANT5180V-N: 5–GHz Omnidirectional Antenna
Radiation Pattern (Azimuth)
Supported External Antennas
The following table shows the external antennas supported by the C9124AXE access point
Cisco Catalyst 9124AX Series Outdoor Access Point Hardware Installation Guide
23
Hardware Features
Supported External Antennas

Cisco Catalyst 9124AX Series Specifications

General

Wi-Fi Standard	Wi-Fi 6 (802.11ax)
Frequency Bands	2.4 GHz, 5 GHz
MIMO	4x4
IP Rating	IP67
Spatial Streams	4
Power Options	802.3at PoE+, DC power adapter
Radios	Dual Radio (2.4 GHz and 5 GHz)
Antenna	Internal
Power over Ethernet	Yes
Mounting	Wall, ceiling, pole
Weight	1.2 kg
Security	WPA3, WPA2, WPA
Management	Cisco DNA Center, CLI, WebUI
Ethernet Ports	1 x 10/100/1000/2500 Multigigabit Ethernet (RJ-45)
Dimensions	220 x 220 x 66 mm
