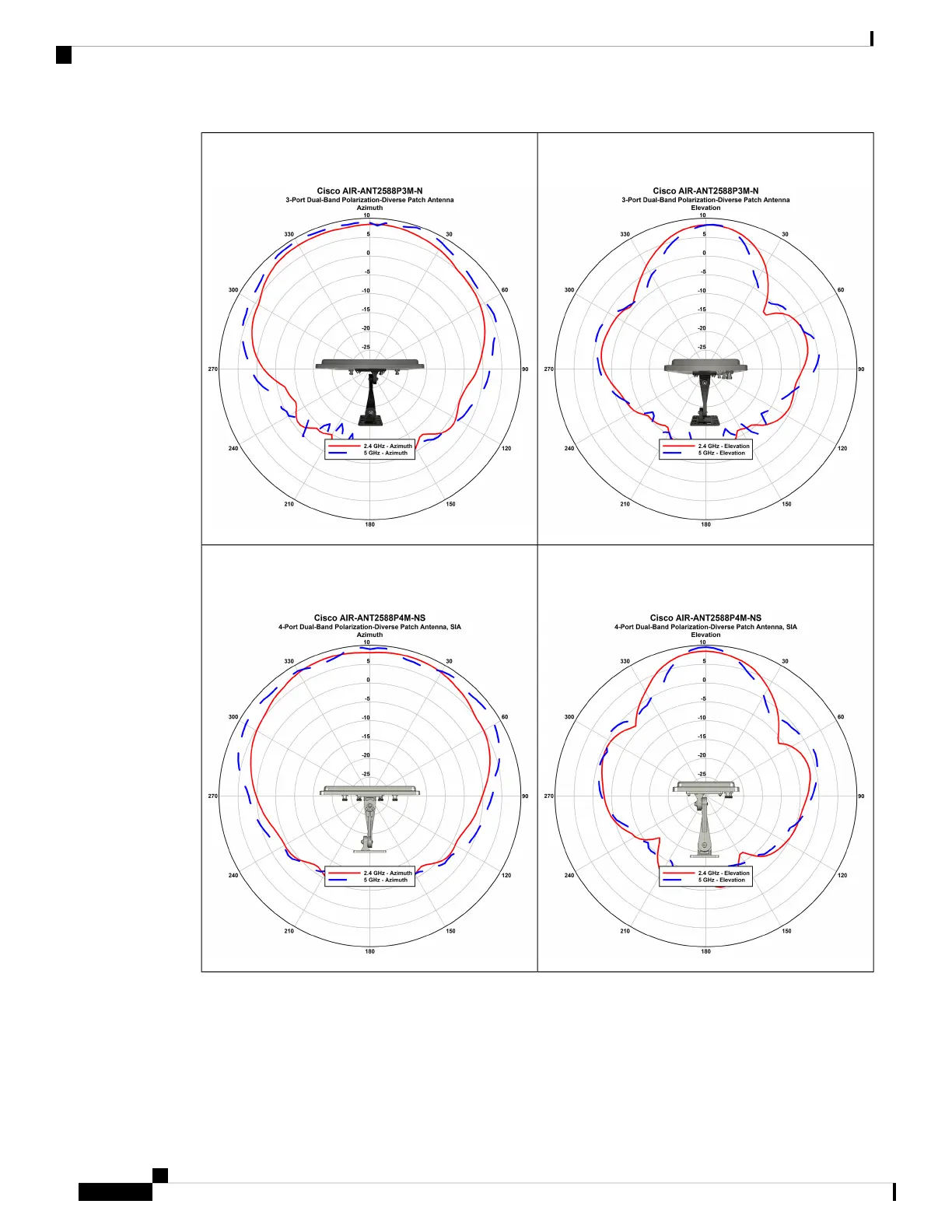

Figure 44: AIR-ANT2588P3M-N: 3-Port Dual-Band
Polarization-Diverse Patch Antenna Radiation Pattern (Elevation)
Figure 43: AIR-ANT2588P3M-N: 3-Port Dual-Band
Polarization-Diverse Patch Antenna Radiation Pattern (Azimuth)
Figure 46: AIR-ANT2588P4M-NS: 4-Port Dual-Band
Polarization-Diverse Patch Antenna, SIA Radiation Pattern
(Elevation)
Figure 45: AIR-ANT2588P4M-NS: 4-Port Dual-Band
Polarization-Diverse Patch Antenna, SIA Radiation Pattern
(Azimuth)
Cisco Catalyst 9124AX Series Outdoor Access Point Hardware Installation Guide
22
Hardware Features
C9124AXE (External Antenna) Model: Antenna Radiation Patterns
