Cisco Catalyst 9124AX Series - Unpacking Your Access Point; Package Contents

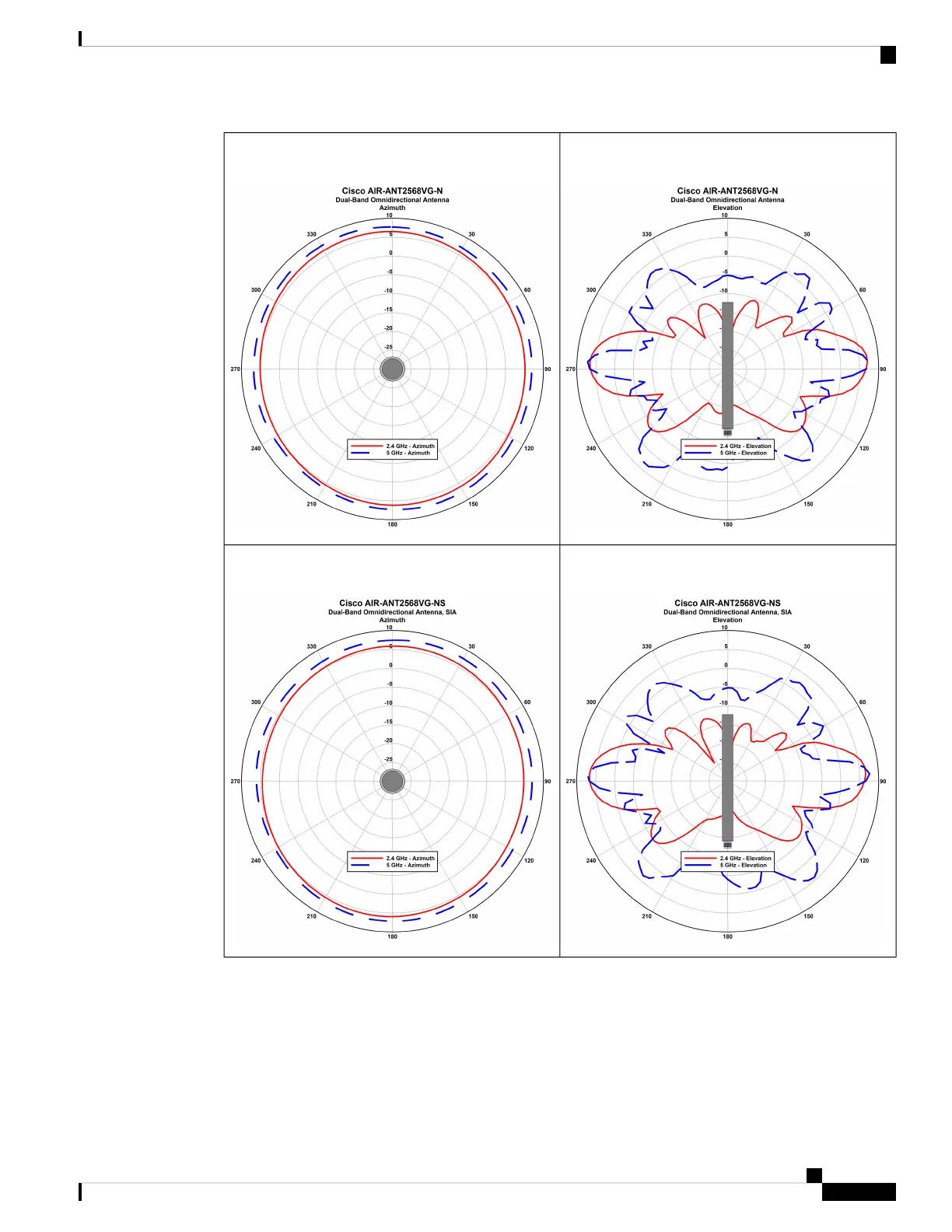

Figure 40: AIR-ANT2568VG-N: Dual-Band Omnidirectional Antenna
Radiation Pattern (Elevation)
Figure 39: AIR-ANT2568VG-N: Dual-Band Omnidirectional Antenna
Radiation Pattern (Azimuth)
Figure 42: AIR-ANT2568VG-NS: Dual-Band Omnidirectional Antenna
Radiation Pattern (Elevation)
Figure 41: AIR-ANT2568VG-NS: Dual-Band Omnidirectional Antenna
Radiation Pattern (Azimuth)
Cisco Catalyst 9124AX Series Outdoor Access Point Hardware Installation Guide
21
Hardware Features
C9124AXE (External Antenna) Model: Antenna Radiation Patterns
