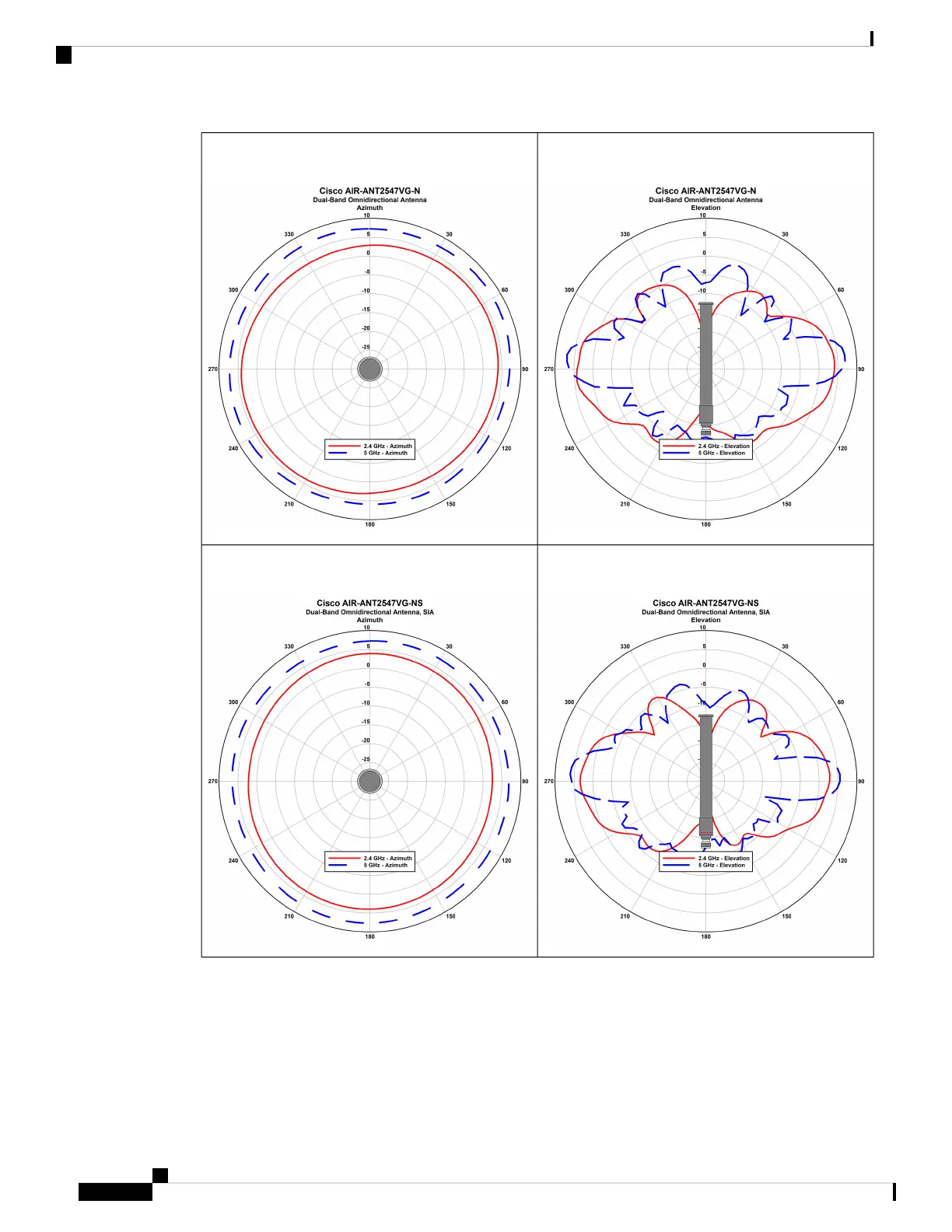

Figure 36: AIR-ANT2547VG-N: Dual-Band Omnidirectional Antenna
Radiation Pattern (Elevation)
Figure 35: AIR-ANT2547VG-N: Dual-Band Omnidirectional Antenna
Radiation Pattern (Azimuth)
Figure 38: AIR-ANT2547VG-NS: Dual-Band Omnidirectional Antenna
Radiation Pattern (Elevation)
Figure 37: AIR-ANT2547VG-NS: Dual-Band Omnidirectional Antenna
Radiation Pattern (Azimuth)
Cisco Catalyst 9124AX Series Outdoor Access Point Hardware Installation Guide
20
Hardware Features
C9124AXE (External Antenna) Model: Antenna Radiation Patterns
