Cisco Catalyst 9124AX Series User Manual

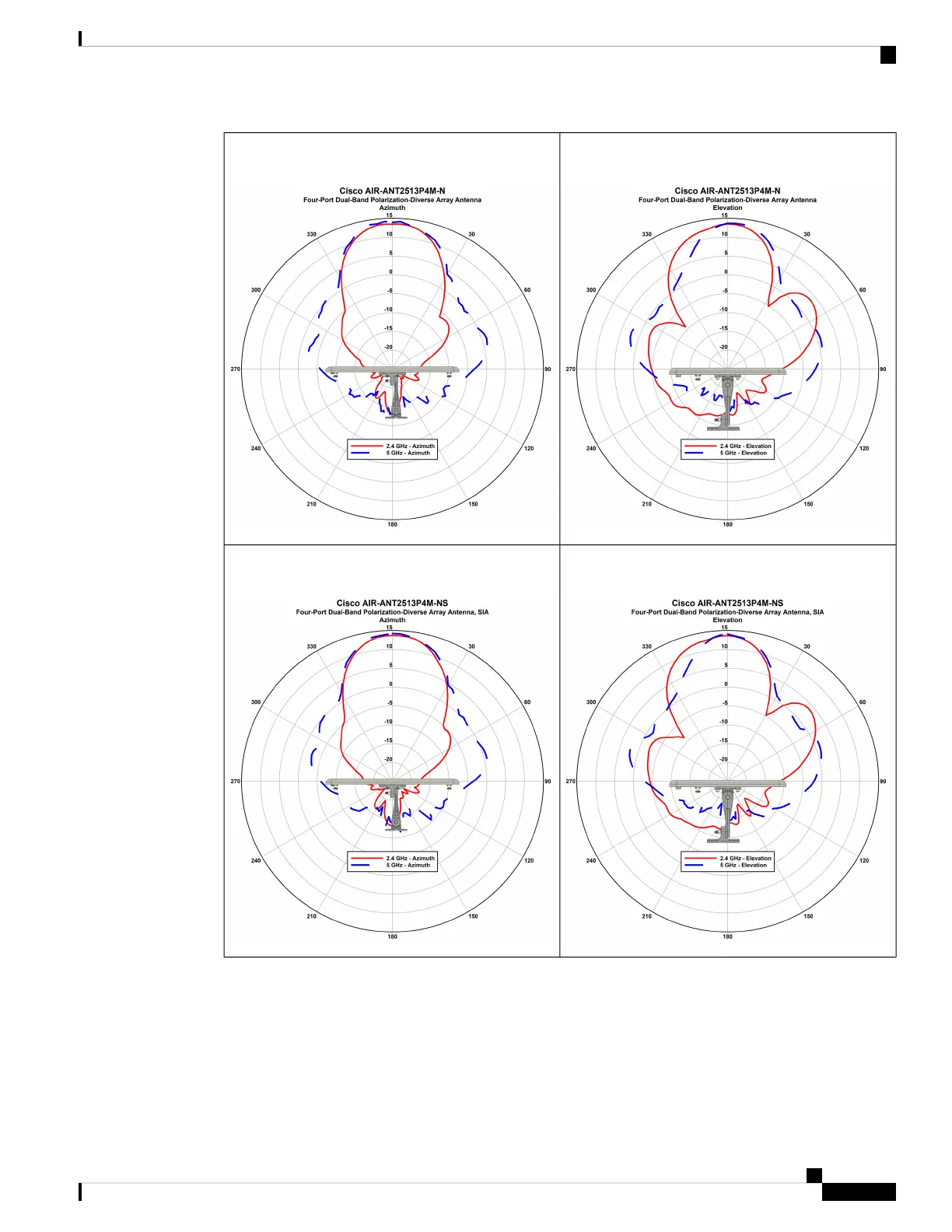

Figure 32: AIR-ANT2513P4M-N: Four-Port Dual-Band Polarization
Diverse-Array Antenna Radiation Pattern (Elevation)
Figure 31: AIR-ANT2513P4M-N: Four-Port Dual-Band Polarization
Diverse-Array Radiation Pattern (Azimuth)
Figure 34: AIR-ANT2513P4M-NS: Four-Port Dual-Band Polarization
Diverse-Array Antenna SIA Radiation Pattern (Elevation)
Figure 33: AIR-ANT2513P4M-NS: Four-Port Dual-Band Polarization
Diverse-Array Antenna SIA Radiation Pattern (Azimuth)
Cisco Catalyst 9124AX Series Outdoor Access Point Hardware Installation Guide
19
Hardware Features
C9124AXE (External Antenna) Model: Antenna Radiation Patterns

Cisco Catalyst 9124AX Series Specifications

General

Wi-Fi Standard	Wi-Fi 6 (802.11ax)
Frequency Bands	2.4 GHz, 5 GHz
MIMO	4x4
IP Rating	IP67
Spatial Streams	4
Power Options	802.3at PoE+, DC power adapter
Radios	Dual Radio (2.4 GHz and 5 GHz)
Antenna	Internal
Power over Ethernet	Yes
Mounting	Wall, ceiling, pole
Weight	1.2 kg
Security	WPA3, WPA2, WPA
Management	Cisco DNA Center, CLI, WebUI
Ethernet Ports	1 x 10/100/1000/2500 Multigigabit Ethernet (RJ-45)
Dimensions	220 x 220 x 66 mm
