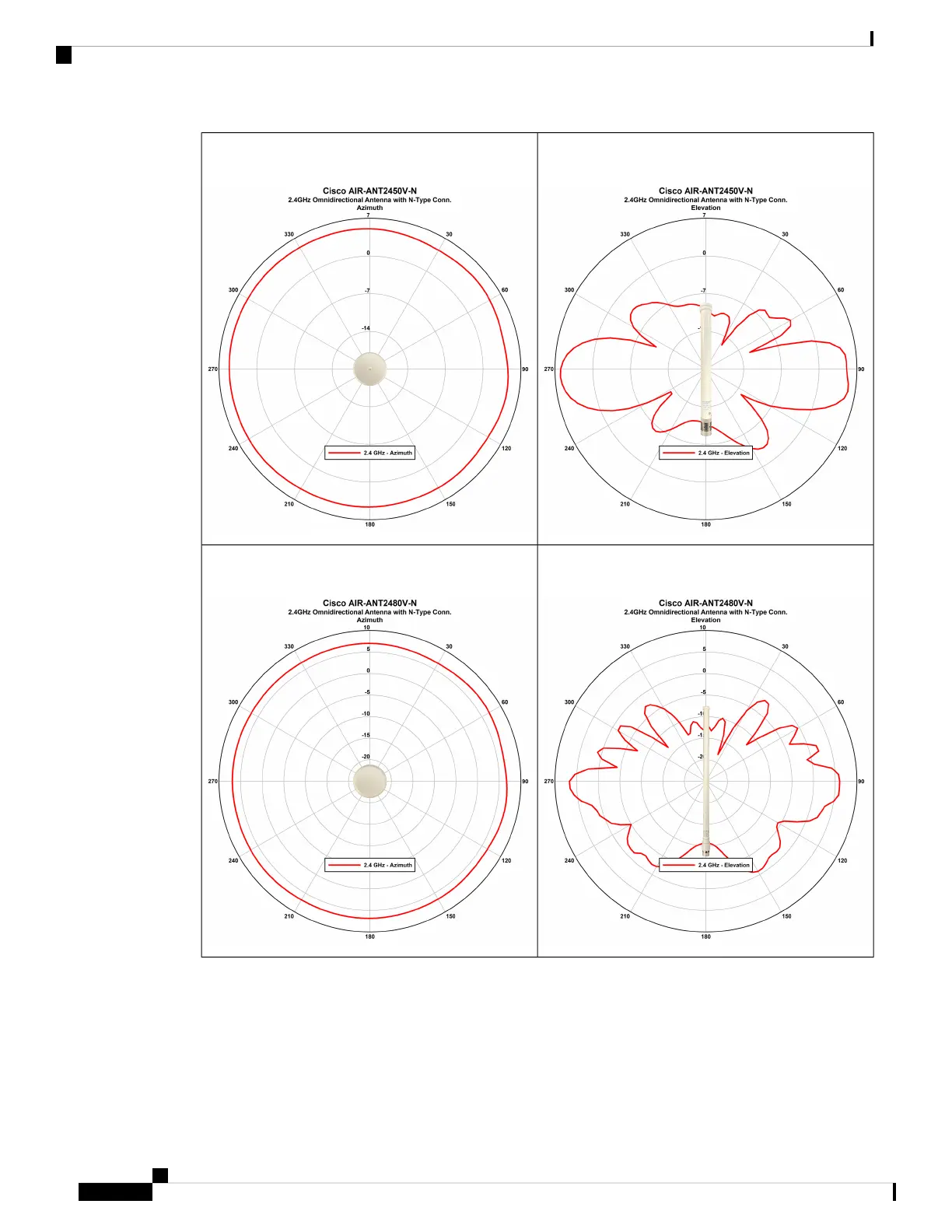

Figure 28: AIR-ANT2450V-N: 2.4–GHz Omnidirectional Antenna
Radiation Pattern (Elevation)
Figure 27: AIR-ANT2450V-N: 2.4–GHz Omnidirectional Antenna
Radiation Pattern (Azimuth)
Figure 30: AIR-ANT2480V-N: 2.4–GHz Omnidirectional Antenna
Radiation Pattern (Elevation)
Figure 29: AIR-ANT2480V-N: 2.4–GHz Omnidirectional Antenna
Radiation Pattern (Azimuth)
Cisco Catalyst 9124AX Series Outdoor Access Point Hardware Installation Guide
18
Hardware Features
C9124AXE (External Antenna) Model: Antenna Radiation Patterns
