Cisco Catalyst 9124AX Series User Manual

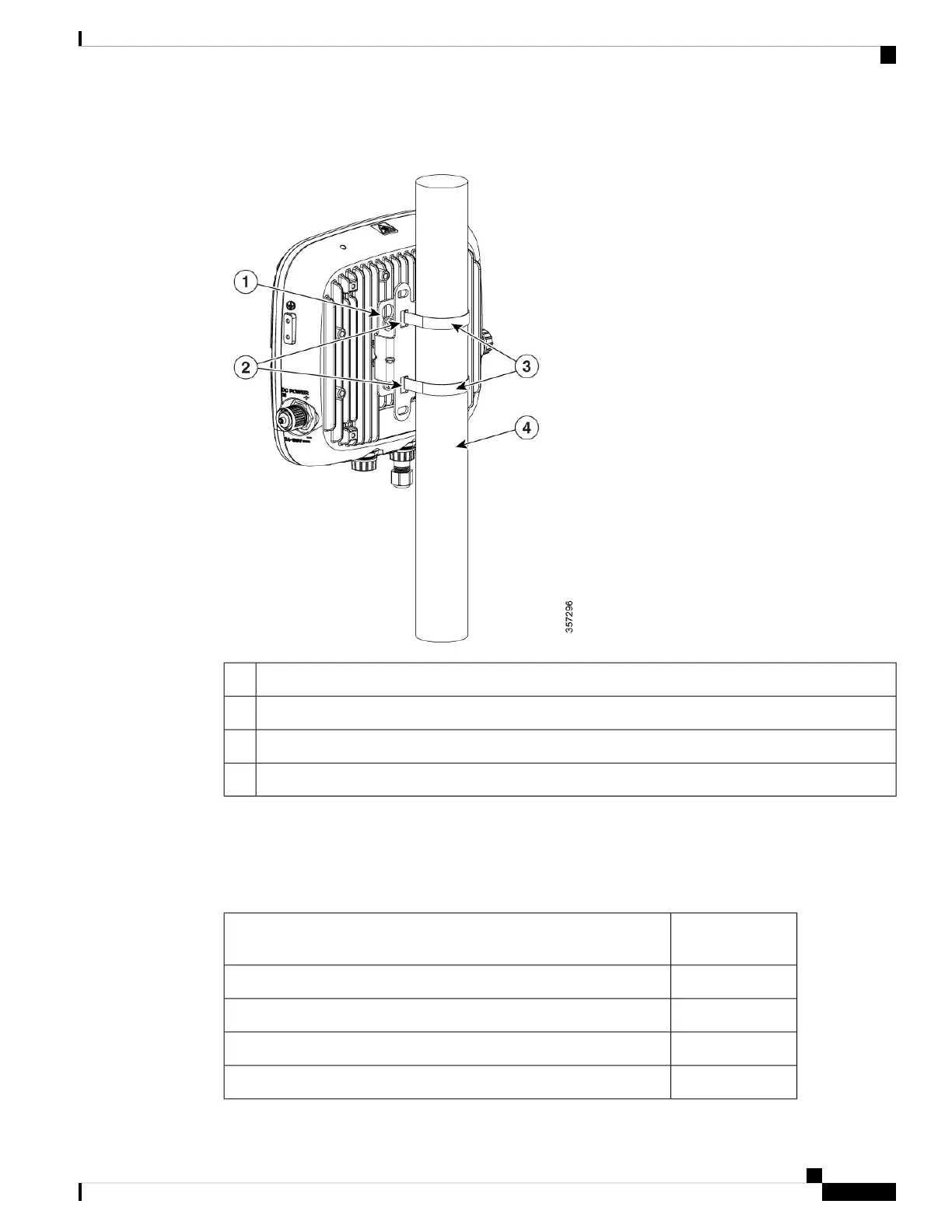

Figure 55: AP Mounted on a Pole
One of four M6 keyhole slots for mounting the AP on the bracket.1
Top and bottom sets of band clamp slots for passing the clamps through.2
Top and bottom steel band clamps3
Pole (wood, metal, or fiberglass), 2 to 5 inch (51 to 127mm) diameter4
Before you begin
Ensure that you have the following materials before beginning to mount the AP to a pole:
Table 4: Materials Needed to Mount the AP on a Vertical Pole using AIR-MNT-VERT1= Kit
Supplied in the
Kit?
Materials Required
YesOne wall mount bracket
YesFour M6 x12 mm hex head bolts
YesTwo stainless steel band clamps (adjustable 2 to 5 inch (51 to 127 mm)
No10–mm box-end wrench
Cisco Catalyst 9124AX Series Outdoor Access Point Hardware Installation Guide
43
Installation Overview
Vertically Mounting the AP to a Pole

Cisco Catalyst 9124AX Series Specifications

General

Wi-Fi Standard	Wi-Fi 6 (802.11ax)
Frequency Bands	2.4 GHz, 5 GHz
MIMO	4x4
IP Rating	IP67
Spatial Streams	4
Power Options	802.3at PoE+, DC power adapter
Radios	Dual Radio (2.4 GHz and 5 GHz)
Antenna	Internal
Power over Ethernet	Yes
Mounting	Wall, ceiling, pole
Weight	1.2 kg
Security	WPA3, WPA2, WPA
Management	Cisco DNA Center, CLI, WebUI
Ethernet Ports	1 x 10/100/1000/2500 Multigigabit Ethernet (RJ-45)
Dimensions	220 x 220 x 66 mm
