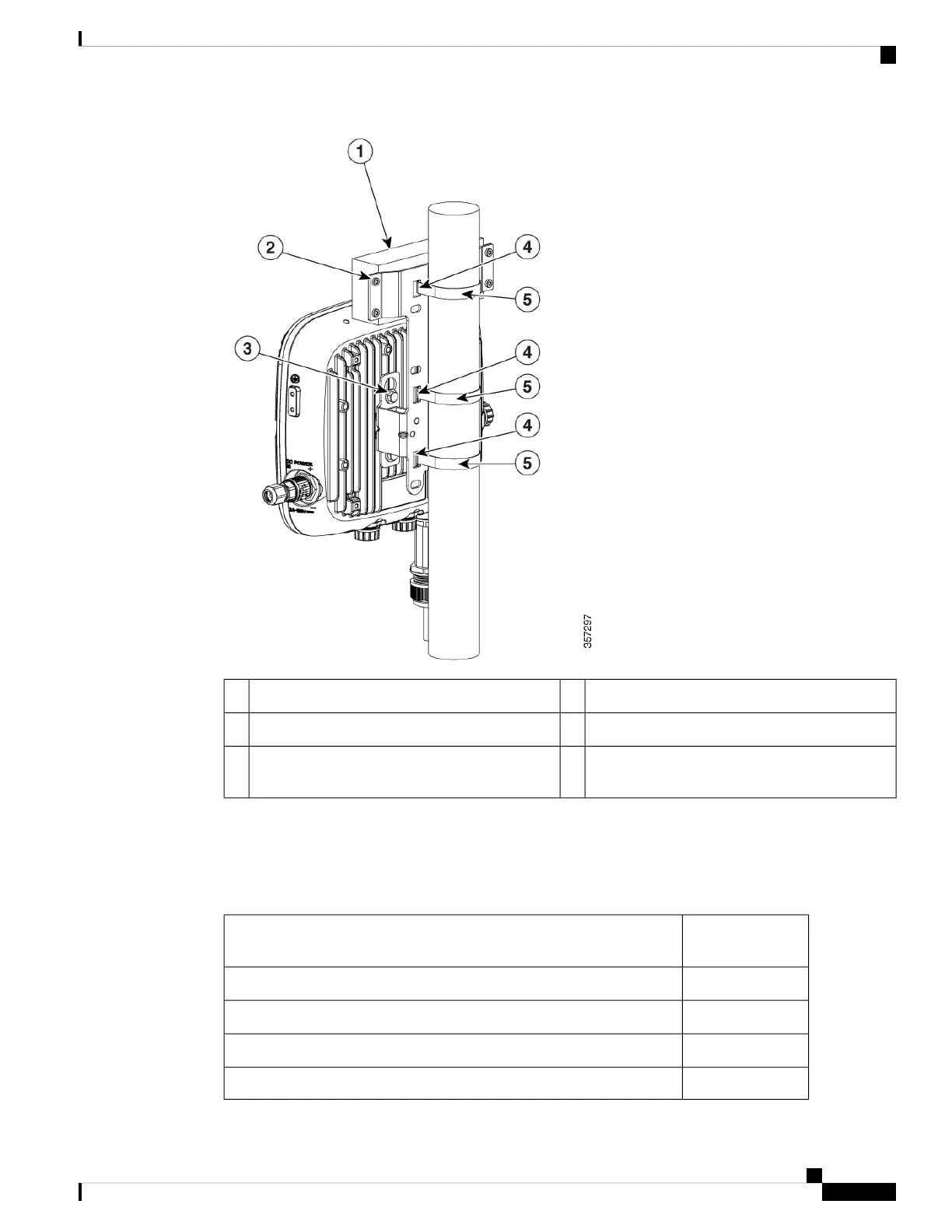

Band clamp slots for passing the clamps through.4Power supply1
Steel band clamps.5Screw holes for four #8-32 screws.2
One of four M6 keyhole slots for mounting the
AP on the bracket.
3
Before you begin
Ensure that you have the following materials before beginning to mount the AP to a pole:
Table 6: Materials Needed to Mount the AP using AIR-MNT-VERT2= Kit
Supplied in the
Kit?
Materials Needed
YesOne wall mount bracket
YesFour M6 x12 mm hex head bolts
YesFour #8-32 screws to mount the power supply
YesThree stainless steel band clamps (adjustable 2 to 5 inch (51 to 127 mm)
Cisco Catalyst 9124AX Series Outdoor Access Point Hardware Installation Guide
47
Installation Overview
Vertically Mounting the AP with DC Supply to a Pole

Cisco Catalyst 9124AX Series Specifications

General

Wi-Fi Standard	Wi-Fi 6 (802.11ax)
Frequency Bands	2.4 GHz, 5 GHz
MIMO	4x4
IP Rating	IP67
Spatial Streams	4
Power Options	802.3at PoE+, DC power adapter
Radios	Dual Radio (2.4 GHz and 5 GHz)
Antenna	Internal
Power over Ethernet	Yes
Mounting	Wall, ceiling, pole
Weight	1.2 kg
Security	WPA3, WPA2, WPA
Management	Cisco DNA Center, CLI, WebUI
Ethernet Ports	1 x 10/100/1000/2500 Multigigabit Ethernet (RJ-45)
Dimensions	220 x 220 x 66 mm
