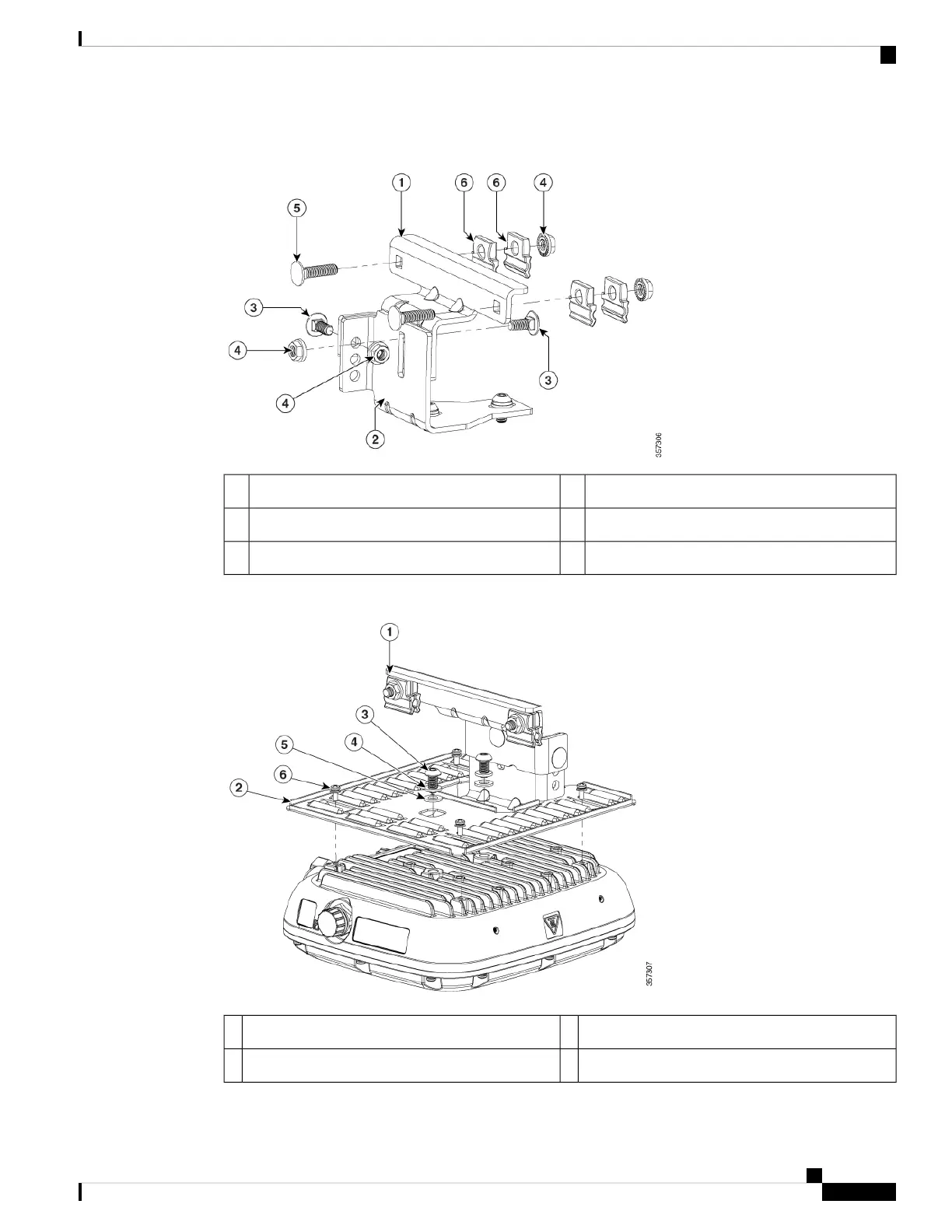

Figure 69: Assembling the cable bracket and Clamps
5/16-18 Hex Nut with Serrated flange4SMK Upper Bracket1
5/16-18 x 1.25 inchBolt5SMK Lower Bracket2
Cable Clamp65/16-18 x 0.75” Bolt3
Figure 70: Assembling the AP to the SMK and Solar Shield
M8 split lock washer4SMK Bracket Assembly1
M8 flat washer5Solar Shield2
Cisco Catalyst 9124AX Series Outdoor Access Point Hardware Installation Guide
