Step 4
Connect to a power source.
•
To connect the assembly which uses flexible mount with direct-wired junction box
(CDB-MNT-FLEX-DIR) to a power source, use an armored cable. See Electrical Installation section.
CDB-MNT-FLEX-DIR accepts 100V – 277V AC Input.
•
To connect the assembly which uses flexible mount with IEC C14 power junction box
(CDB-MNT-FLEX-C14) to a power source, use country-specific power cord.
CDB-MNT-FLEX-C14 accepts 100V – 240V AC Input.
Step 5
Slide the switch into the flexible mount in a front mounting position.
Catalyst Digital Building Series Switch Hardware Installation Guide
48
Switch Installation

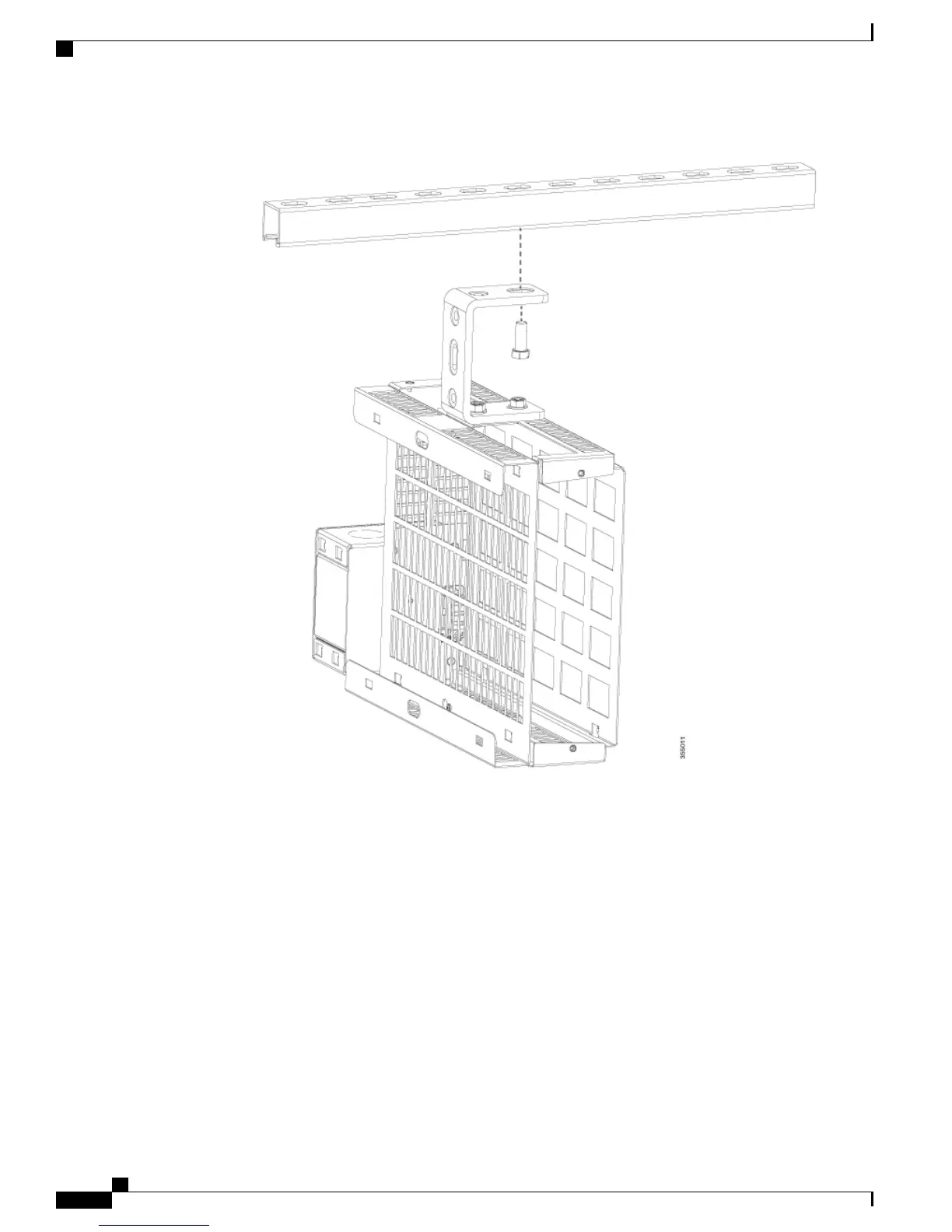

Flexible Mounting
