Cisco Explorer Series - Adding an HDD Test Server to the BFS

Appendix D
Adding an HDD Test Server to the BFS
150 734375 Rev H
Adding an HDD Test Server to the BFS
Note: This procedure can be used for systems that support multiple sites (RCS-
enabled) or single sites.
1 On the DNCS Administrative Console, select the Application Interface Modules
tab.
2 Click BFS Admin. Choose one of the following options:
 For single-site systems, the Site DNCS BFS Administration window opens.
Click File > All Sites.
 For multiple-site (RCS-enabled) systems, the Please Select a Site window
opens.
3 Select the Servers tab.
4 Click File > New. The Authorize BFS Server window opens.
5 Enter the following data into the fields of the Authorize BFS Server window:
 In the Server Name field, enter hddtest.
 From the Available Sources list, select Out of Band.
 Click Add.

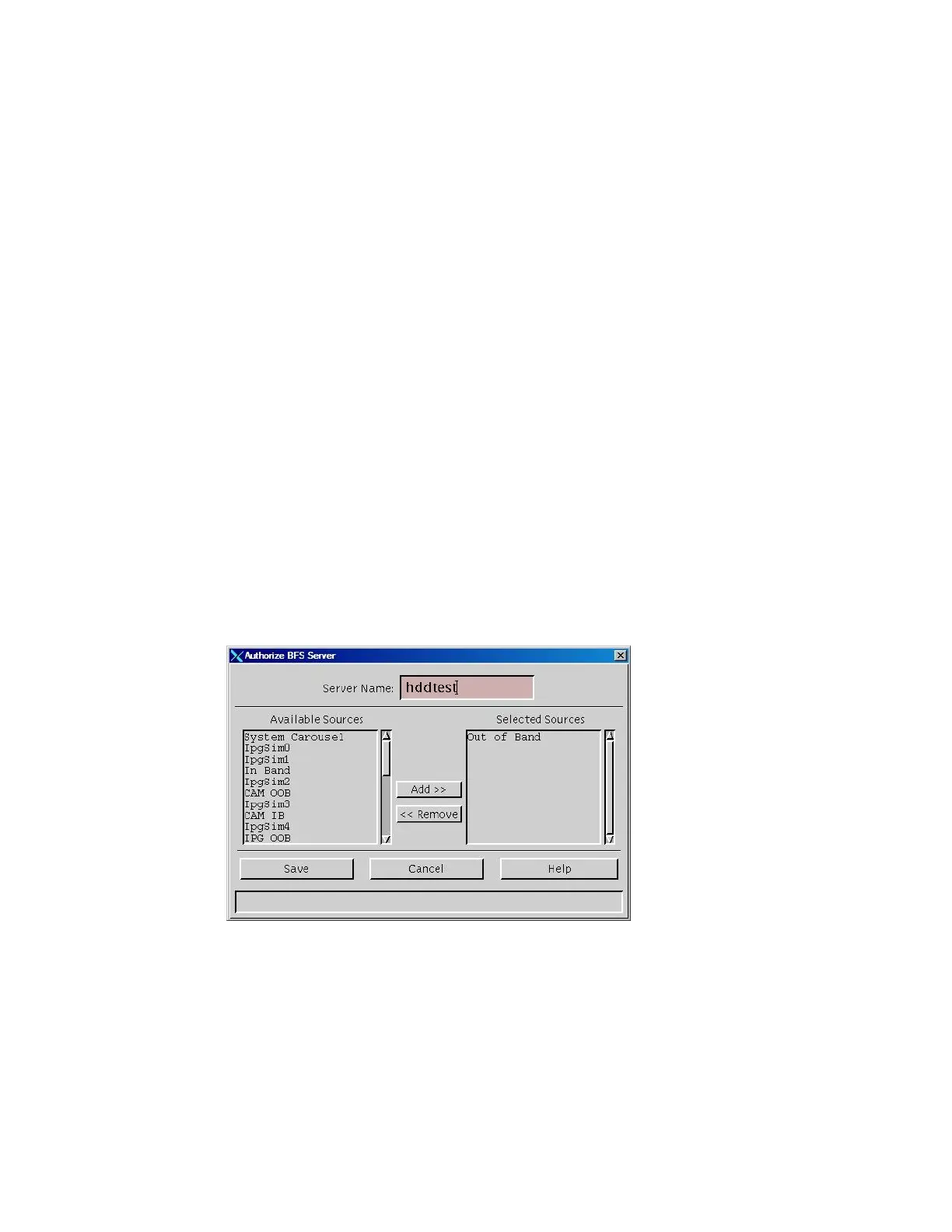

Result: The Authorize BFS Server window is configured as shown in the
following example.
