Staging CableCARD Modules

734375 Rev H 83

Staging with Billing Action Process

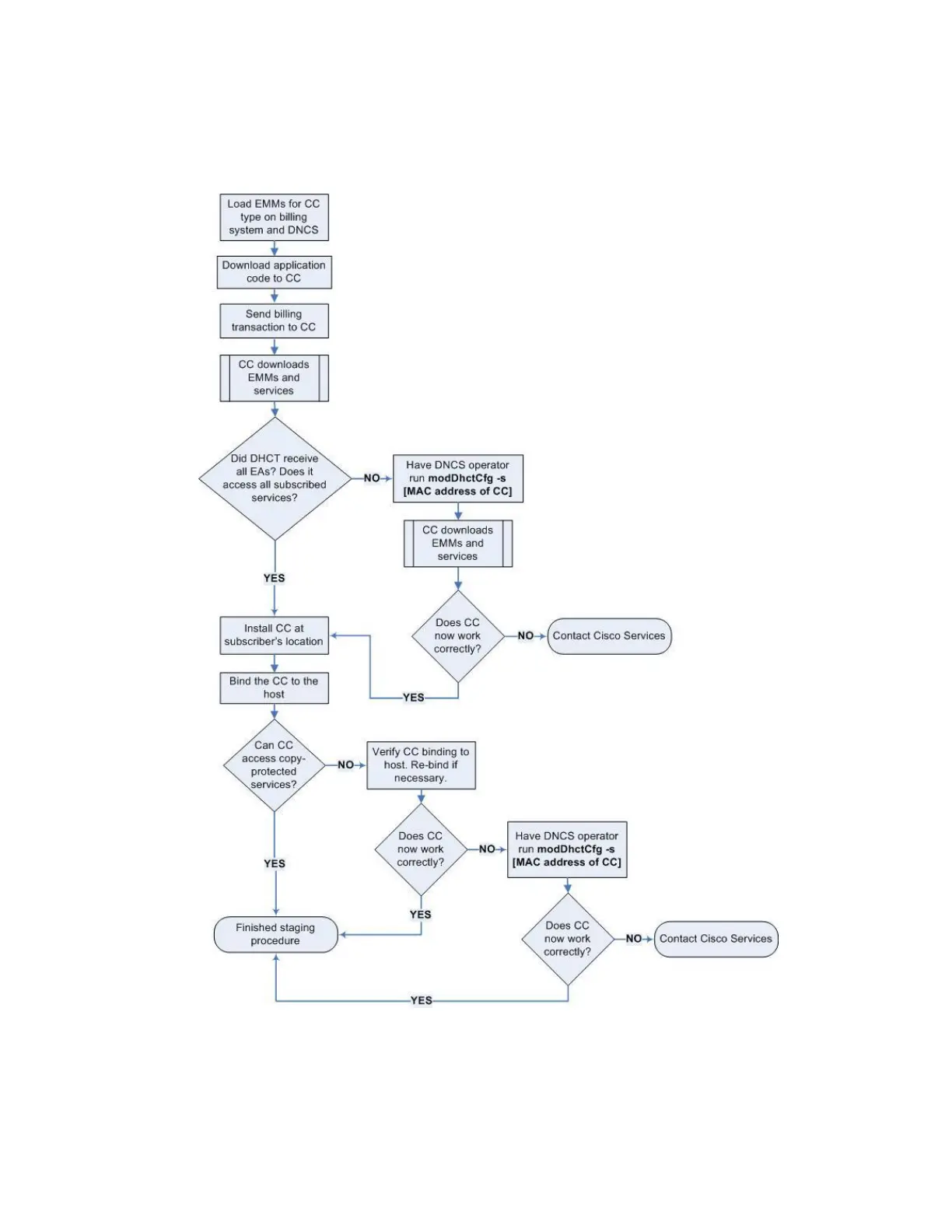

The following flowchart illustrates the staging process for CableCARD (CC)

modules when you must set up your billing system with billing actions.
