The TELs are made of a special thin gauge vinyl with
self-adhesive backing. Once the CO attaches them on the chassis,
any attempt to open the chassis damages the TELs or the chassis
cover. Because the TELs have nonrepeated serial numbers, the
CO can inspect them for damage and compare them against the
applied serial numbers to verify whether the chassis has been
tampered with. TELs with curled corners, rips, and slices indicate
tampering. The word “FIPS” or “OPEN” may appear if the label
has been peeled back.
Note
Step 1 Copy the serial number and store in a secure place.
Step 2 If the chassis is mounted on a wall, uninstall it by following Steps 9-10 in Wall-Mount the Chassis, on page 28.
Step 3 Install the FIPS cover by holding the chassis right-side up and sliding the chassis into the FIPS cover front panel first.

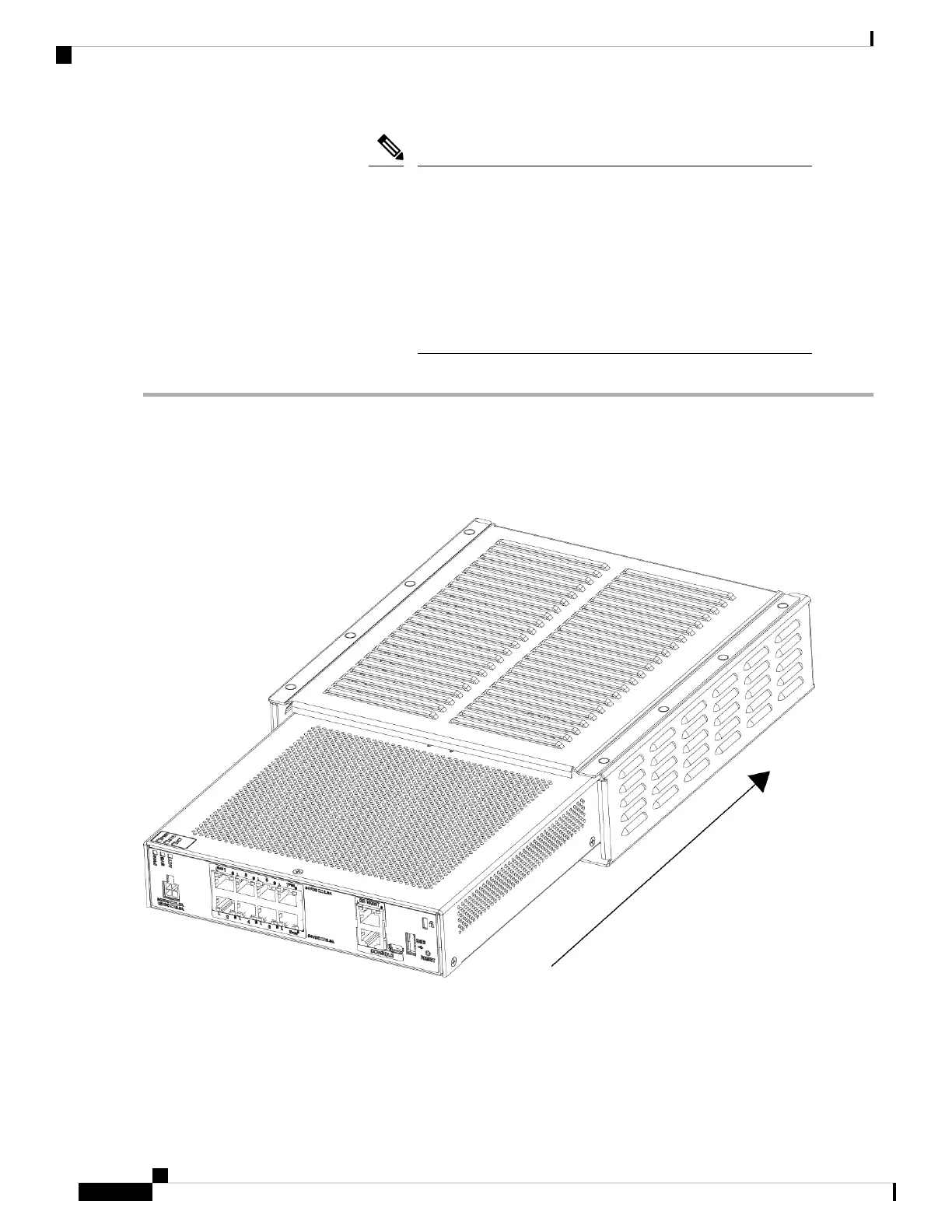

Figure 35: Install Chassis into FIPS Cover
Step 4 Turn the chassis with the FIPS cover installed over and install the three screws.
Cisco Firepower 1010 Hardware Installation Guide
42
Installation, Maintenance, and Upgrade
Install the FIPS Opacity Shield

Other manuals for Cisco Firepower 1010

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Cisco Firepower 1010 and is the answer not in the manual?

Cisco Firepower 1010 Specifications

General IconGeneral
VPN Throughput500 Mbps
Concurrent Sessions100, 000
Maximum Concurrent Sessions200, 000
Ports8 x 1 GE
Humidity10% to 90% non-condensing
Form FactorDesktop
Flash Memory8 GB
Interfaces8 x RJ-45
Power SupplyInternal
Dimensions (H x W x D)4.44 x 21.59 x 17.27 cm
Operating Temperature32°F to 104°F (0°C to 40°C)
Storage Temperature-20 to 70°C
Memory4 GB
