• If you want to change the connection settings, but keep the
current configuration, change the settings as shown in
“General settings” (page 59).
If the Cisco FM1200 Volo is in Provisioning Mode:
• The RACER™ dialog will be shown (Figure 17 (page 52)).

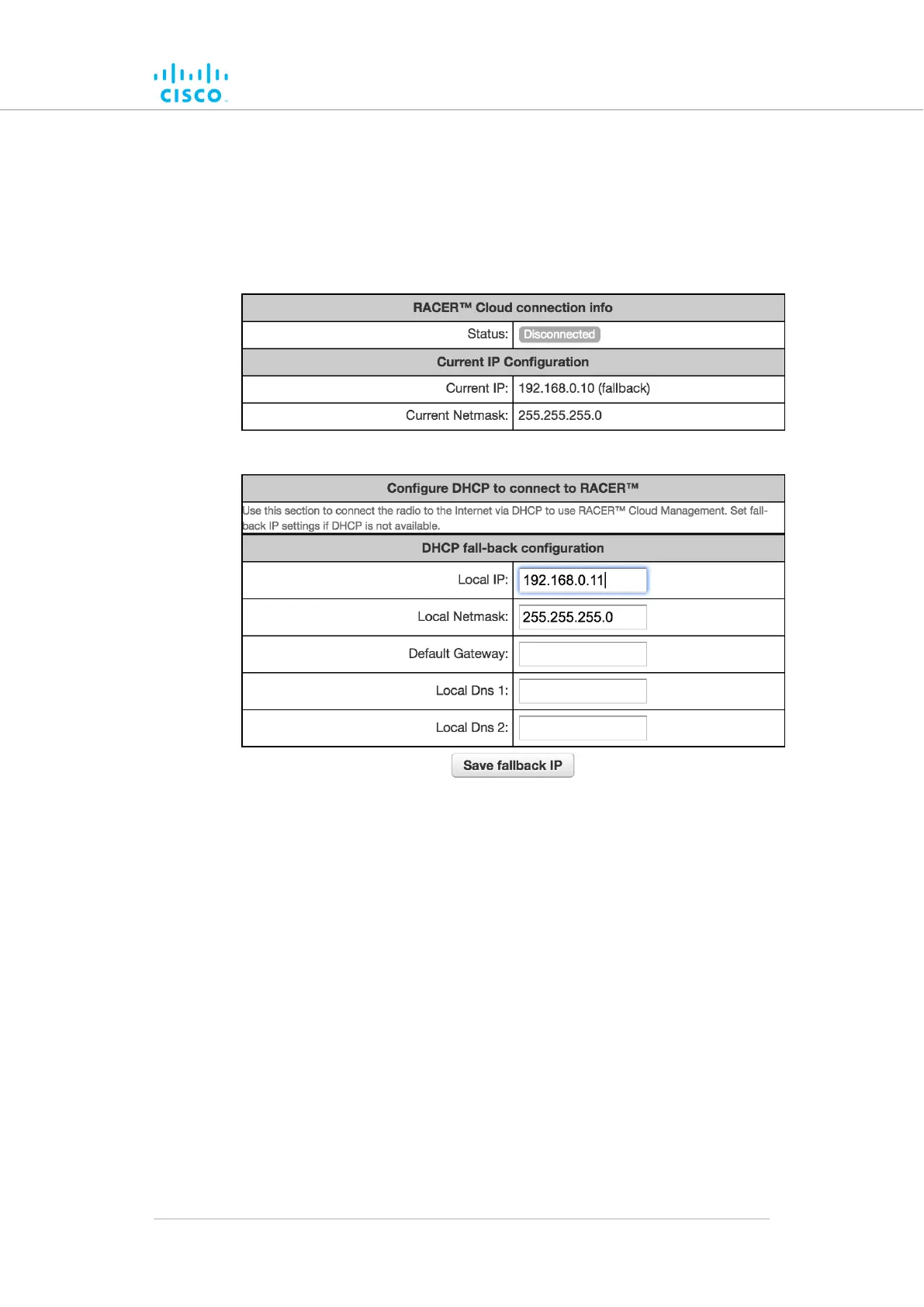

Figure 17. FM Racer dialog
• The unit’s Local IP address will be set to 169.254.a.b, where a and
b are the last two parts of the unit's unique unit identification (ID)
number. For example, if the unit ID number is 5.12.34.56, the unit's
IP address will be set as 169.254.34.56.
• The unit can also be reached using the DHCP fallback IP address
(192.168.0.10/24).
• The unit’s Status and link/boot LEDs will blink continuously from left
to right (green-green-orange-red), then from right to left (red-
orange-green-green). The LEDs will repeat this cycle until the unit
either enters a Fallback condition, or enters Online or Offline
mode.
• The unit will attempt to connect to the internet using DHCP.
Device configuration using the configurator interface
