Switch Installation
Installing the Switch

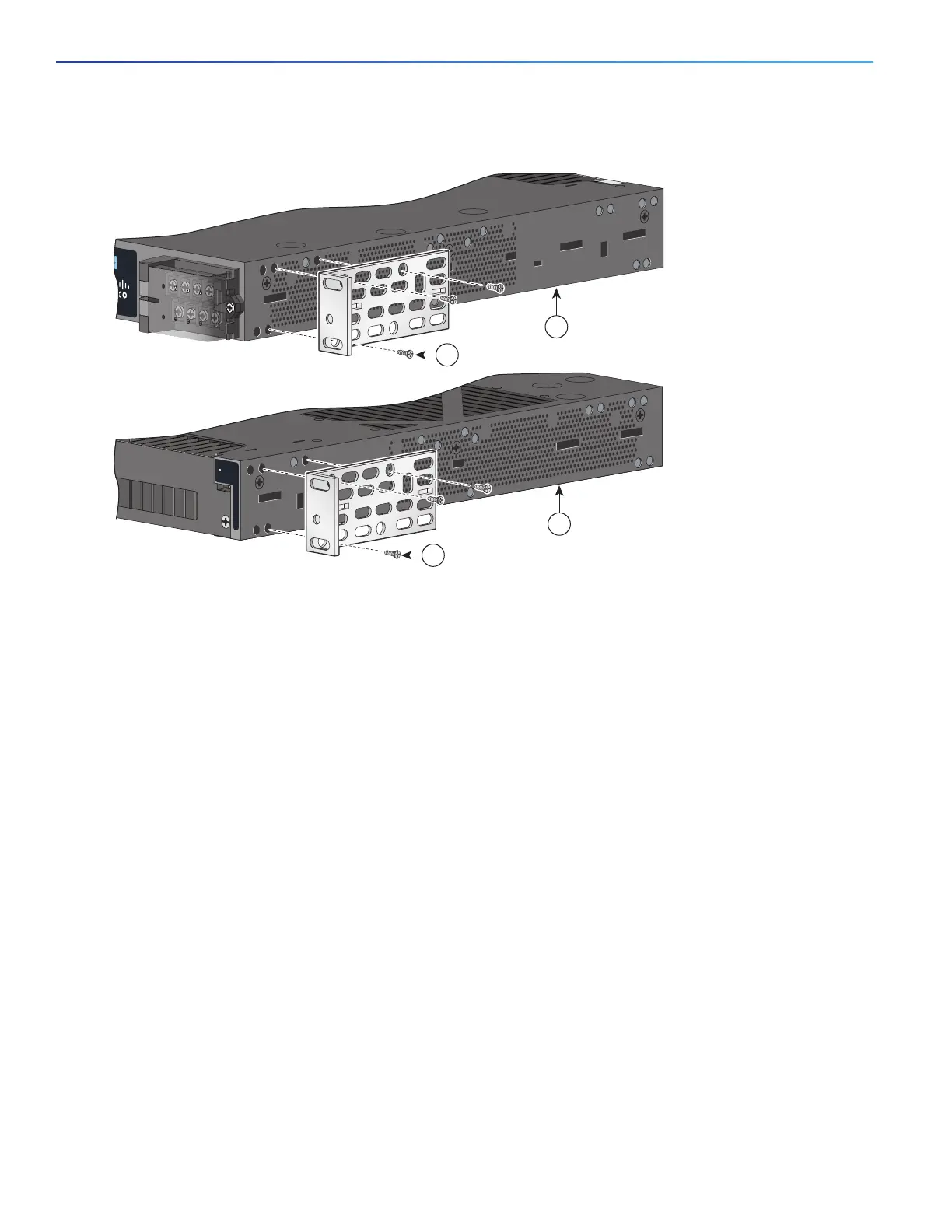

Figure 16 Attaching Brackets for 19-Inch Racks
Note: For IP-30 compliance: If you use 23-inch brackets or ETSI brackets, you can insert the rubber plugs in the same
holes as shown in Figure 13 on page 23 or Figure 14 on page 24 before installing the brackets.
1 Phillips flat-head screws 3 Power-supply-side mounting position
2 Cable-side-mounting position
Cisco CGS 2520
PSU2
2
255751
3
1
1
